Kubota U55 C91000 TPSS VALVE Parts Diagram
Exploded-view parts diagram "C91000 TPSS VALVE" for the Kubota U55. 18 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE, TPSS RD458-62700 | 1 | $1,065.13 | |||
| 011 | SHAFT RD458-96140 | 1 | $857.60 | |||
| 012 | WASHER RD458-96150 | 1 | $51.01 | |||
| 013 | PIN RD458-96160 | 1 | $149.02 | |||
| 014 | CLIP, CIR RD458-96170 | 1 | $13.05 | |||
| 015 | SEAL, OIL RD458-96180 | 1 | $177.07 | |||
| 016 | O-Ring Seal 04816-00260 | 1 | $2.50 | |||
| 017 | O RING 04816-00320 | 1 | $4.15 | |||
| 020 | BOLT 01120-51020 01123-51020 | 1 | $1.48 | |||
| 030 | BRACKET (TPSS) RD558-96820 | 1 | $179.04 | |||
| 040 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 050 | JOINT, PIPE (G-G RC441-63250 | 1 | $55.47 | |||
| 060 | JOINT, PIPE RC411-63880 | 1 | $39.22 | |||
| 070 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 080 | JOINT,PIPE RC448-61970 RP821-61970 | 1 | $36.97 | |||
| 100 | ADAPTER * 68499-83730 68728-76150 | 1 | $24.41 | |||
| 140 | JOINT RD451-63920 RB411-63760 | 1 | $34.61 | |||
| 160 | JOINT RP821-61980 | 1 | $34.61 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-C82000-86349 C82000 ANGLE CHANGE VALVE
View Diagram -

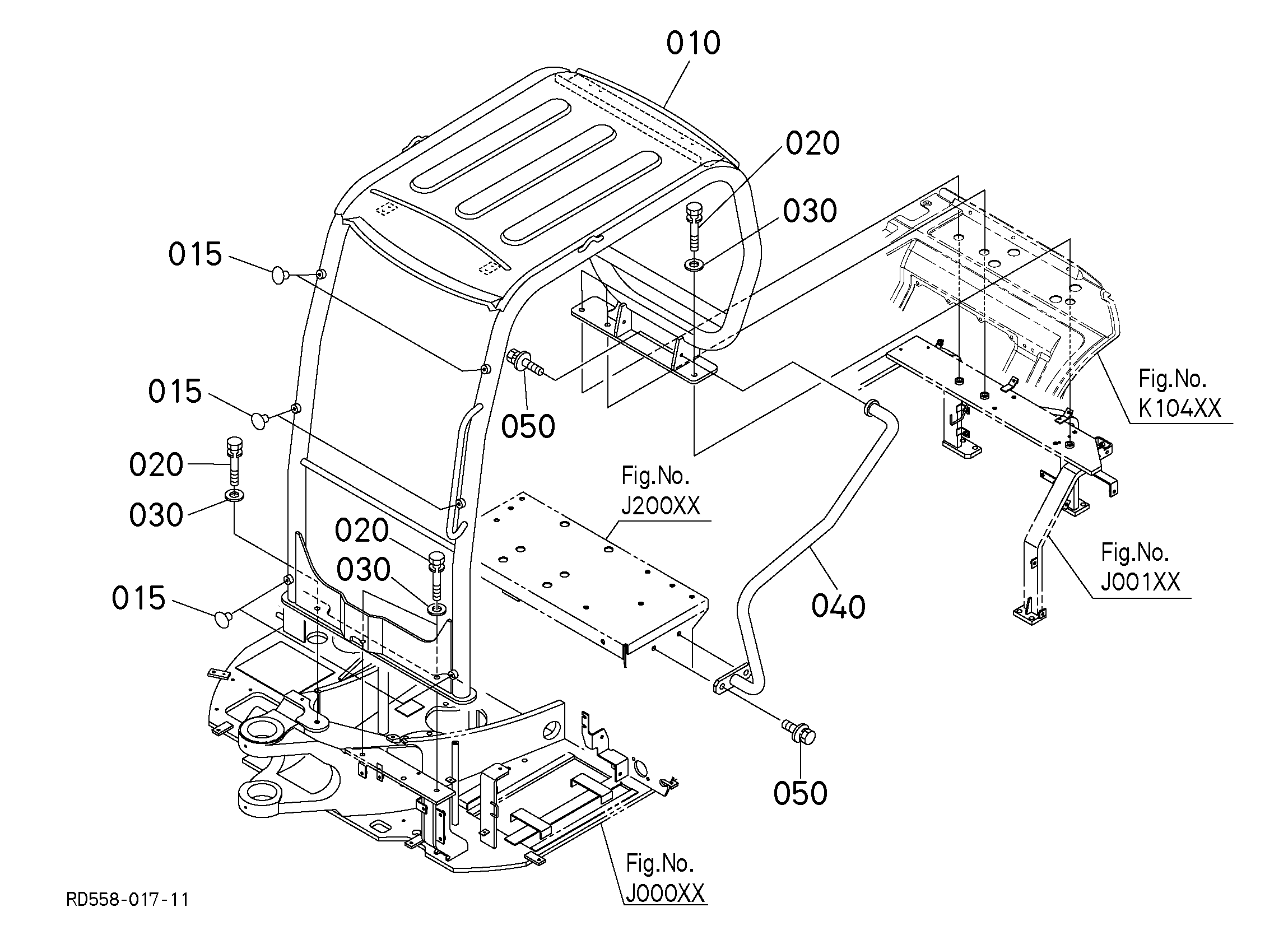

DIAG-L00000-86349 L00000 CANOPY
View Diagram -

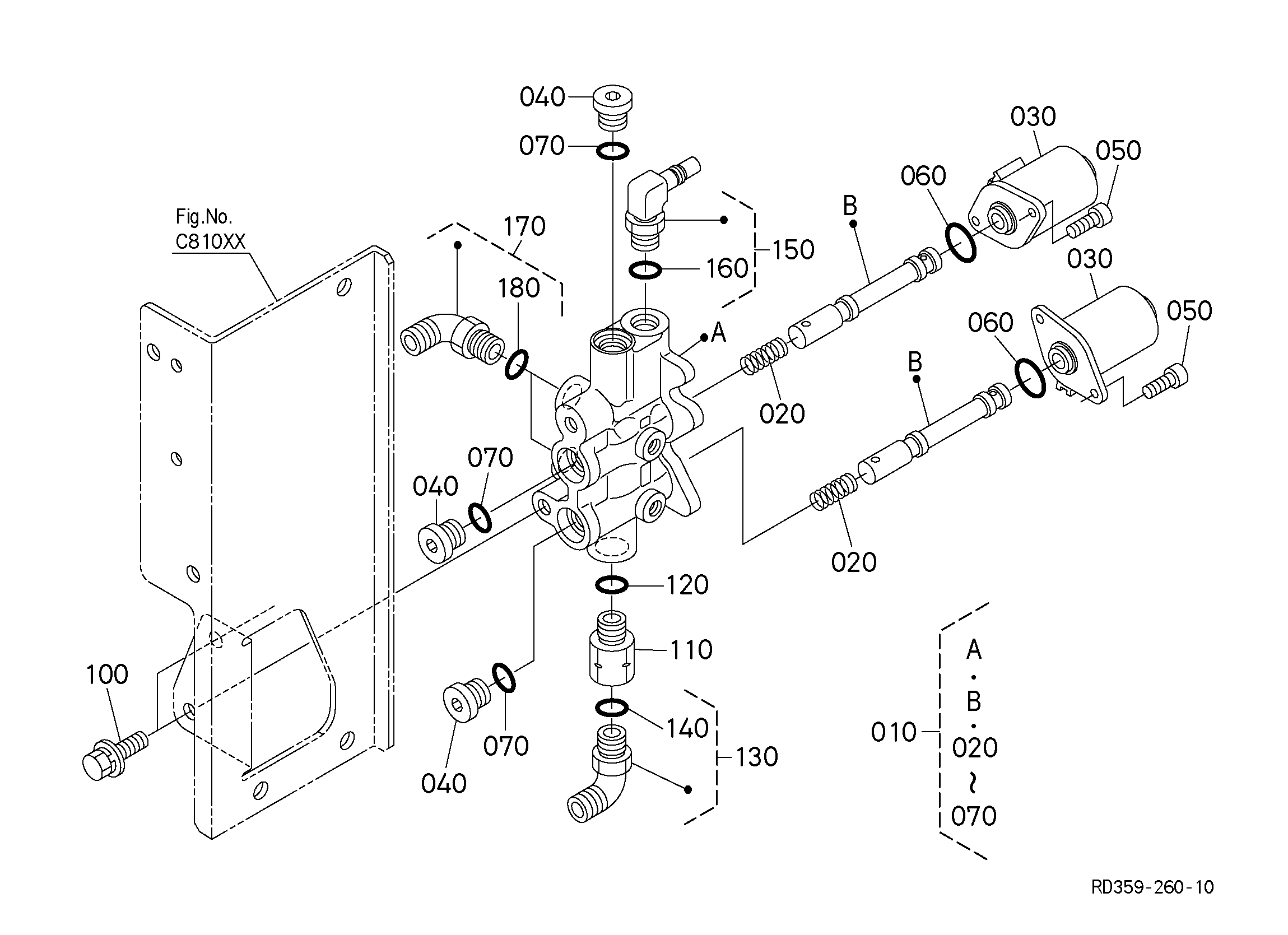

DIAG-C81002-86349 C81002 S/P SOLENOID VALVE
