Kubota U10-5 C91000 TPSS VALVE Parts Diagram

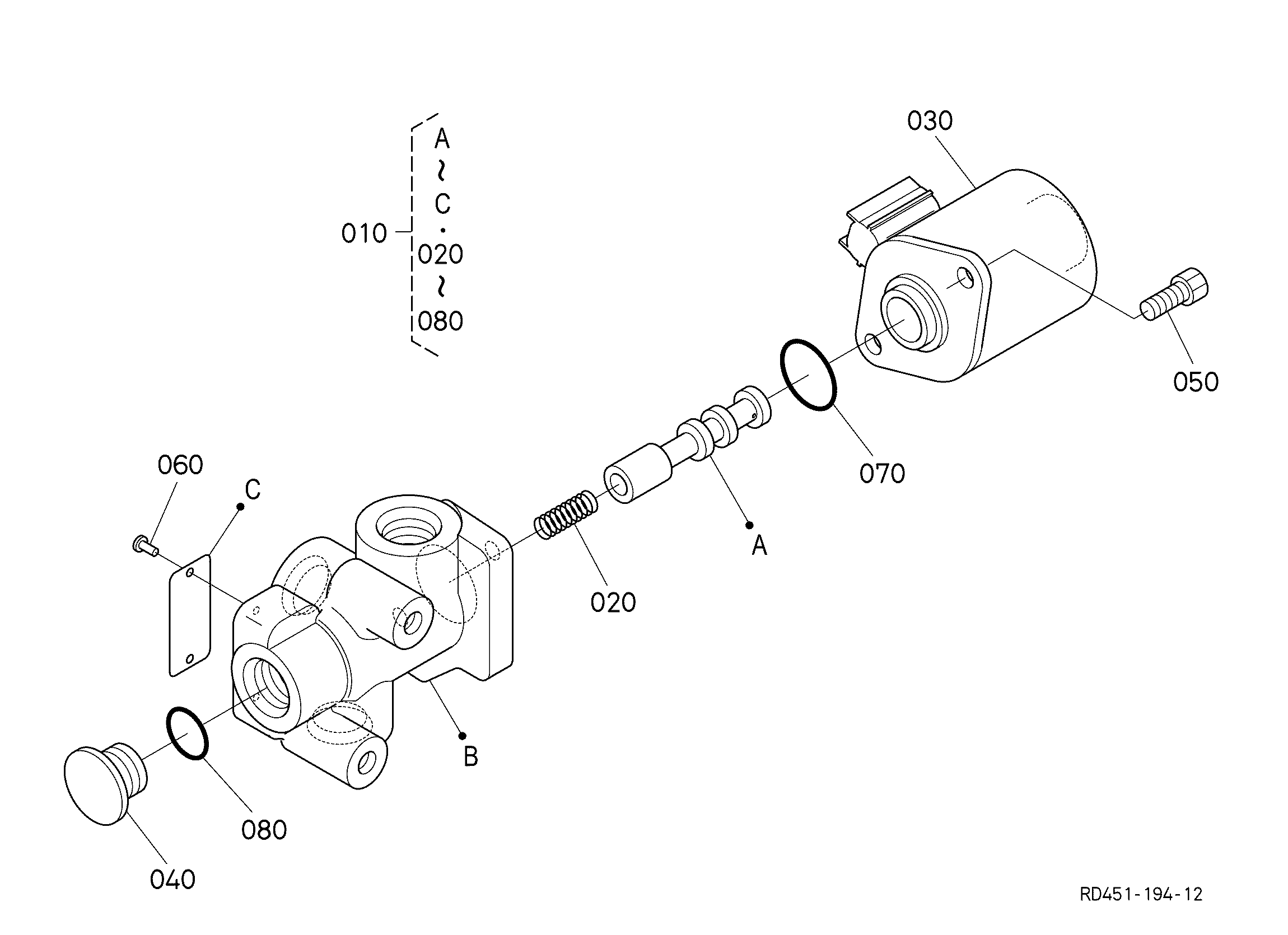

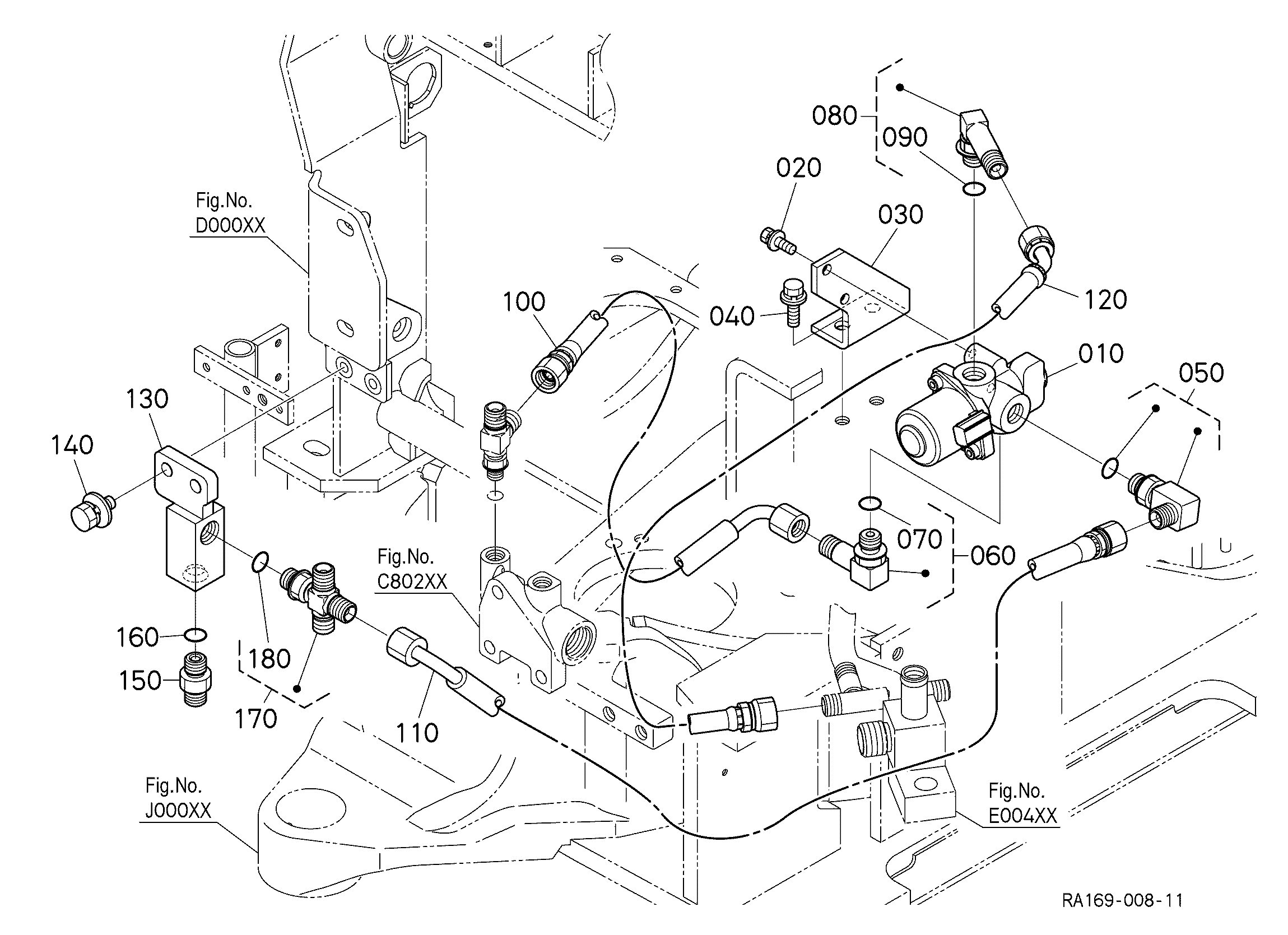

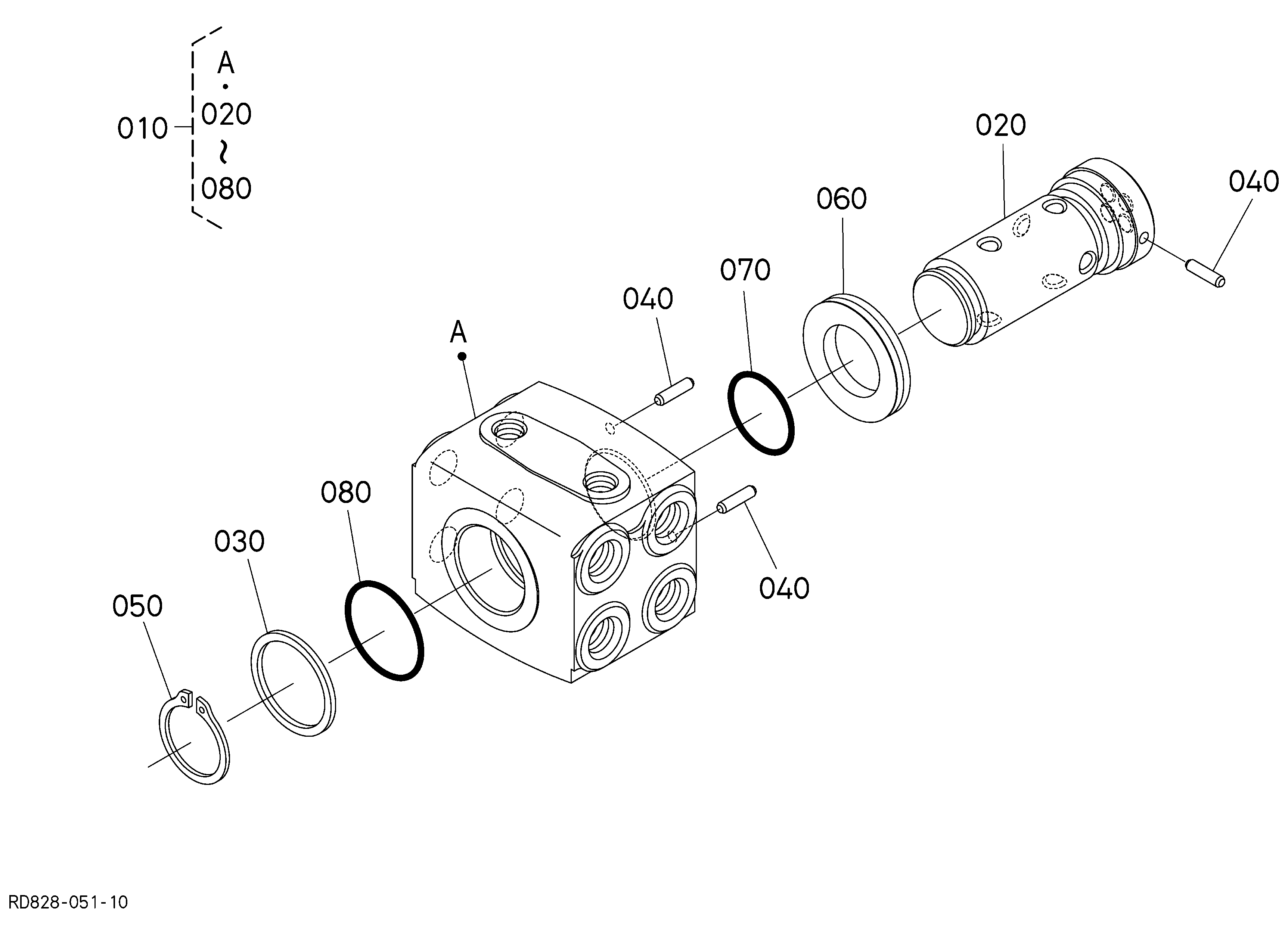

Exploded-view parts diagram "C91000 TPSS VALVE" for the Kubota U10-5. 22 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE,TPSS RD458-62702 | 1 | $969.40 | |||
| 020 | BOLT 01120-51020 01123-51020 | 1 | $1.48 | |||
| 030 | LINK( RA169-96860 | 1 | $72.58 | |||
| 040 | BOLT, HEX-SOC-HD 01311-10612 | 1 | $1.10 | |||
| 050 | JOINT RP321-61860 | 1 | $35.82 | |||
| 060 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 070 | JOINT,PIPE(L,G2,G2) RA139-63210 | 1 | $46.92 | |||
| 075 | O-ring 04815-00100 04817-00100 | 1 | $2.50 | |||
| 080 | JOINT RD451-63920 RB411-63760 | 1 | $34.61 | |||
| 100 | JOINT PIPE F RC101-63890 Discontinued | 1 | $41.26 | |||
| 110 | JOINT,PIPE(L,G2-G2) RA168-63770 | 1 | $44.61 | |||
| 130 | BRACKET RA169-96850 | 1 | $175.52 | |||
| 140 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 150 | BRACKET RA169-96820 | 1 | $136.13 | |||
| 160 | Plain Washer (Flat Washer) 04014-50120 04013-50120 | 1 | $0.60 | |||
| 170 | Disk Spring 65601-42340 | 1 | $3.45 | |||
| 180 | Locking Nut 02574-50120 02572-50120 | 1 | $6.24 | |||
| 190 | PLATE RA169-96840 | 1 | $24.64 | |||
| 200 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 210 | Snap Pin 52300-34120 | 1 | $3.94 | |||
| 220 | LEVER(TPSS) RA169-96870 | 1 | $47.21 | |||
| 230 | CAP, PROTECTOR 09980-00100 | 1 | $2.64 | |||
Showing 1 to 22 of 22 parts
