Kubota KX080-4S C72000 PILOT VALVE (BLADE) Parts Diagram

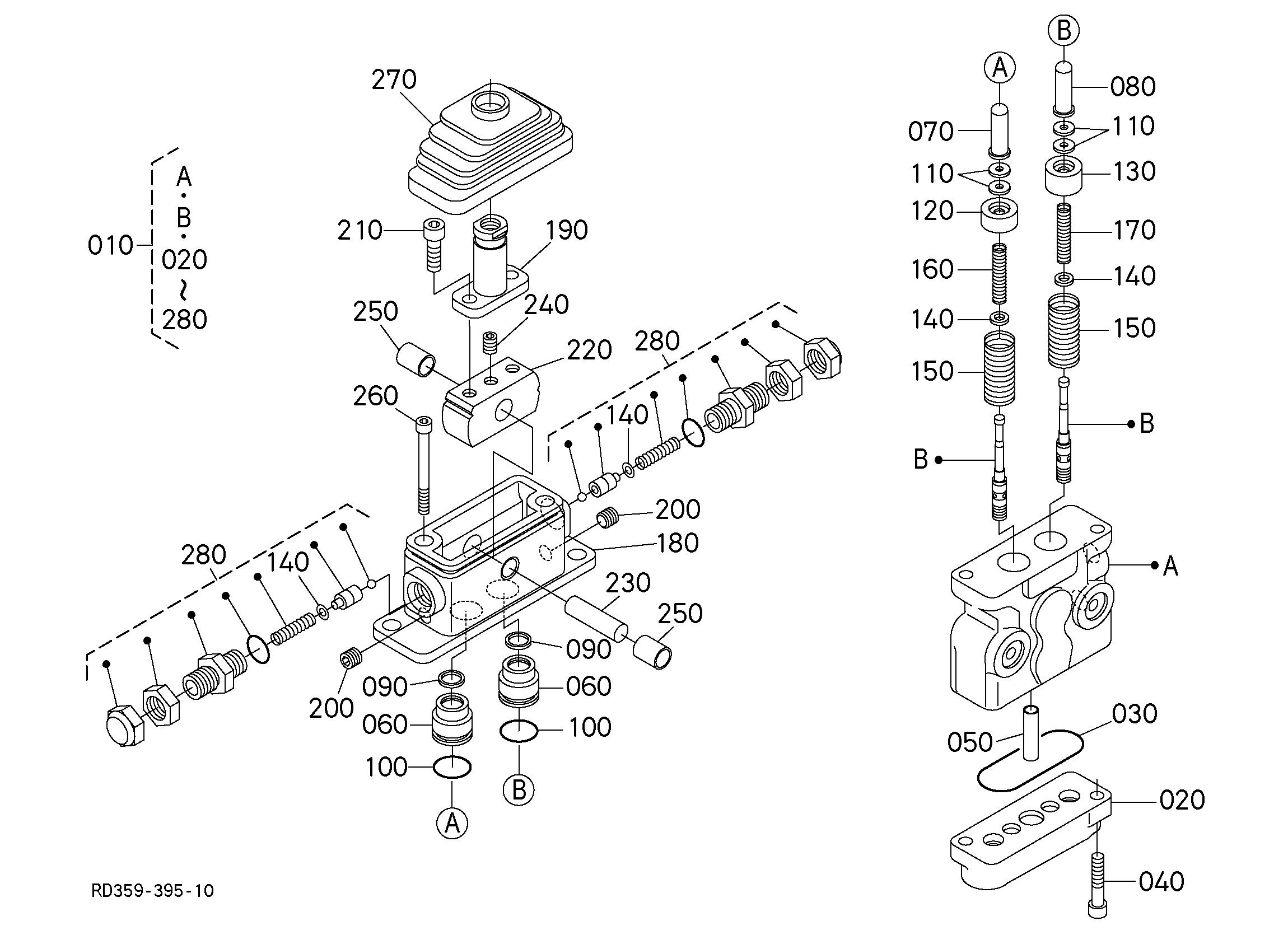

Exploded-view parts diagram "C72000 PILOT VALVE (BLADE)" for the Kubota KX080-4S and Kubota KX080-4S2. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE RD458-61430 | 1 | $2,342.43 | |||
| 020 | FILTER RC461-61740 | 1 | $54.19 | |||
| 030 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 040 | JOINT, PIPE (G-G RC441-63250 | 1 | $55.47 | |||
| 045 | JOINT, PIPE RC411-63880 | 1 | $39.22 | |||
| 060 | JOINT RP201-61890 | 1 | $53.76 | |||
| 080 | JOINT,PIPE RC448-61970 RP821-61970 | 1 | $36.97 | |||
| 120 | BOLT, M10-20 RD458-61440 | 1 | $6.27 | |||
| 130 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 140 | JOINT, PIPE (TG- RD809-69143 | 1 | $79.38 | |||
| 200 | JOINT RP821-61980 | 1 | $34.61 | |||
| 240 | JOINT, PIPE V0511-68420 | 1 | $49.61 | |||
Showing 1 to 12 of 12 parts
