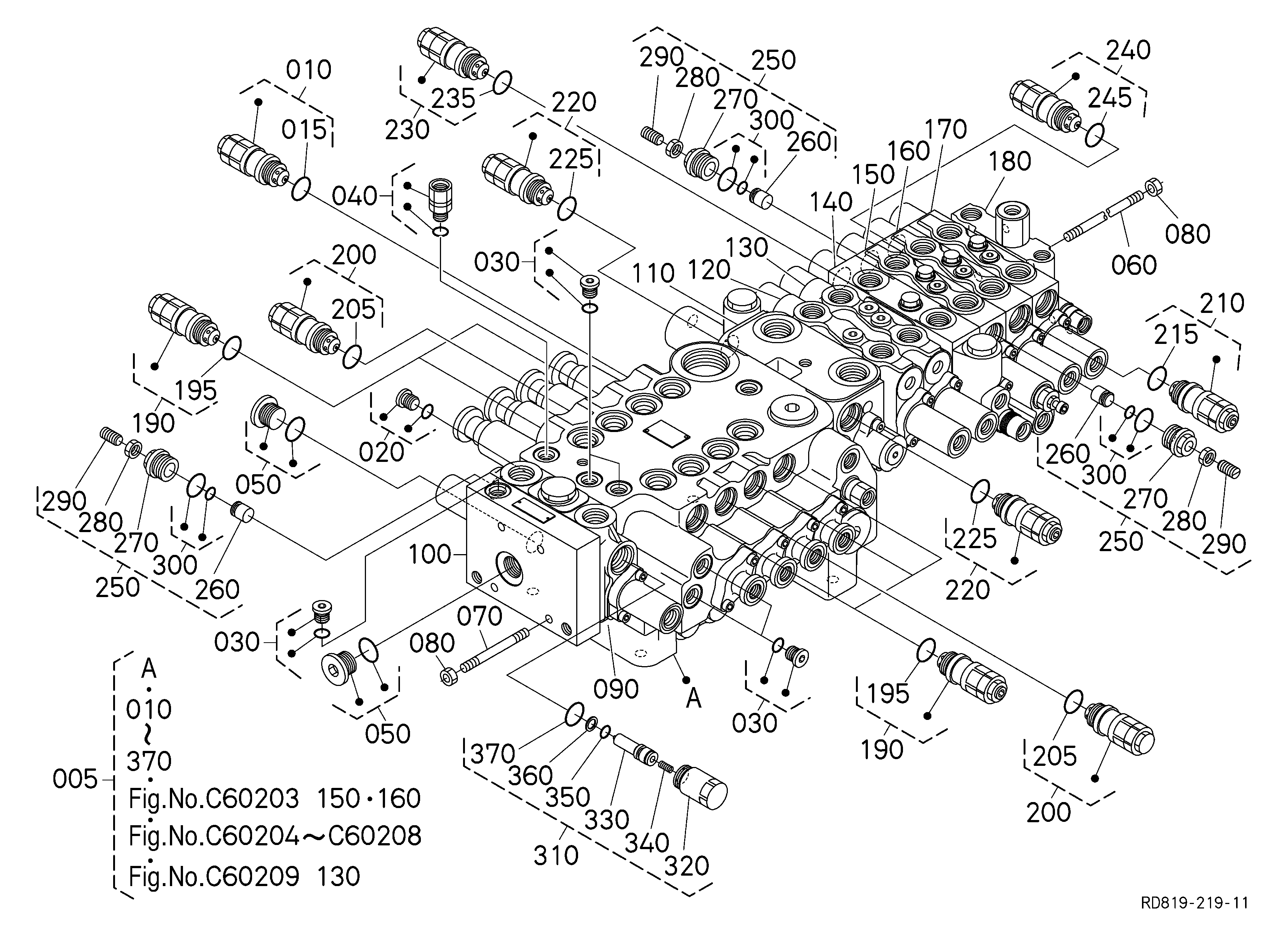

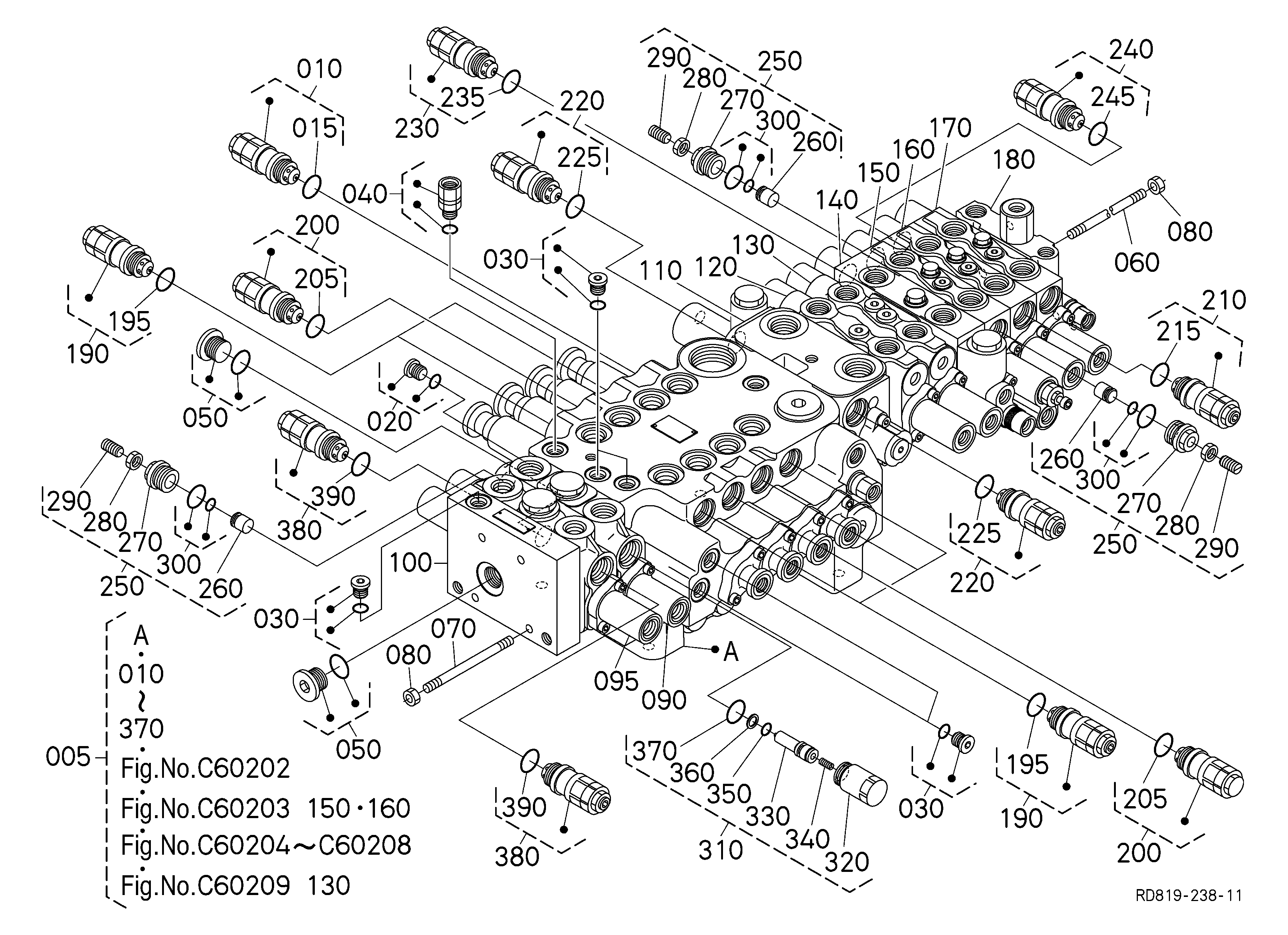

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | ASSY VALVE, CONT RD819-74012 RD819-74015 | 1 | $11,479.11 | |||
| 010 | ASSY VALVE, RELI RD809-70810 | 1 | $886.24 | |||
| 015 | O RING RD411-70570 | 1 | $21.66 | |||
| 020 | ASSY PLUG, CONTR RD819-70910 | 1 | $120.71 | |||
| 030 | ASSY PLUG RD809-70920 | 1 | $352.50 | |||
| 040 | ASSY PLUG RD809-70940 | 1 | $379.44 | |||
| 050 | PLUG 68311-70520 RP402-70620 | 1 | $70.08 | |||
| 060 | ROD, TIE RD809-70550 | 1 | $113.26 | |||
| 070 | ROD, TIE RD809-70560 | 1 | $113.26 | |||
| 080 | NUT 68021-81370 | 1 | $16.76 | |||
| 090 | ASSY VALVE, SWIN RD809-70100 RD809-70102 | 1 | $2,790.49 | |||
| 095 | ASSY VALVE, ANGL RD819-70770 RD819-70773 | 1 | $2,305.87 | |||
| 100 | HOUSING, OUTLET RD809-70310 | 1 | $996.76 | |||
| 110 | ASSY VALVE RD819-70200 RD819-70203 | 1 | $2,661.47 | |||
| 120 | ASSY VALVE,DRIVE RD819-70302 RD819-70303 | 1 | $3,098.37 | |||
| 130 | ASSY VALVE, DRIV RD819-70402 RD819-70403 | 1 | $3,098.37 | |||
| 140 | ASSY VALVE, CONF RD819-70500 RD819-70502 | 1 | $1,663.70 | |||
| 150 | VALVE,ASSY.SP2 RD809-70600 RD809-70602 | 1 | $2,155.99 | |||
| 160 | ASSY VALVE, BLAD RD819-70712 RD819-70713 | 1 | $2,524.36 | |||
| 170 | ASSY VALVE, SWIV RD819-70800 RD819-70803 | 1 | $2,609.09 | |||
| 180 | ASSY VALVE, BY-P RD819-70900 | 1 | $2,525.42 | |||
| 190 | ASSY VALVE, REIE RD809-70830 | 1 | $920.40 | |||
| 200 | ASSY VALVE, REIE RD809-70840 | 1 | $883.25 | |||
| 210 | ASSY VALVE, RELI RD819-70960 | 1 | $883.25 | |||
| 220 | ASSY VALVE, RELI RD809-70860 | 1 | $889.26 | |||
| 230 | ASSY VALVE, RERE RD809-70870 | 1 | $889.26 | |||
| 240 | ASSY VALVE, RELI RD809-70880 | 1 | $883.25 | |||
| 250 | VALVE, ADJ ASSY 68861-70120 | 1 | $383.25 | |||
| 260 | POPPET 68861-70330 | 1 | $90.36 | |||
| 270 | PLUG 68861-70340 | 1 | $151.70 | |||
| 280 | NUT LOCK 68861-70350 | 1 | $26.43 | |||
| 290 | SCREW SET 68861-70360 | 1 | $33.02 | |||
| 300 | KIT, SEAL VALVE 68811-94200 | 1 | $27.03 | |||
| 310 | ASSY VALVE- KX12 RD118-70210 | 1 | $447.42 | |||
| 320 | PLUG RD118-70480 | 1 | $72.17 | |||
| 330 | POPET RD118-70490 | 1 | $97.80 | |||
| 340 | SPRING RD118-70510 | 1 | $38.24 | |||
| 350 | O RING RD118-70520 | 1 | $87.60 | |||
| 360 | RING RD118-70540 | 1 | $38.24 | |||
| 380 | ASSY VALVE, RELI RD819-70970 | 1 | $883.25 | |||
Showing 1 to 40 of 40 parts
