Kubota KX121-3ST C60006 CONTROL VALVE (4) Parts Diagram

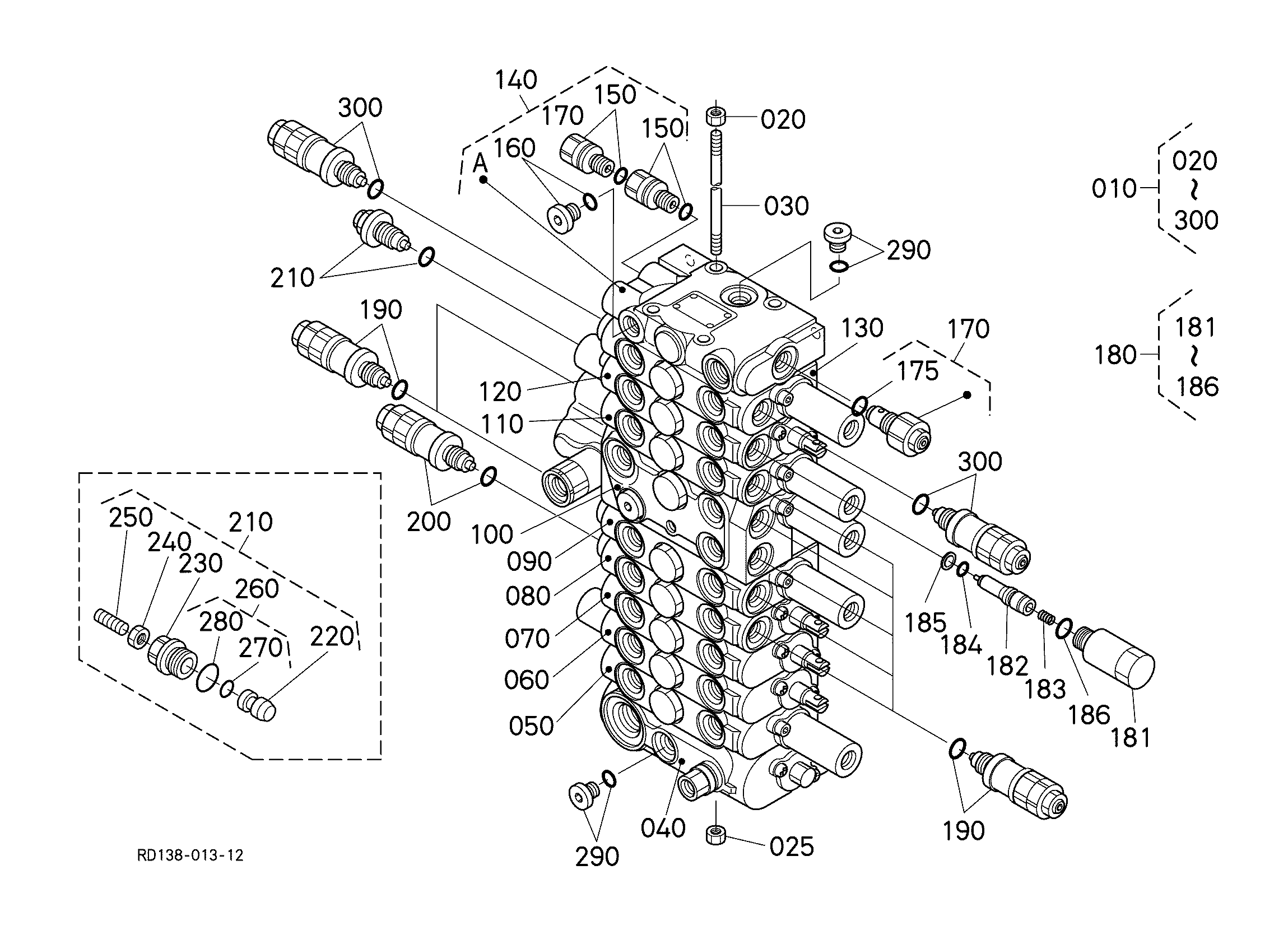

Exploded-view parts diagram "C60006 CONTROL VALVE (4)" for the Kubota KX121-3ST. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | JOINT RP201-61812 RP201-61810 | 1 | $45.89 | |||
| 010 | JOINT, PIPE MR003-30310 | 1 | $25.73 | |||
| 010 | JOINT, PIPE (LG- RC661-61810 | 1 | $47.50 | |||
| 020 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 030 | JOINT,PIPE RD118-61960 | 1 | $88.24 | |||
| 050 | JOINT, PIPE RD118-61940 | 1 | $41.26 | |||
| 070 | JOINT, PIPE RD411-61990 | 1 | $149.15 | |||
| 080 | O-Ring Seal (Hydraulic/Oil Piping) 04817-00240 | 1 | $2.50 | |||
| 090 | JOINT RD451-63920 RB411-63760 | 1 | $34.61 | |||
| 100 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 110 | ASSY VALVE, CHEC RD118-61852 RD118-61853 | 1 | $292.94 | |||
| 130 | POPPET RD411-61950 | 1 | $54.14 | |||
| 140 | SPRING RD411-61960 | 1 | $22.46 | |||
| 150 | JOINT PIPE RD411-61870 RD411-61872 | 1 | $157.49 | |||
| 190 | JOINT 69254-78490 | 1 | $47.50 | |||
| 230 | JOINT, PIPE RP402-61920 | 1 | $43.15 | |||
| 250 | ADAPTER * 68499-83730 68728-76150 | 1 | $24.41 | |||
Showing 1 to 17 of 17 parts
