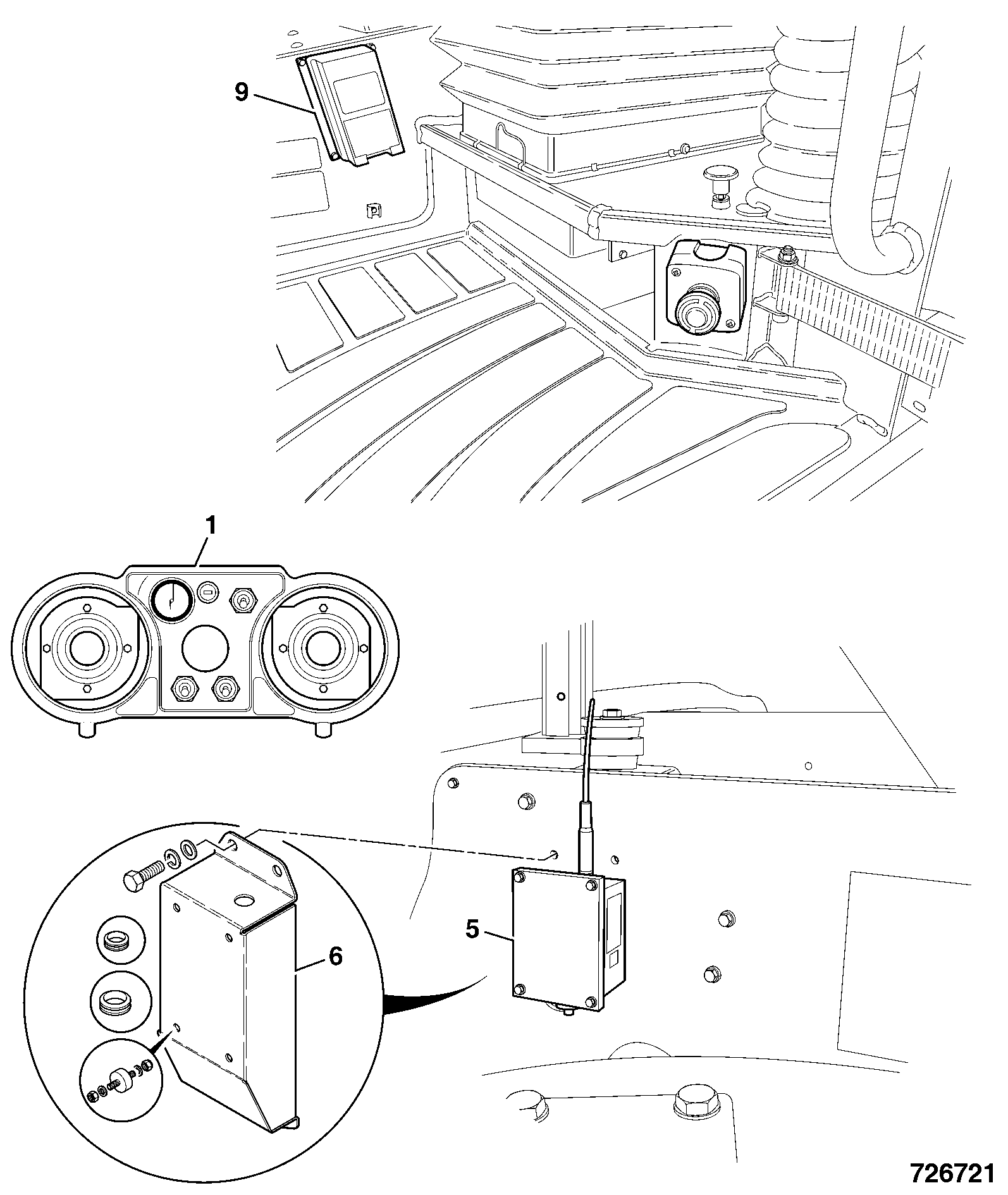

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 247/00367 813/10266 | 1 | $4.26 | ||||
| BRKT ACTUATOR SUPPORT 332/D8044 | 1 | $211.37 | ||||
| SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | ||||
| SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | ||||
| 1 | WA BRACKET RPM ACTUATOR 335/09624 | 1 | $153.43 | |||
| 2 | BRACKET RPM ACTUATOR 331/51412 | 1 | $126.17 | |||
| 3 | WA PUSHROD 335/09625 | 1 | $247.16 | |||
| 4 | EXTENSION LEVER 331/51416 | 1 | $80.12 | |||
| 5 | BUSH 331/51419 | 1 | $9.46 | |||
| 6 | END STOP 331/51420 | 1 | $62.56 | |||
| 7 | LOBED SCREW M8 1319/0314Z | 1 | $4.93 | |||
| 8 | BOLT M10x40 1315/3410Z | 1 | $5.45 | |||
| 9 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 11 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 12 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 13 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 14 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 15 | SPACER 331/51418 | 1 | $32.66 | |||
| 16 | BOLT M_6 L-_30mm G-_8.8 MHM 1315/3208Z | 1 | $0.62 | |||
| 17 | NUT THROTTLE 826/11401 | 1 | $56.16 | |||
| 19 | LINEAR MOTOR - THROTTLE SYSTEM 714/40398 | 1 | $992.96 | |||
| 20 | ACTUATOR LINK 721/12372 | 1 | $234.32 | |||
Showing 1 to 23 of 23 parts
