Kubota ZD331P C42000 TRANSMISSION CASE Parts Diagram
Exploded-view parts diagram "C42000 TRANSMISSION CASE" for the Kubota ZD331P. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ASSY BREATHER PI K3511-36694 | 1 | $33.34 | ||||
| CAP, BREATHER PI K3151-36710 | 1 | $8.28 | ||||
| CASE, CENTER K3161-11113 K3161-11115 | 1 | $2,588.78 | ||||
| CASE, CENTER K3161-11116 | 1 | $2,521.33 | ||||
| ELEMENT, BREATHE 16241-05670 | 1 | $3.97 | ||||
| GASKET,CASE FRON K3161-11050 | 1 | $99.04 | ||||
| GASKET,CASE REAR K3161-11060 | 1 | $99.04 | ||||
| GAUGE, OIL K3161-36510 | 1 | $30.64 | ||||
| KIT GASKET, CENT K3161-91140 | 1 | $198.02 | ||||
| PIPE,BREATHER K3511-36680 K3511-36682 | 1 | $14.32 | ||||
| PLUG K3161-11560 | 1 | $17.76 | ||||
| Seal Washer 04717-02000 | 1 | $3.37 | ||||
| Steel Ball 04811-00240 04816-00240 | 1 | $3.37 | ||||
Showing 1 to 13 of 13 parts
Related Assemblies
-

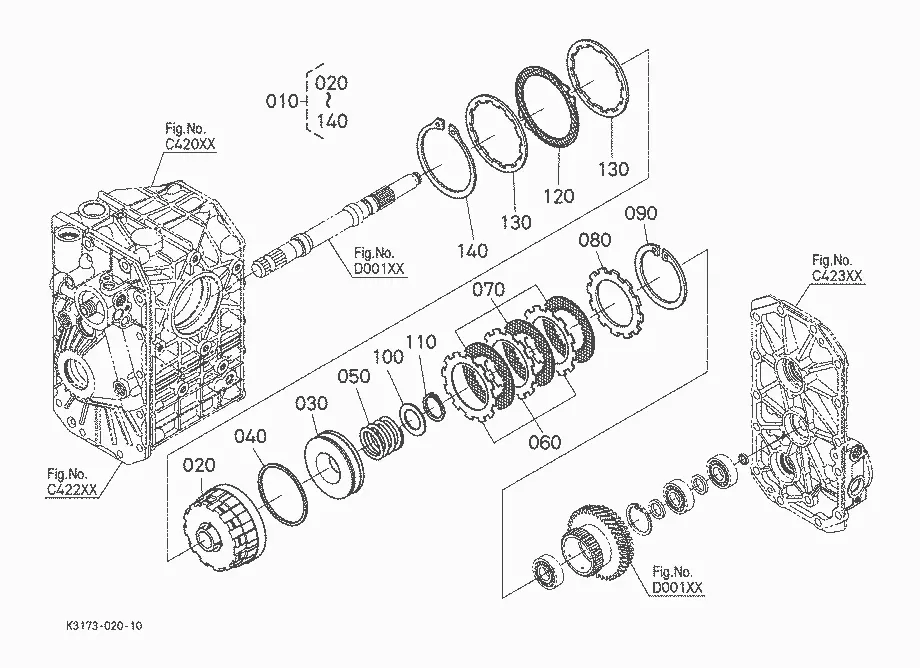

DIAG-C10100-86457 C10100 CLUTCH
View Diagram -
DIAG-C42200-86457 C42200 CENTER COVER (FRONT)
View Diagram -

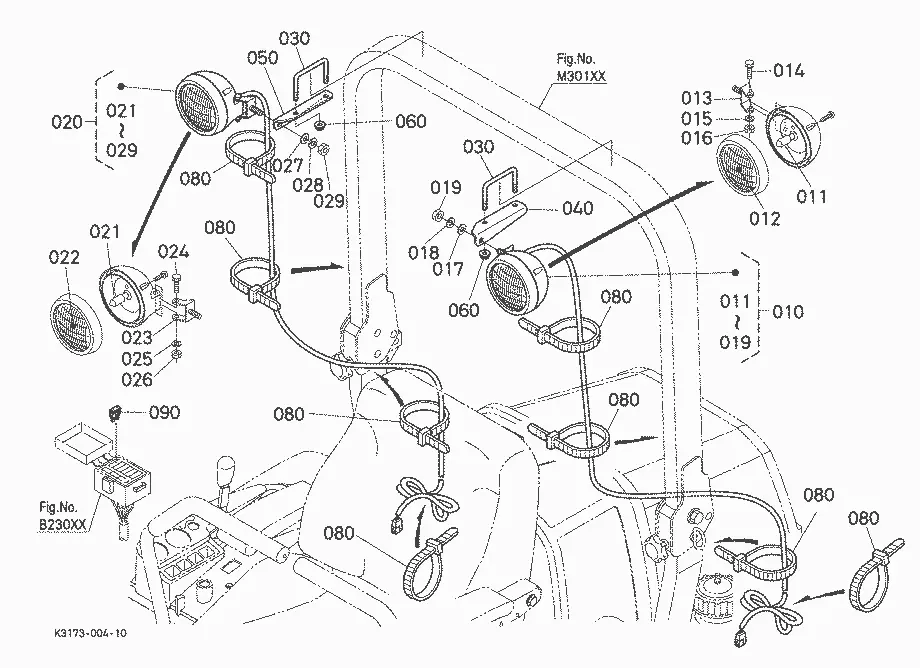

DIAG-B90100-86457 B90100 WORK LIGHT KIT [OPTION]
