Scroll to zoom Click a part # to view details

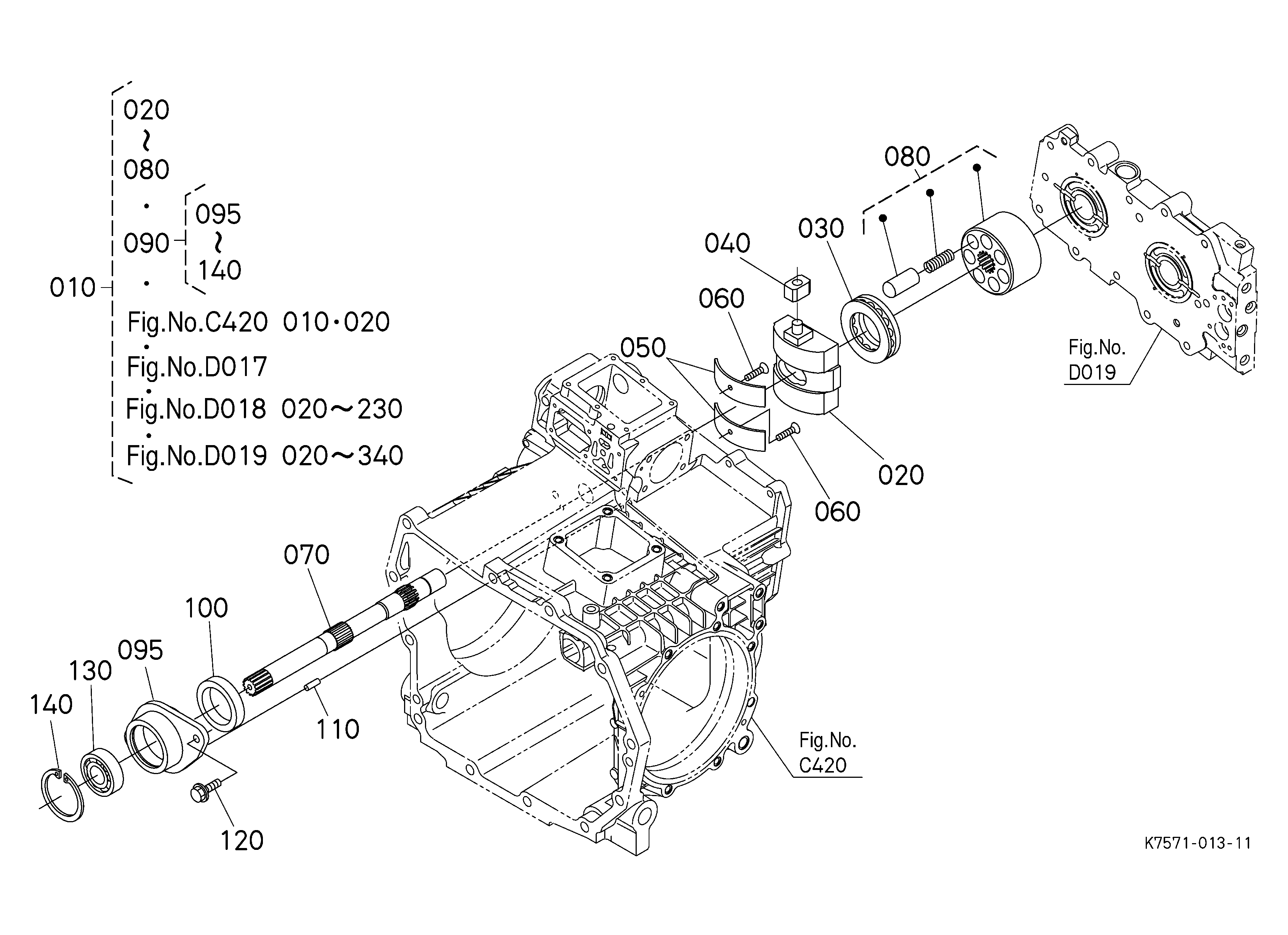

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | KIT, HST T-21 K7571-91154 K7571-91160 | 1 | $5,833.37 | |||
| 010 | COMP CASE, TRANS K7561-91213 | 1 | $1,592.35 | |||
| 020 | PLUG,R1/4 K7001-39620 | 1 | $3.85 | |||
| 030 | PIN, STRAIGHT 8X K7561-11180 | 1 | $6.46 | |||
| 040 | BOLT 01125-51040 01123-51040 | 1 | $1.19 | |||
| 045 | BOLT 01123-51050 | 1 | $2.99 | |||
| 050 | STUD 01555-51035 | 1 | $2.01 | |||
| 060 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 070 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 080 | COVER DIFF. SUPP K7561-11020 K7561-11023 | 1 | $226.33 | |||
| 085 | COVER, SUPPORT R K7561-11080 | 1 | $228.59 | |||
| 090 | Bolt with Washer 01120-50825 01123-50825 | 1 | $1.21 | |||
| 110 | COVER, TRANSMISS K7561-11210 | 1 | $47.60 | |||
| 115 | GASKET, TRANSMIS K7561-11240 | 1 | $6.90 | |||
| 130 | ASSY BREATHER PI K3511-36694 | 1 | $33.34 | |||
| 140 | PIPE,BREATHER K3511-36680 K3511-36682 | 1 | $14.32 | |||
| 150 | CAP, BREATHER PI K3151-36710 | 1 | $8.28 | |||
| 160 | Steel Ball 04811-00240 04816-00240 | 1 | $3.37 | |||
| 170 | ELEMENT, BREATHE 16241-05670 | 1 | $3.13 | |||
| 180 | GAUGE, OIL K3111-36510 K3111-36810 | 1 | $53.33 | |||
| 190 | HOLDER, BEARING K7571-11260 | 1 | $272.16 | |||
| 210 | BOLT 01120-51035 01123-51035 | 1 | $2.07 | |||
| 220 | PIN 05012-01018 | 1 | $1.51 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-C41504-86228 C41504 FRONT CASE
View Diagram -
DIAG-T10500-86228 T10500 ACCESSORIES AND SERVICE PARTS
View Diagram -
DIAG-D01600-86228 D01600 HST 1 [COMPONENT PARTS]
View Diagram
