Kubota LX2620HSDC C41700 SUB FRAME Parts Diagram

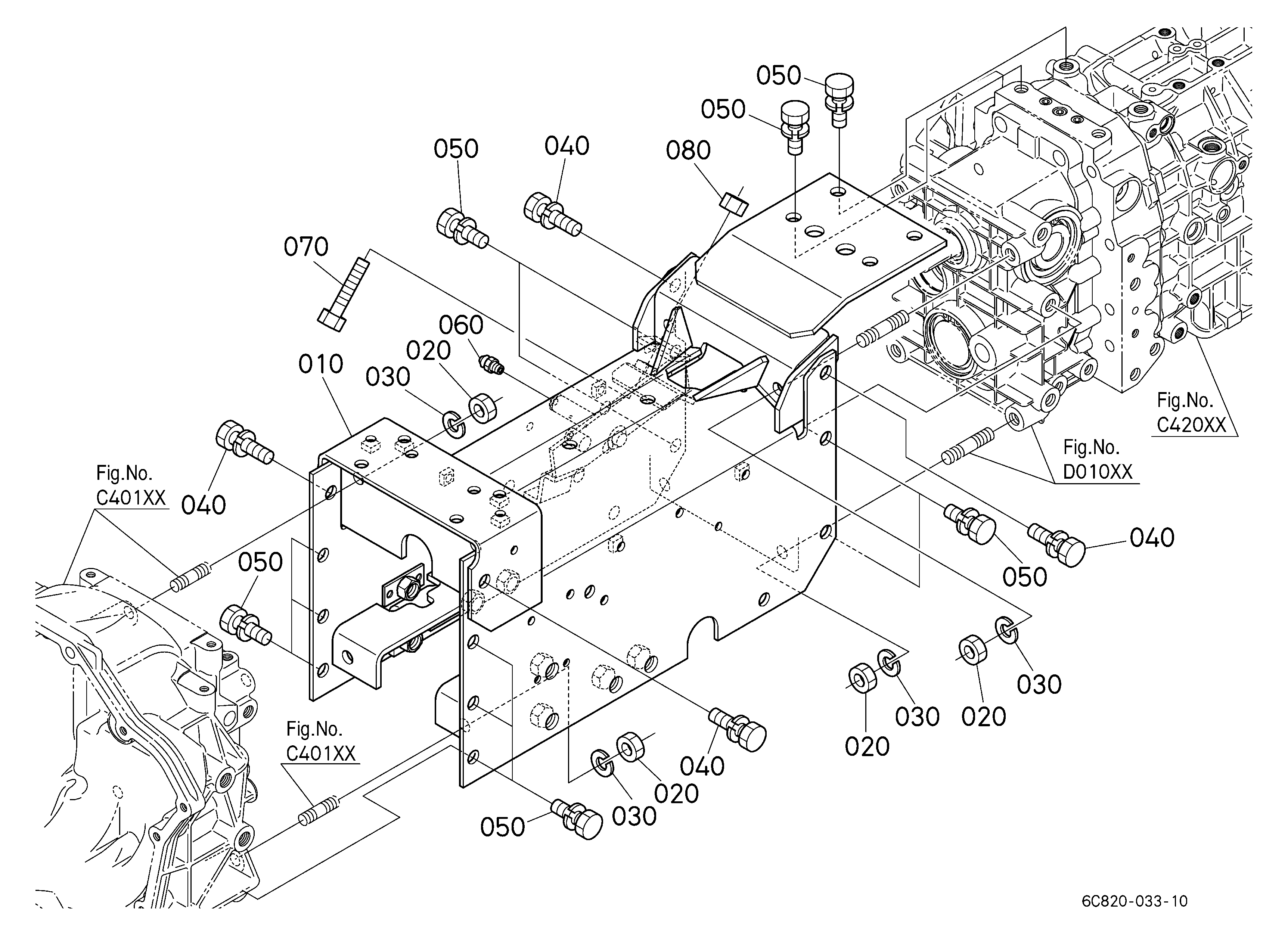

Exploded-view parts diagram "C41700 SUB FRAME" for the Kubota LX2620HSDC. 8 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FRAME, SUB LH 6C410-51130 | 1 | $185.65 | |||
| 020 | FRAME, SUB RH 6C410-51140 | 1 | $185.65 | |||
| 030 | BRACKET,SUB FRAM 6C430-51150 | 1 | $113.65 | |||
| 040 | BOLT 01133-61235 01133-71235 | 1 | $2.47 | |||
| 050 | Nut 02174-60120 02174-70120 | 1 | $1.05 | |||
| 060 | BOLT 01133-51435 | 1 | $3.34 | |||
| 070 | BOLT 01133-61450 01133-51450 | 1 | $3.93 | |||
| 080 | BOLT 01133-61055 01133-71055 | 1 | $2.95 | |||
Showing 1 to 8 of 8 parts
