Kubota RTV-X CREW / RTVX4-BKH-1 C41500 FRONT CASE Parts Diagram

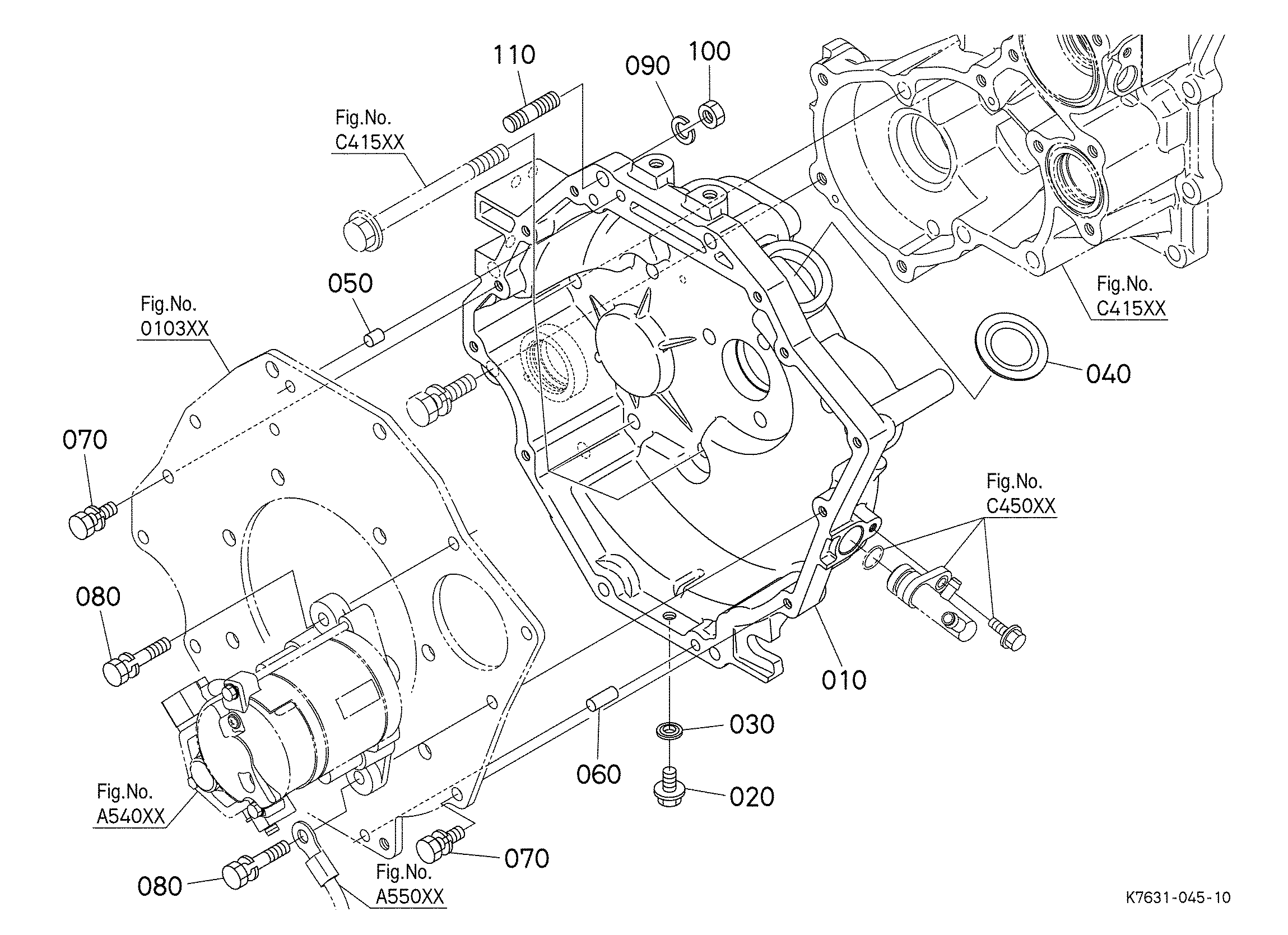

Exploded-view parts diagram "C41500 FRONT CASE" for the Kubota RTV-X CREW / RTVX4-BKH-1, Kubota RTV-X CREW / RTVX4-PDLHS-1, Kubota RTV-X CREW / RTVX4-SCLA-1 / PCLAS-1 / ACLAS-1 and Kubota RTV-X CREW / RTVX4-SKH-1 / SKLH-1 / PKLHS-1. 10 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | TRANSAXLE,ASSY,C K7741-10010 | 1 | $8,423.64 | |||
| 005 | TRANSAXLE,ASSY,C K7741-10014 | 1 | $7,781.15 | |||
| 010 | COVER,FRONT ** K7591-11112 K7591-11116 | 1 | $507.80 | |||
| 020 | Straight Pin 05012-00614 | 1 | $0.80 | |||
| 030 | BOLT, FLANGE 01130-51040 01133-51040 | 1 | $2.87 | |||
| 040 | BOLT,FLANGE 1J586-91020 01774-51004 | 1 | $9.06 | |||
| 050 | STUD 01519-51030 | 1 | $2.54 | |||
| 060 | NUT,M10x1.25 S/W K7591-11070 | 1 | $4.33 | |||
| 070 | O RING 04817-06470 | 1 | $8.66 | |||
| 080 | O-RING 04811-06670 | 1 | $7.26 | |||
Showing 1 to 10 of 10 parts
