Kubota BX25DLB C41300 FRONT FRAME Parts Diagram

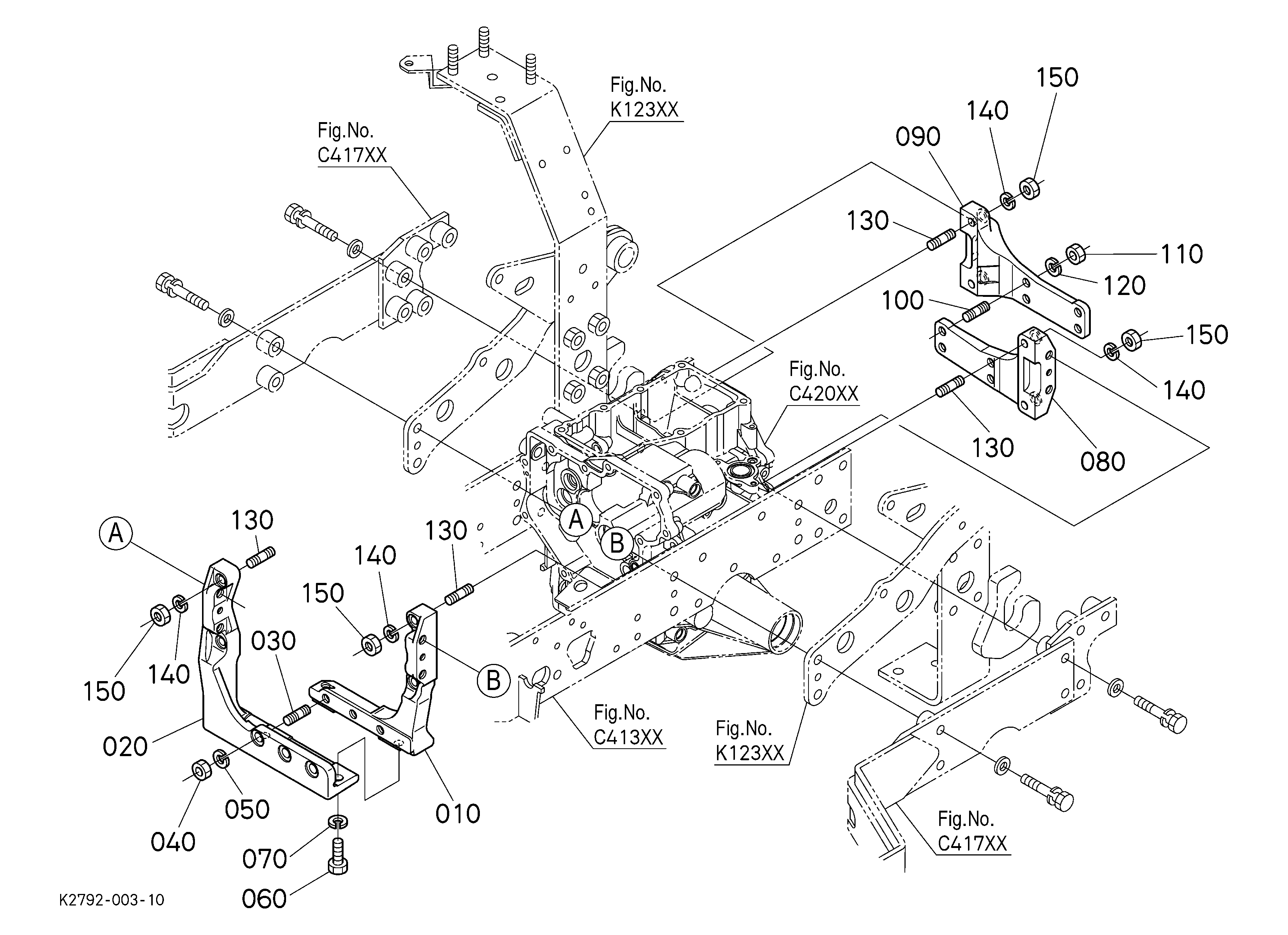

Exploded-view parts diagram "C41300 FRONT FRAME" for the Kubota BX25DLB. 5 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP KIT FRAME K2587-92110 | 1 | $1,864.86 | |||
| 010 | KIT FRAME K2771-92110 K2771-92113 | 1 | $1,877.14 | |||
| 020 | ROD, TIE K2583-21030 K2583-21032 | 1 | $64.55 | |||
| 030 | BOLT 01133-51440 | 1 | $3.53 | |||
| 040 | Mounting Bolt 01123-51240 | 1 | $2.62 | |||
Showing 1 to 5 of 5 parts
