Kubota BX2380-1 C41300 FRONT FRAME Parts Diagram
Exploded-view parts diagram "C41300 FRONT FRAME" for the Kubota BX2380-1 and Kubota BX2680-1. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FRAME(KIT COMP) K2877-92112 | 1 | $1,098.54 | |||
| 010 | FRAME,KIT K2871-92113 | 1 | $1,245.44 | |||
| 012 | LABEL(EMC) K3441-98250 | 1 | $0.49 | |||
| 018 | LABEL(FIRE,WARNING) K2054-65452 | 1 | $3.73 | |||
| 020 | ROD, TIE K2583-21030 K2583-21032 | 1 | $64.55 | |||
| 030 | BOLT 01133-51440 | 1 | $3.53 | |||
| 040 | Mounting Bolt 01123-51240 | 1 | $2.62 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

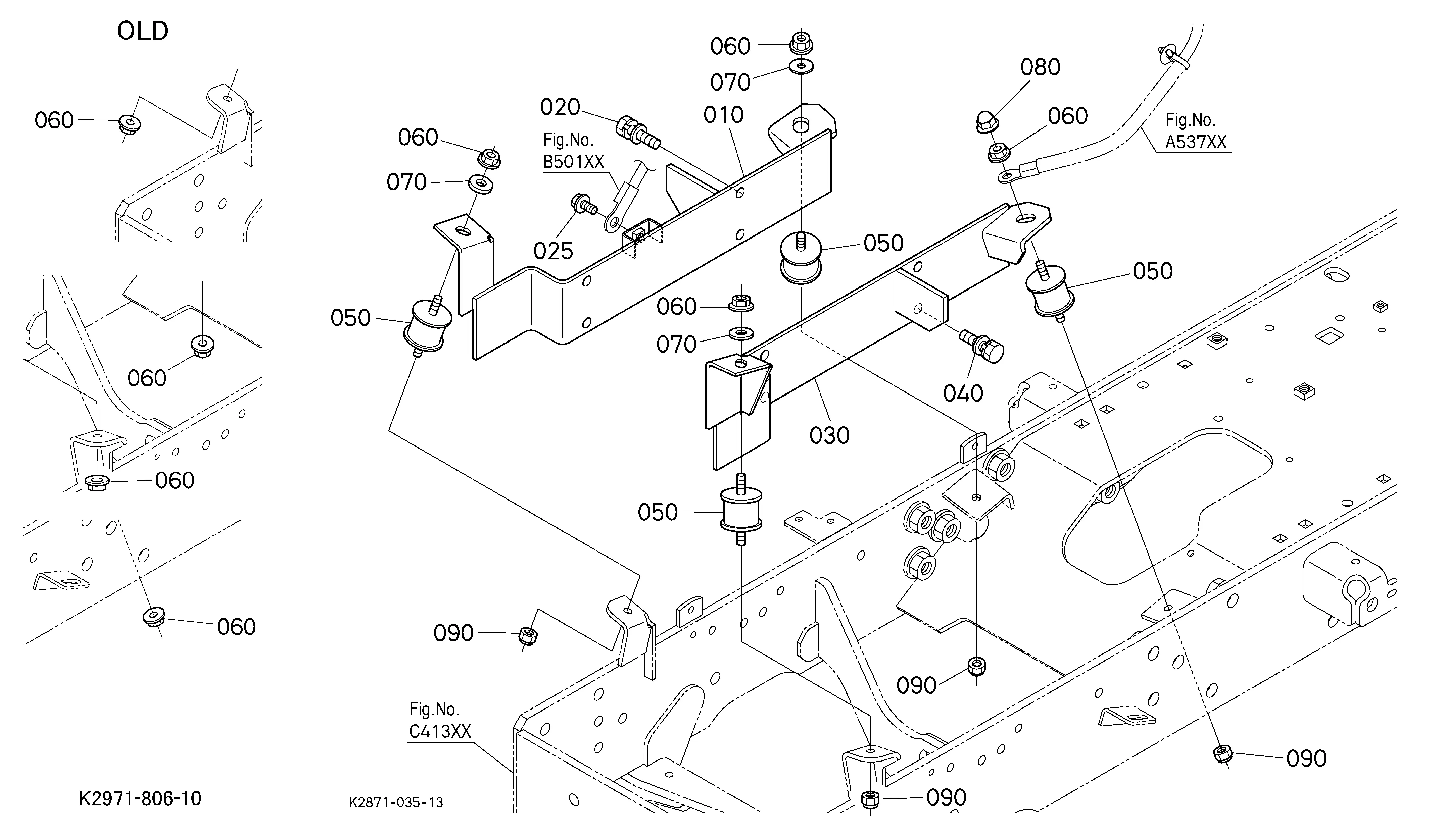

DIAG-C41902-194178 C41902 ENGINE SUPPORT
View Diagram -

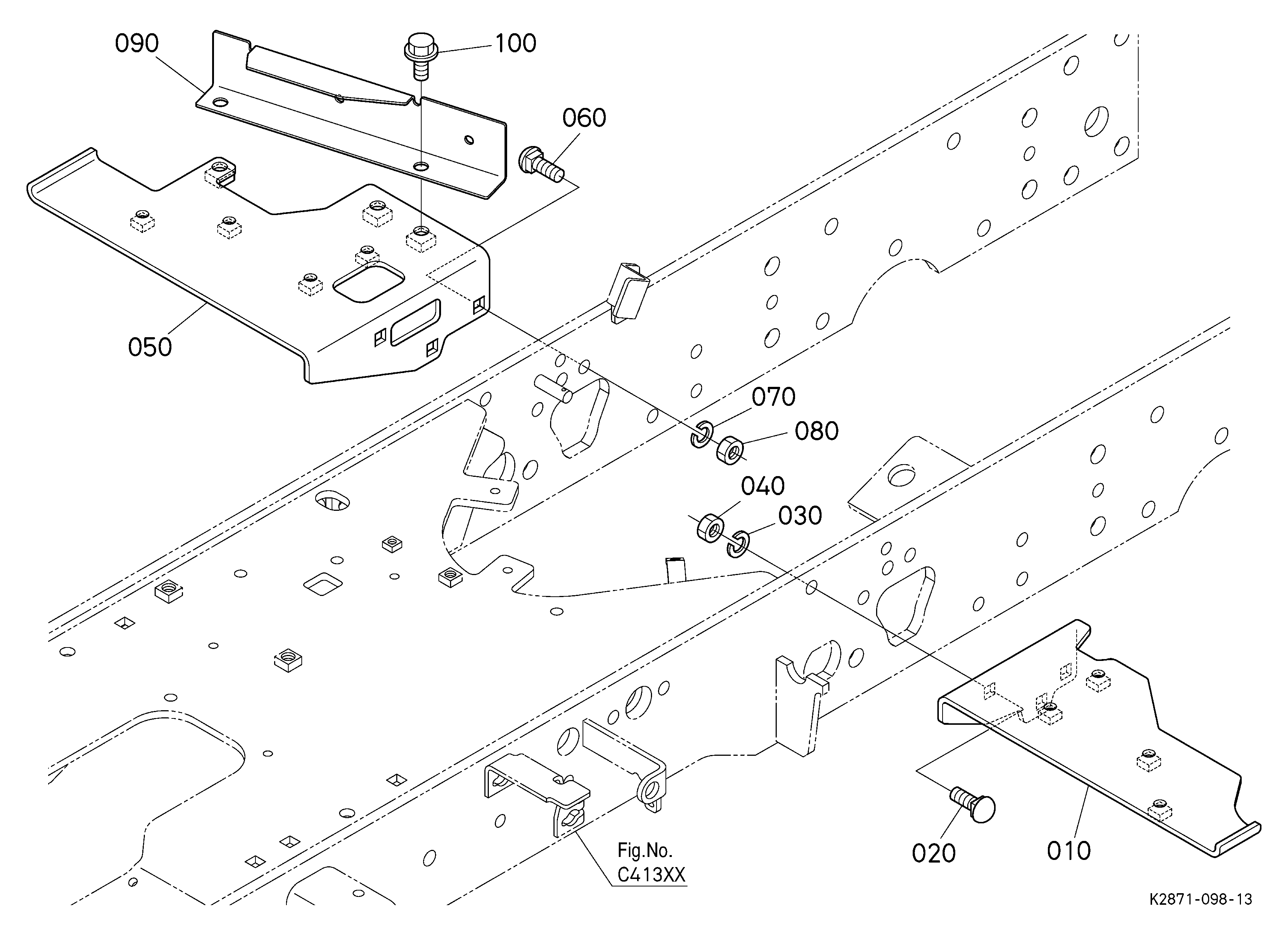

DIAG-M22601-194178 M22601 STEP STAY
