Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE, MID HST TC350-50320 | 1 | $2,099.46 | |||
| 020 | HOLDER, BEARING TC230-50330 | 1 | $172.13 | |||
| 030 | PIN, STRAIGHT (C 05011-00818 05012-00818 | 1 | $1.31 | |||
| 040 | BOLT, FLANGE 01130-51040 01133-51040 | 1 | $2.87 | |||
| 050 | HOLDER,BEARING TC230-51352 TC230-51353 | 1 | $247.31 | |||
| 060 | PISTON TA040-69210 | 1 | $51.99 | |||
| 070 | COVER TA040-69220 | 1 | $38.18 | |||
| 080 | SPRING TA040-69230 | 1 | $15.92 | |||
| 090 | SPRING TA040-69240 | 1 | $13.88 | |||
| 100 | SEAL, PISTON 34076-65170 | 1 | $26.98 | |||
| 110 | O-RING 04811-06230 04816-06230 | 1 | $2.50 | |||
| 120 | Circlip Retaining Ring 04611-00280 | 1 | $1.31 | |||
| 130 | PLUG 32420-67380 | 1 | $3.35 | |||
| 155 | GASKET TD170-50290 | 1 | $43.43 | |||
| 160 | PIN 05012-01018 | 1 | $1.51 | |||
| 170 | STUD 3A111-21330 35340-14182 | 1 | $8.19 | |||
| 180 | STUD TD170-50220 | 1 | $17.92 | |||
| 190 | STUD 35340-27380 | 1 | $8.09 | |||
| 200 | Spring Washer 04512-60120 04512-70120 | 1 | $0.21 | |||
| 210 | NUT 37300-27360 35340-27360 | 1 | $1.46 | |||
| 220 | PIPE (HST) TD170-50280 | 1 | $16.13 | |||
| 230 | O-Ring Seal 04810-00120 04817-00120 | 1 | $2.50 | |||
| 240 | PLUG 5H600-12620 | 1 | $14.54 | |||
| 250 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-D12500-85977 D12500 SPIRAL BEVEL PINION
View Diagram -
DIAG-E16500-85977 E16500 BRAKE ROD (BRAKE PEDAL)
View Diagram -

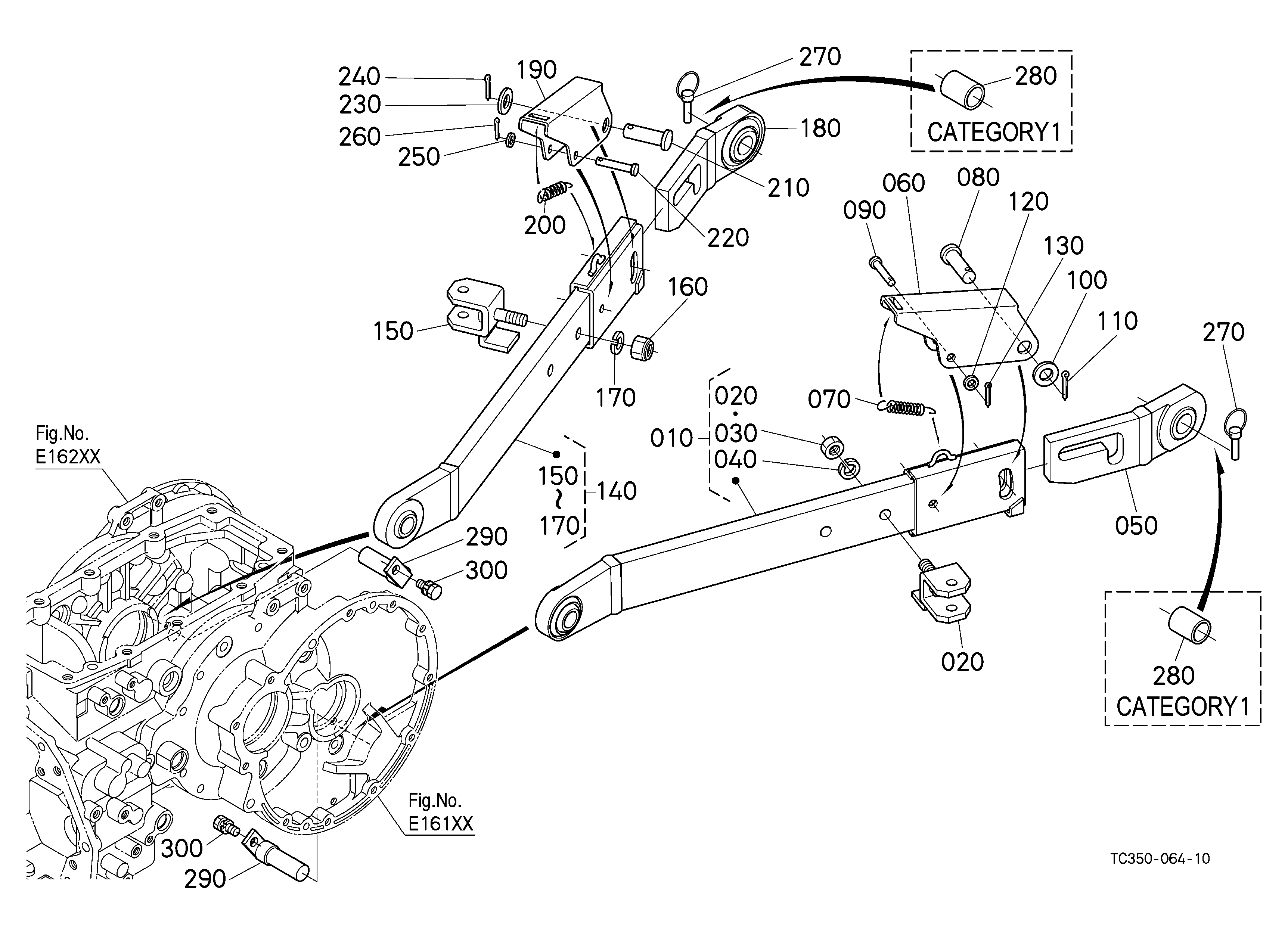

DIAG-J11002-85977 J11002 3-POINT LINKAGE 1 (LOWER LINK)
