Kubota T1570 C40501 HST (COMPONENT PARTS) Parts Diagram

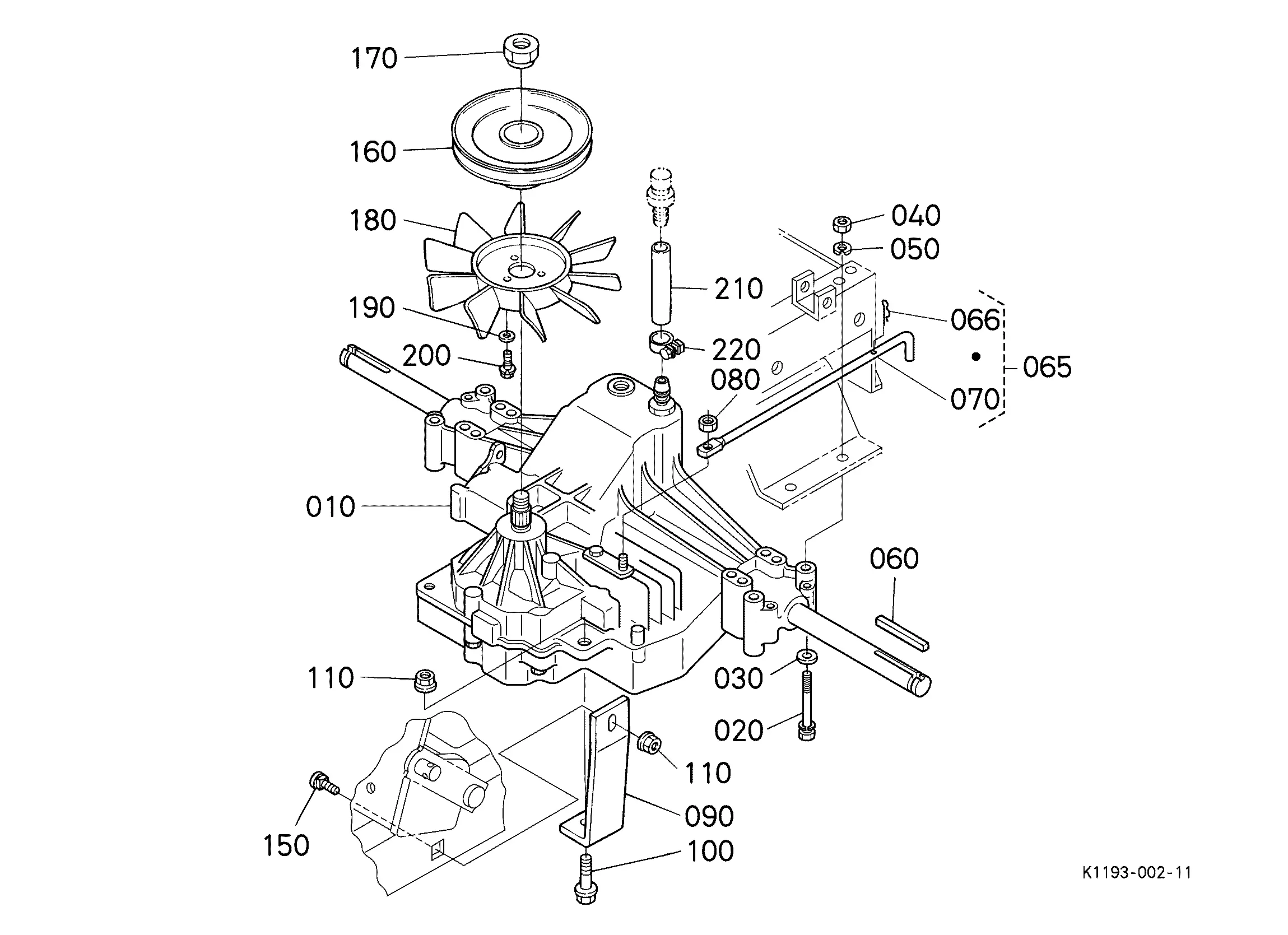

Exploded-view parts diagram "C40501 HST (COMPONENT PARTS)" for the Kubota T1570 and Kubota T1570A. 50 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY TRANSAXLE, K1122-11110 | 1 | $2,851.33 | |||
| 020 | HOUSING, LOWER H K1122-81010 | 1 | $513.44 | |||
| 030 | HOUSING, UPPER A K1122-81020 | 1 | $535.82 | |||
| 040 | SEAL-LIP K1122-81030 | 1 | $12.08 | |||
| 050 | RING,WIRE RETAIN K1122-81040 | 1 | $5.61 | |||
| 060 | RING, RETAINING K1122-81050 | 1 | $6.41 | |||
| 070 | BEARING, SHFT.BA K1122-81060 | 1 | $49.84 | |||
| 080 | BEARING, CRADLE K1122-81070 | 1 | $26.38 | |||
| 090 | BEARING, THRUST K1211-81080 K1122-81080 | 1 | $41.64 | |||
| 100 | SWASHPLATE-VARIA K1122-81090 | 1 | $165.20 | |||
| 110 | KIT, HST PUMP BL K1122-81100 | 1 | $249.53 | |||
| 120 | ARM TRUNNION K1122-81110 | 1 | $137.88 | |||
| 130 | GUIDE SLOT K1122-81120 | 1 | $14.44 | |||
| 140 | SHAFT-MOTOR K1122-81130 Discontinued | 1 | $798.91 | |||
| 150 | BRG-THRUST 42*68 K1122-81140 | 1 | $51.25 | |||
| 160 | BLOCK CYL MTR AS K1122-81150 | 1 | $268.74 | |||
| 170 | SEAL,LIP K1122-81160 | 1 | $9.53 | |||
| 180 | ACTUATOR, BYPASS K1122-81170 | 1 | $76.85 | |||
| 190 | ASSY, CENTER SEC K1122-81180 | 1 | $612.77 | |||
| 200 | SEAL, LIP K1122-81190 | 1 | $13.46 | |||
| 210 | RING-RETAINING K1122-81200 | 1 | $6.24 | |||
| 220 | WASHER-26*25*1 K1122-81210 | 1 | $9.80 | |||
| 230 | HST Filter K1122-81220 K1132-81220 | 1 | $117.53 | |||
| 240 | ARM-BYPASS K1122-81230 | 1 | $25.41 | |||
| 250 | RING-RETAINING K1122-81240 | 1 | $6.41 | |||
| 260 | ARM-ACTUATING K1122-81250 | 1 | $43.27 | |||
| 270 | PIN-ACTUATING K1122-81260 | 1 | $10.90 | |||
| 280 | BOLT 5/16-18*1-3 K1122-81270 Discontinued | 1 | $36.91 | |||
| 290 | NUT HEX LOCK K1122-81510 | 1 | $10.08 | |||
| 300 | BRAKE ROTOR/STAT K1122-81290 | 1 | $116.07 | |||
| 310 | WASHER 7/16*7/8* K1122-81300 | 1 | $5.94 | |||
| 320 | DIFFERENTIAL ASS K1122-81310 | 1 | $967.08 | |||
| 330 | SPRING COMP. K1122-81500 | 1 | $5.58 | |||
| 340 | WASHER-3/4*1.5*0 K1122-81330 | 1 | $45.24 | |||
| 350 | SEAL, OIL K1122-81340 | 1 | $10.93 | |||
| 360 | SHAFT -INPUT K1122-81350 | 1 | $221.82 | |||
| 370 | BOLT 1/4-20*1.38 K1122-81360 | 1 | $6.12 | |||
| 380 | PIN-5OD*431D*750 K1122-81370 | 1 | $16.57 | |||
| 390 | GEARS, PINION/SH K1122-81380 | 1 | $307.97 | |||
| 400 | JACK SHAFT K1122-81390 | 1 | $69.43 | |||
| 410 | CAP SCREW 6M*20L K1122-81400 | 1 | $19.71 | |||
| 420 | WASHER 7/16*1*5 K1122-81410 | 1 | $5.94 | |||
| 430 | BALL BEARING K1122-81420 | 1 | $56.90 | |||
| 440 | SPRING, BLOCK K1122-81430 Discontinued | 1 | $5.72 | |||
| 450 | WASHER,BLOCK THR K1122-81440 | 1 | $6.01 | |||
| 460 | CAP-VENT ASSY K1122-81450 | 1 | $9.85 | |||
| 470 | FITTING, O-RING K1122-81460 | 1 | $42.50 | |||
| 480 | CASTLE NUT 5/16- K1122-81470 | 1 | $9.13 | |||
| 490 | COTTER PIN K1122-81480 | 1 | $6.12 | |||
| 500 | SEAL - LIP K1122-81490 | 1 | $9.33 | |||
Showing 1 to 50 of 50 parts
