Scroll to zoom Click a part # to view details

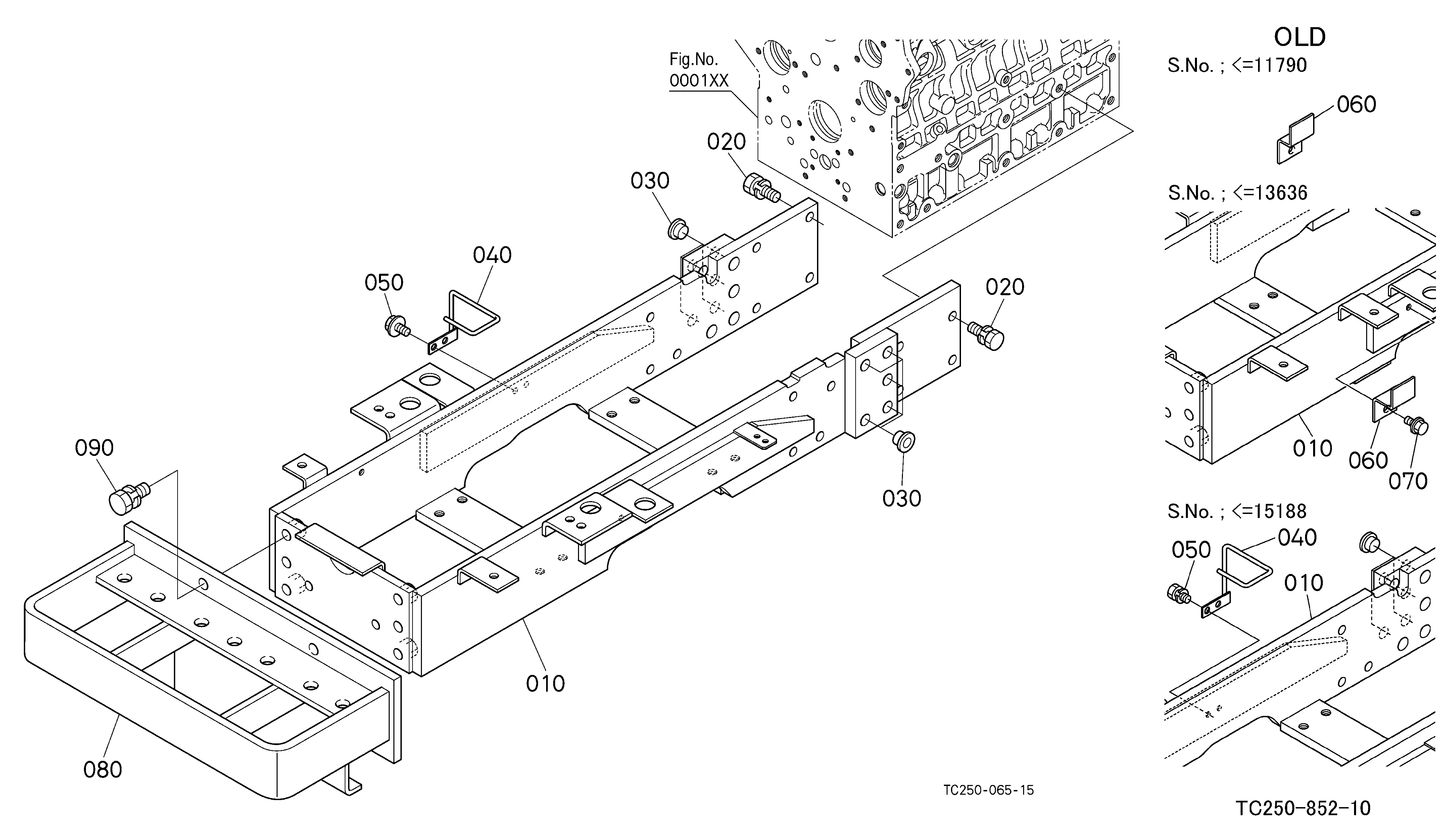

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY HOUSING, CL TC250-99200 | 1 | $3,865.38 | |||
| 020 | Transmission Bushing 44512-13420 08511-01915 | 1 | $5.40 | |||
| 030 | PLUG 15512-96010 | 1 | $14.05 | |||
| 040 | Seal Washer 04717-02150 | 1 | $2.16 | |||
| 050 | PLUG KIT 32430-14270 | 1 | $16.23 | |||
| 070 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 080 | PLUG, BLIND 32210-27580 | 1 | $2.72 | |||
| 090 | PIN 05012-01018 | 1 | $1.51 | |||
| 100 | STUD 01574-51265 | 1 | $3.94 | |||
| 110 | BOLT 01133-51295 | 1 | $4.14 | |||
| 120 | BOLT, CUP-SQ-NK 01574-51285 | 1 | $5.94 | |||
| 130 | BOLT 01133-51265 | 1 | $3.03 | |||
| 140 | Spring Washer (Lock Washer) 04512-50120 | 1 | $0.16 | |||
| 150 | Nut Fastener 70030-35018 02176-50120 | 1 | $1.03 | |||
| 160 | PLUG 31351-38720 | 1 | $4.48 | |||
| 170 | HOLDER, BEARING TC230-20252 TC233-20250 | 1 | $241.02 | |||
| 180 | PIN, STRAIGHT (C 05011-00818 05012-00818 | 1 | $1.31 | |||
| 190 | BOLT 01133-51055 | 1 | $2.42 | |||
| 200 | PLUG TD030-12230 | 1 | $6.03 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-C42003-85976 C42003 TRANSMISSION CASE
View Diagram -
DIAG-J11502-85976 J11502 3-POINT LINKAGE 2 (LIFT ROD)
View Diagram -
DIAG-F10503-85976 F10503 FRONT AXLE FRAME
View Diagram
