Kubota L4300F C40101 CLUTCH HOUSING Parts Diagram
Exploded-view parts diagram "C40101 CLUTCH HOUSING" for the Kubota L4300F. 19 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY HOUSING,CLU TC030-99200 TC030-99205 | 1 | $3,411.62 | |||
| 020 | Transmission Bushing 44512-13420 08511-01915 | 1 | $9.04 | |||
| 030 | PLUG 15512-96010 | 1 | $10.36 | |||
| 040 | Seal Washer 04717-02150 | 1 | $3.59 | |||
| 050 | PLUG KIT 32430-14270 | 1 | $16.23 | |||
| 070 | WASHER,SPRING 04512-60140 04512-70140 | 1 | $0.36 | |||
| 080 | PLUG, BLIND 32210-27580 | 1 | $2.72 | |||
| 090 | PIN 05012-01018 | 1 | $1.51 | |||
| 100 | STUD 01574-51265 | 1 | $3.94 | |||
| 110 | BOLT 01133-51295 | 1 | $4.14 | |||
| 120 | BOLT, CUP-SQ-NK 01574-51285 | 1 | $5.94 | |||
| 130 | BOLT 01133-51265 | 1 | $3.03 | |||
| 140 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
| 150 | Nut Fastener 70030-35018 02176-50120 | 1 | $1.07 | |||
| 160 | PLUG 31351-38720 | 1 | $4.48 | |||
| 170 | HOLDER BEARING TC030-20250 TC030-20254 | 1 | $315.99 | |||
| 180 | PIN, STRAIGHT (C 05011-00818 05012-00818 | 1 | $1.31 | |||
| 190 | BOLT 01133-51055 | 1 | $3.14 | |||
| 200 | PLUG 34070-12230 | 1 | $11.03 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

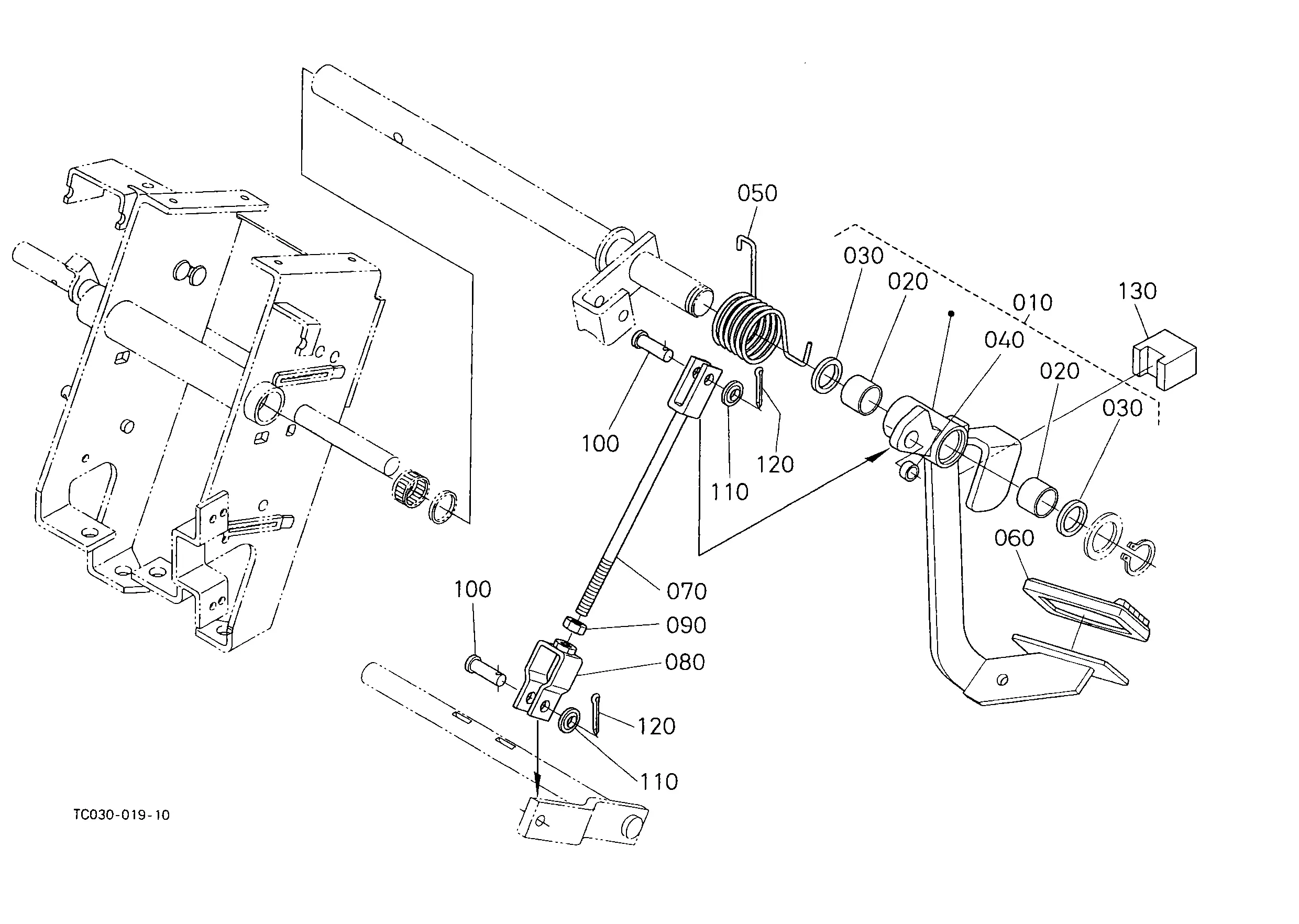

DIAG-C30100-85412 C30100 CLUTCH PEDAL
View Diagram -

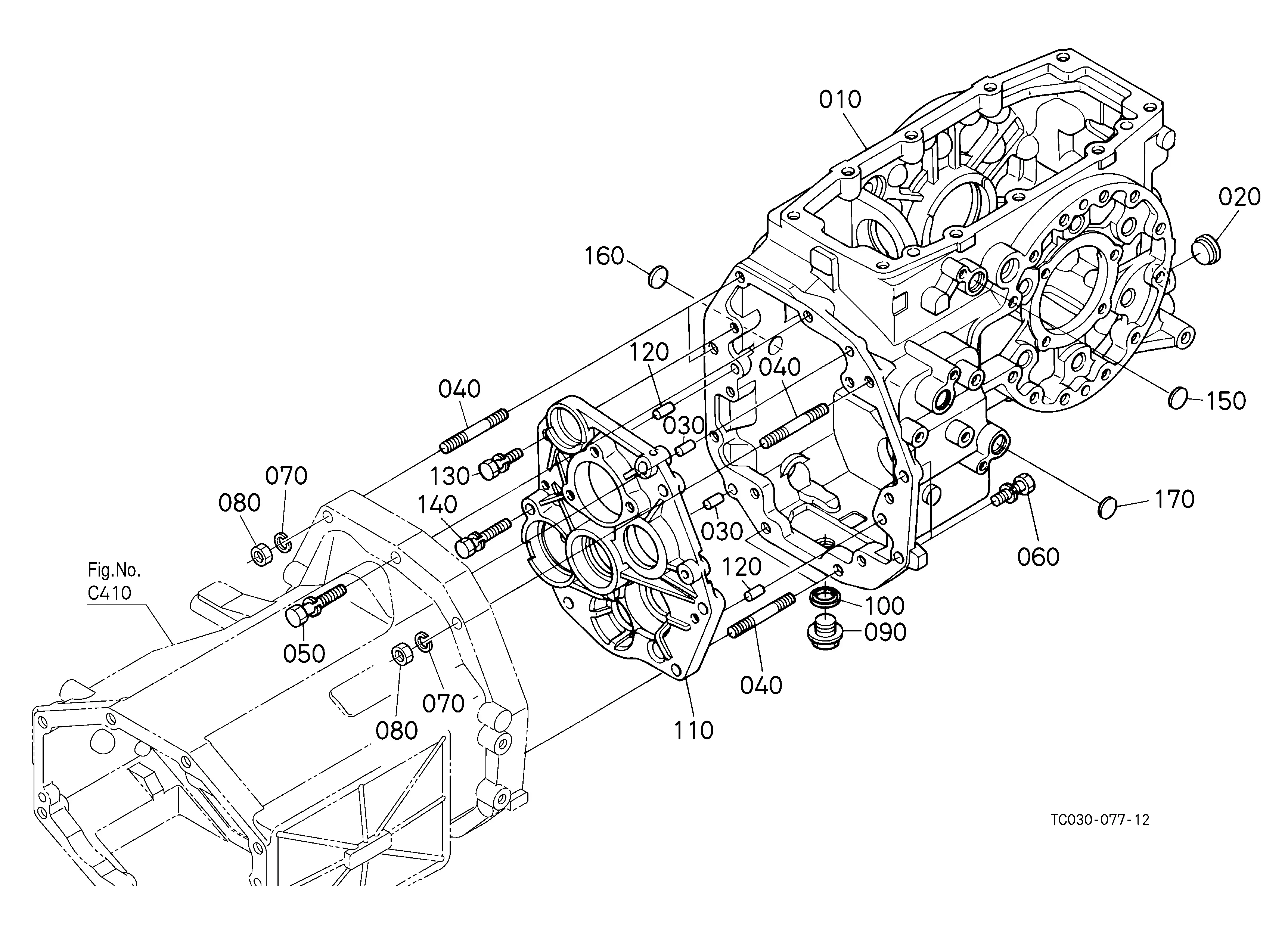

DIAG-C42001-85412 C42001 TRANSMISSION CASE
