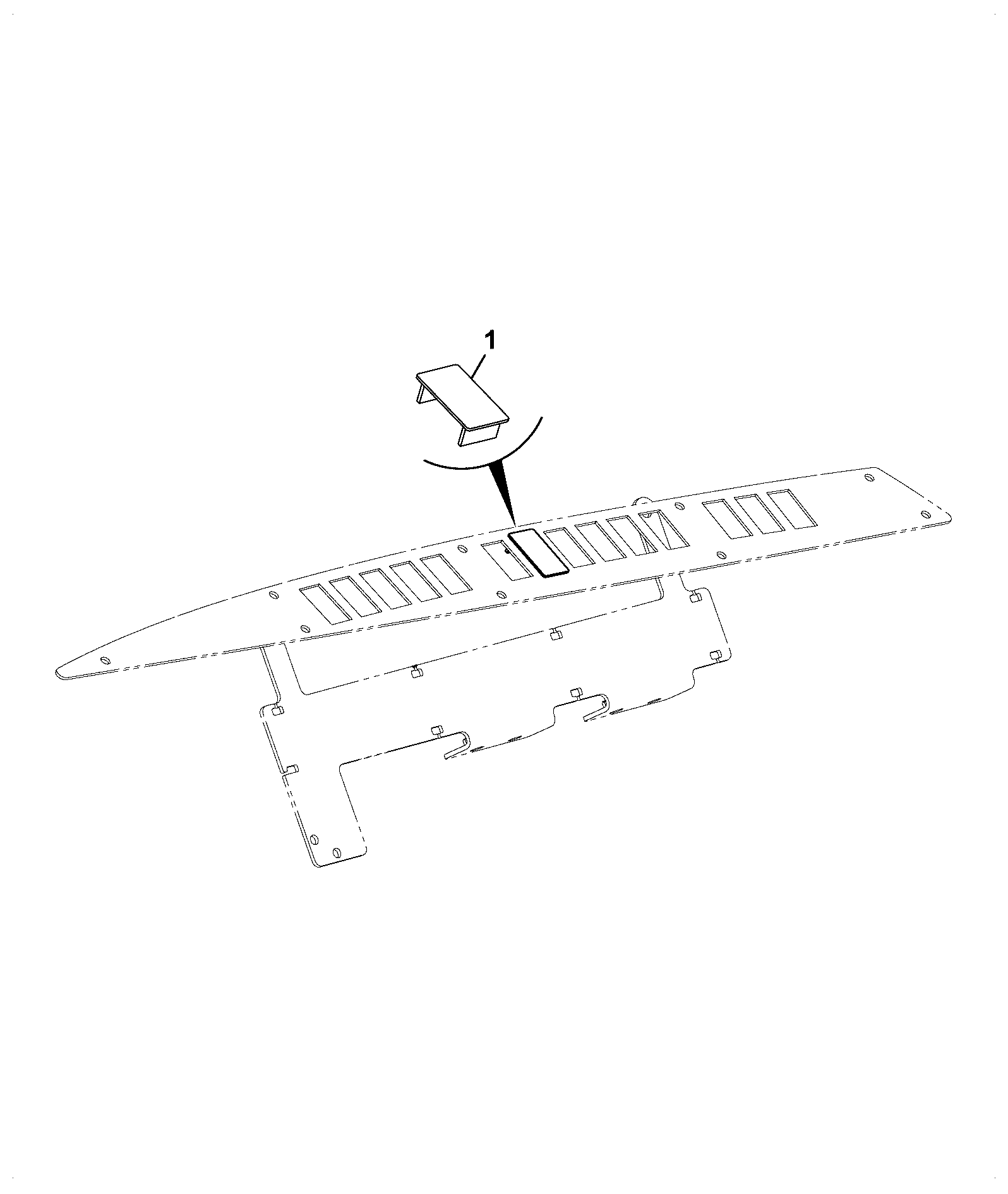

C390-45-1 OTHER ELECTRICAL ITEMS HYDRAULICS NO CONSTANT FLOW Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	BLANK panel switch 701/80265	1	4 IN STOCK	$9.61	Quantity
2	SWITCH BASE LINK PINS 4-5 701/80557	1	AVAILABLE TO ORDER	$64.69	Quantity

Showing 1 to 2 of 2 parts

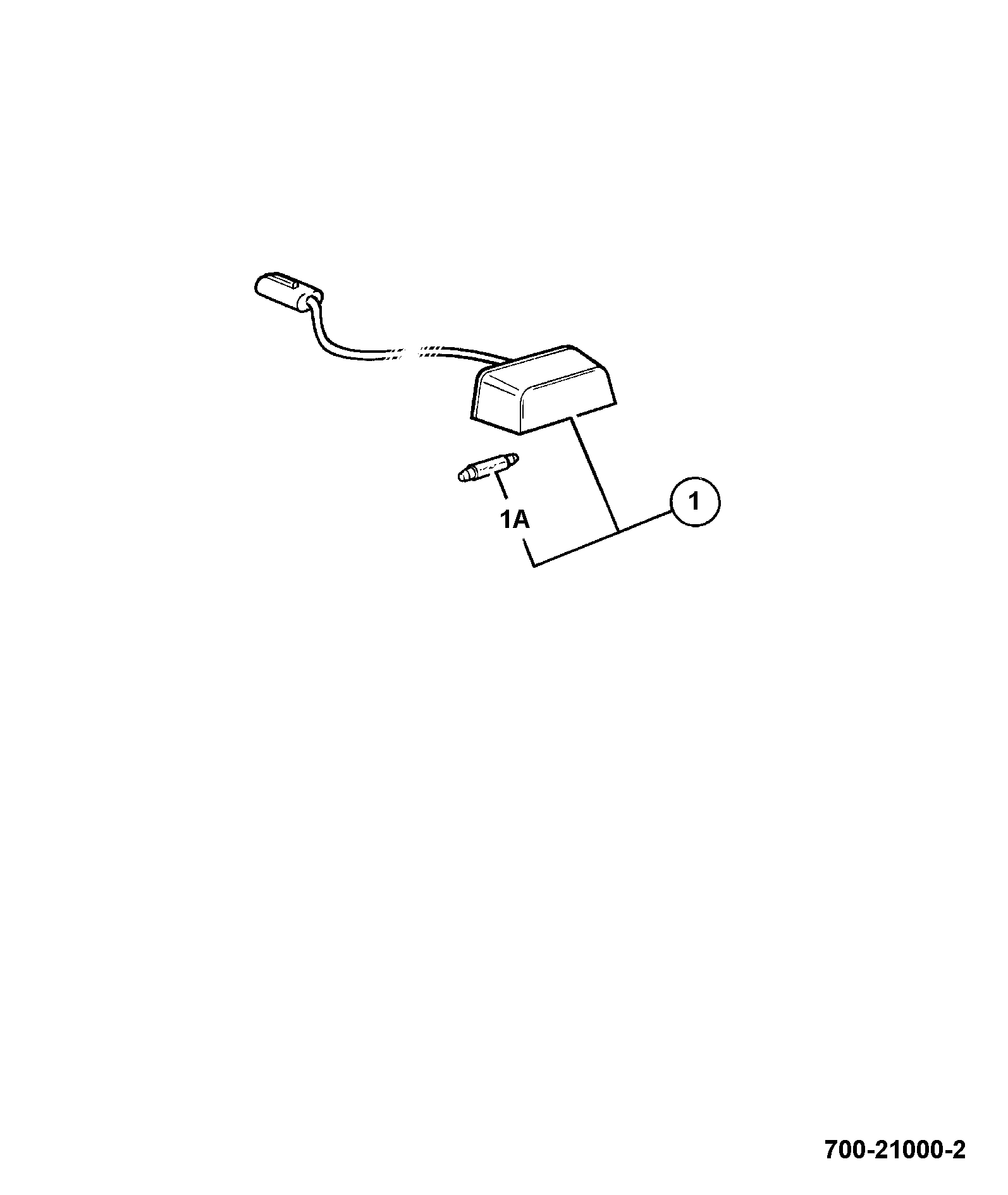

DIAG-C390-40-1-404393 C390-40-1 OTHER ELECTRICAL ITEMS LAMP NUMBER PLATE, 12V
View Diagram

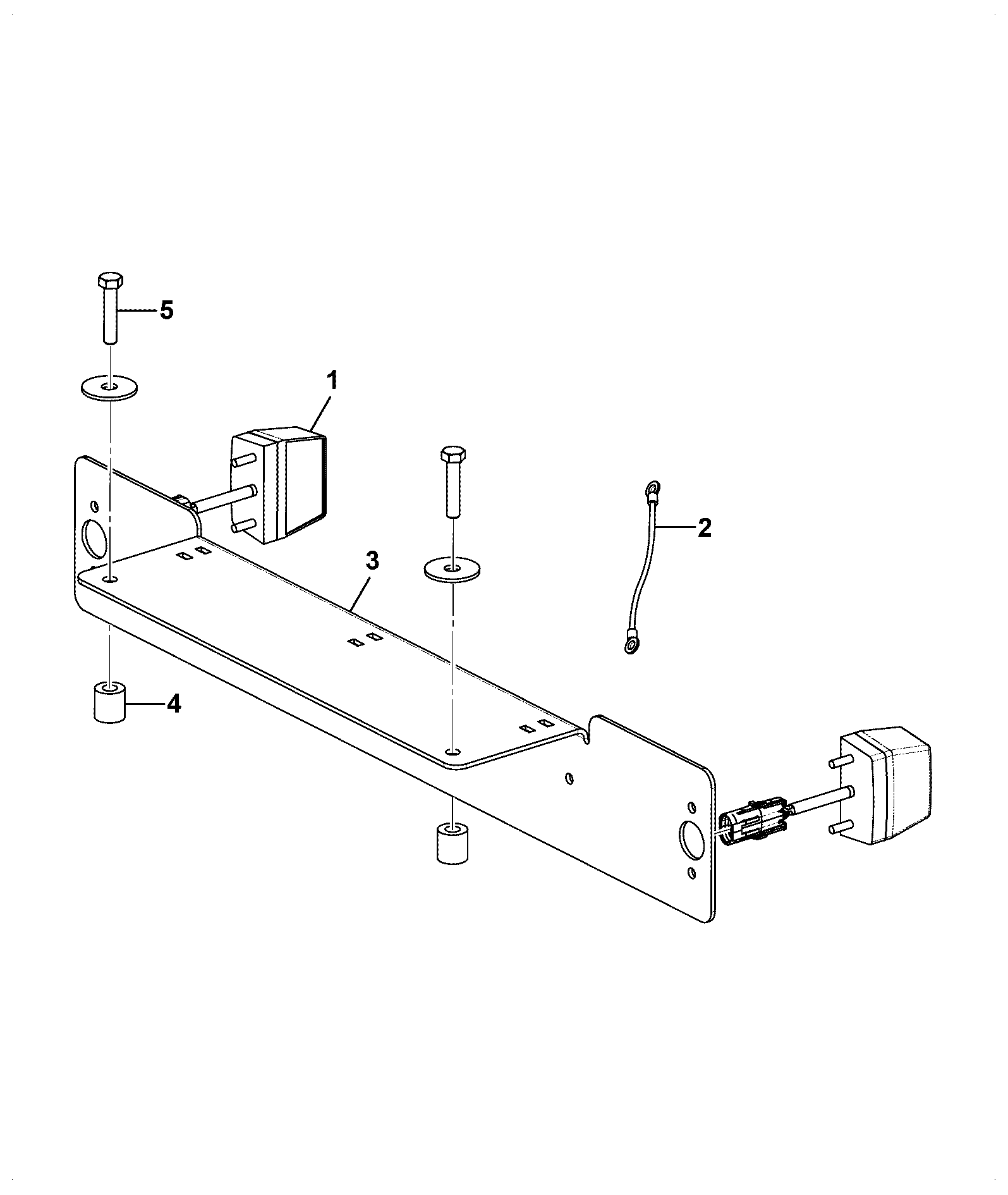

DIAG-C390-35-1-404393 C390-35-1 OTHER ELECTRICAL ITEMS ASSEMBLY NUMBER PALTE ( WITH ROOF )
