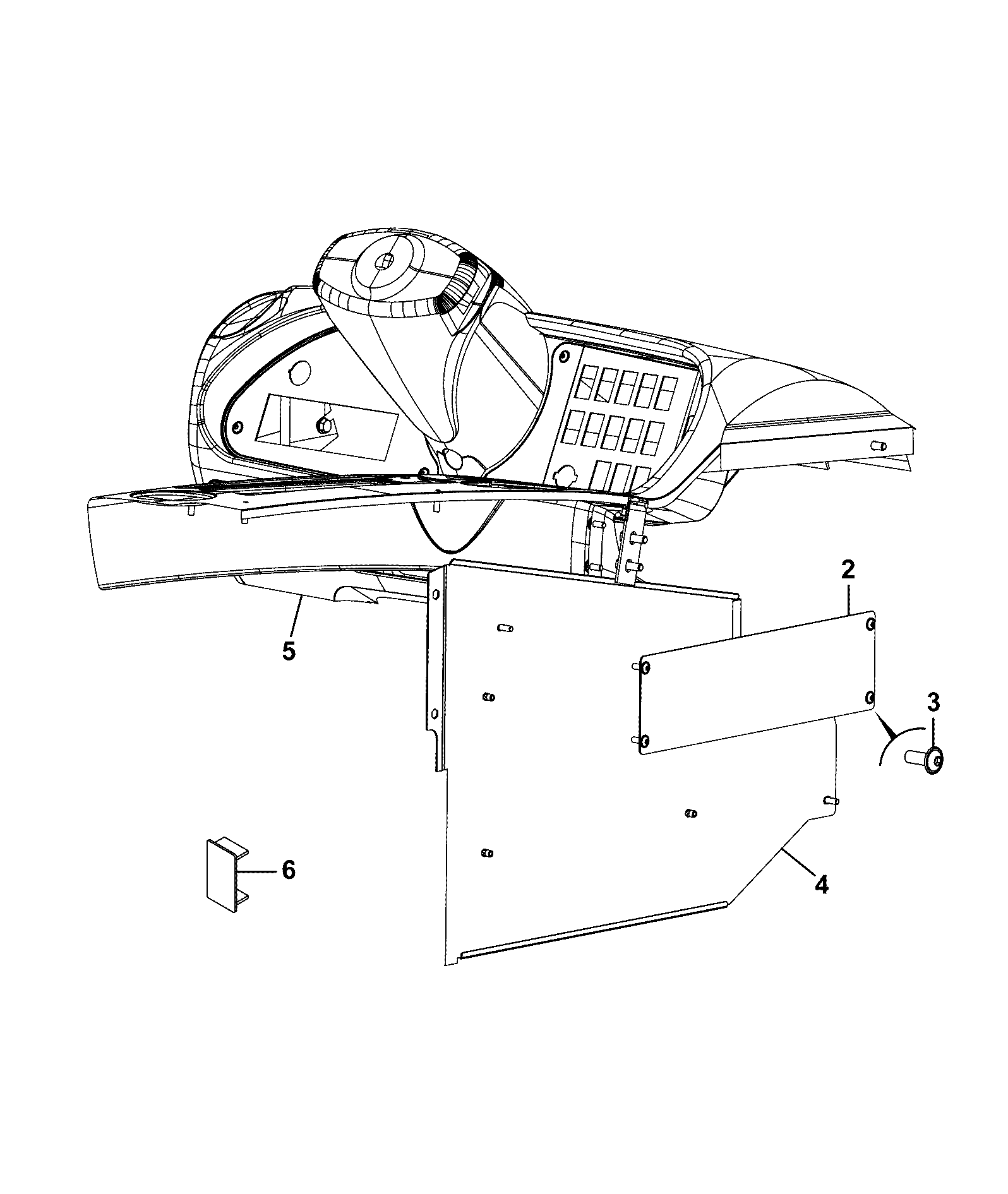

C390-25-1 OTHER ELECTRICAL ITEMS NO HEATER PANEL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	PAINTED AIR INTAKE BLANK BLACK 296/02573	1	AVAILABLE TO ORDER	$135.63	Quantity
3	'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559	1	2 IN STOCK	$8.07	Quantity

Showing 1 to 2 of 2 parts
