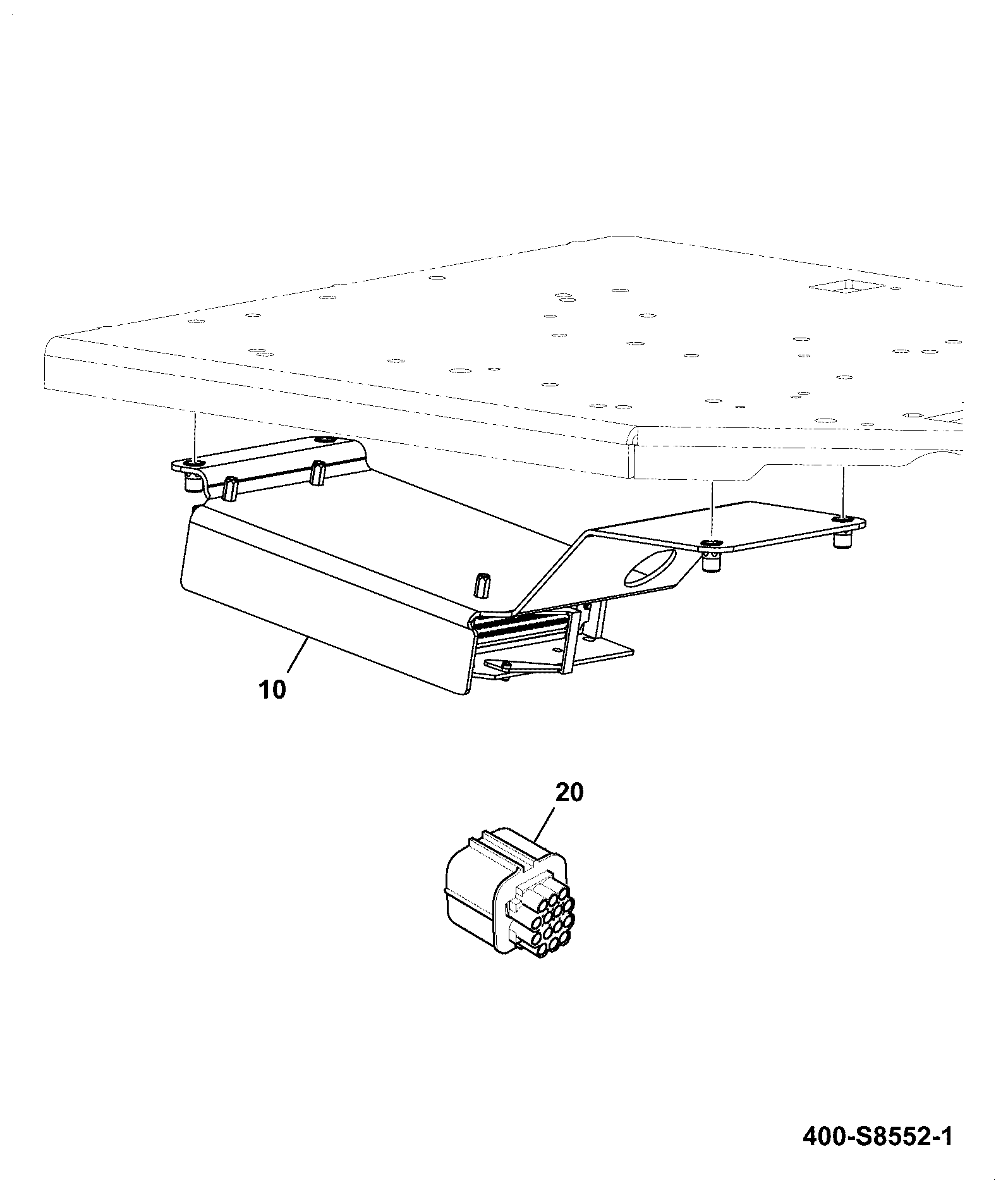

C360-5-1 ELECTRICAL CONTROL UNITS INSTALLATION CM0711, 2 SOCKETS BLACK/BLACK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	PURCHAED ECU CM0711 (T4i) 728/D2289	1	AVAILABLE TO ORDER	$984.07	Quantity
30	M6x30 BUTTON HEAD 480hr B 334/L6709	1	AVAILABLE TO ORDER	$1.36	Quantity

Showing 1 to 2 of 2 parts
