Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| RUBR RECIRC BACKSTOP SEAL 334/U3973 | 1 | $5.88 | ||||
| 1 | HEATER UNIT OS 334/U5357 | 1 | $1,112.14 | |||
| 3 | MISC FRESH DUCT OS 334/S0051 | 1 | $17.09 | |||
| 4 | MISC RECIRC FILTER ABI OS 334/R3159 | 1 | $173.84 | |||
| 5 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 7 | Heater Control Panel 333/R4642 334/D2557 | 1 | $142.97 | |||
| 8 | NUT THERMOSTAT SWI (P710-T) 003055 997/16500 | 1 | $17.67 | |||
| 9 | Knob Heater Adjuster 331/36910 | 1 | $50.94 | |||
| 10 | GA HVAC EXIT DUCT OS 335/F3345 | 1 | $210.35 | |||
| 12 | HVAC EXIT DUCT TO STBASE 335/D4037 | 1 | $5.27 | |||
| 13 | HVAC EXT DUCT TO HVAC RH 335/D4041 | 1 | $5.27 | |||
| 14 | SIDE MLD DUCT TO ST BASE 335/D4028 | 1 | $1.60 | |||
| 15 | HVAC EXIT DUCT TO STBASE 335/D4036 | 1 | $1.70 | |||
| 16 | DISPLAY MLD TO DUCT SEAL 335/D4027 | 1 | $1.60 | |||
| 17 | A SURFACE DUCT SEAL 1 OS 335/D4550 | 1 | $7.69 | |||
| 18 | HVAC A SURFACE DUCT OS 335/D9168 | 1 | $214.44 | |||
| 19 | A SURFACE DUCT SEAL 2 OS 334/V0632 | 1 | $9.38 | |||
| 20 | NUT M6 LOCK + WASHER 1370/0108D | 1 | $1.55 | |||
| 21 | MISC RECIRC FILTER SEAL O 334/T9302 | 1 | $18.30 | |||
| 22 | MISC RECIRC FILTER DOOR S 334/T8723 | 1 | $18.79 | |||
| 24 | CAP SCREW M6x20 (P313) (Reinstate) 1391/3205D | 1 | $6.47 | |||
| 25 | 6.3 x 19 SELF TAP 332/U2148 | 1 | $0.50 | |||
| 26 | MISC RECIRC DOOR LATCH SE 334/U1082 | 1 | $2.56 | |||
| 27 | BOLT FLANGED HEX M6 x 12 1317/3201D | 1 | $3.43 | |||
| 28 | BOLT 1317/3208D | 1 | $12.76 | |||
| 30 | (W) M6 HARDENED WASHER 1422/0006D | 1 | $2.28 | |||
| 32 | 7/16 STAR WASHER (P461)-012259 331/36632 | 1 | $4.87 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-C340-55-5-397661 C340-55-5 HEATER/AIR CON ASSEMBLY INSTALLATION
View Diagram -

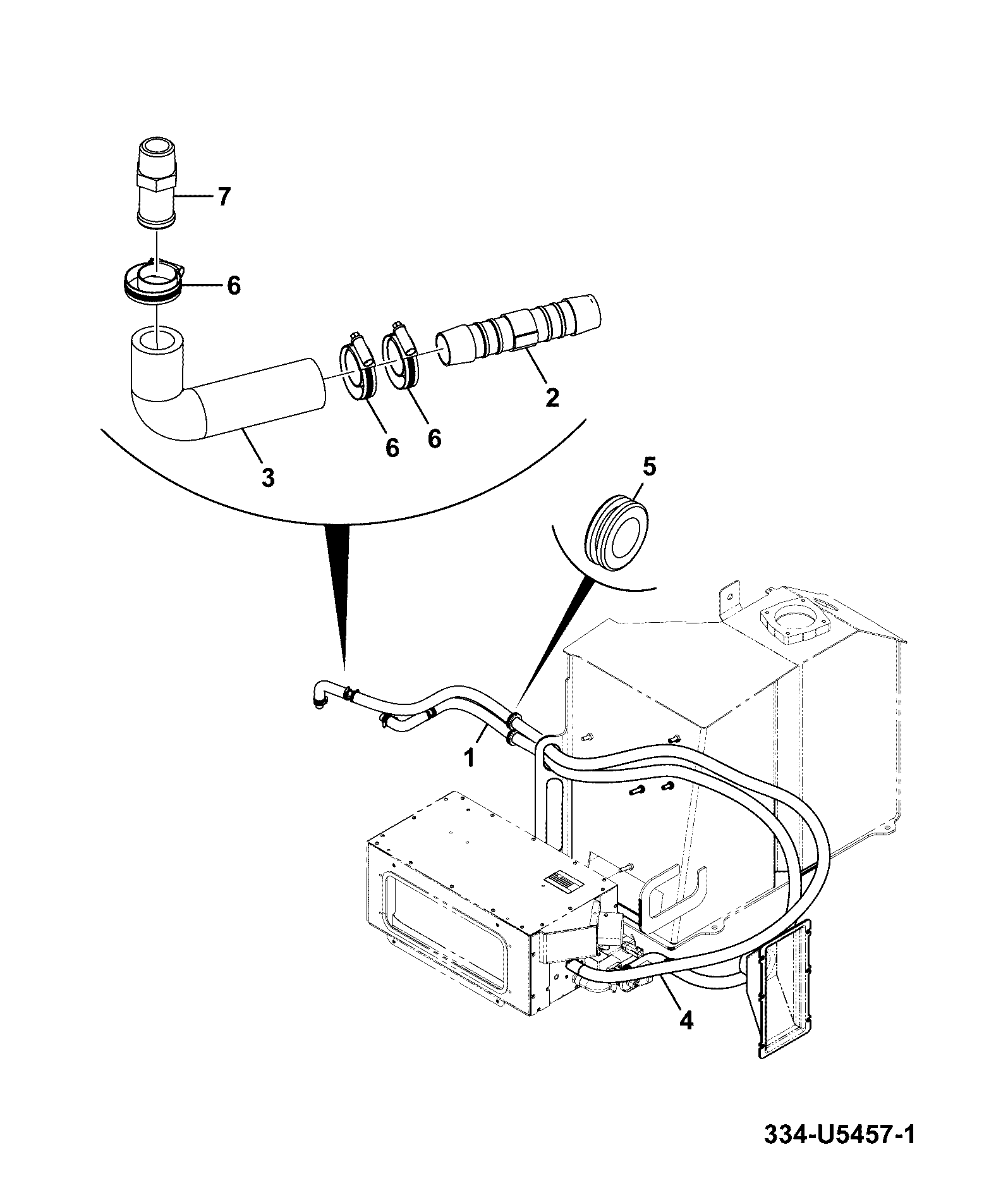

DIAG-C340-60-1-397661 C340-60-1 HEATER/AIR CON ASSEMBLY INSTALLATION HEATER HOSES
View Diagram -

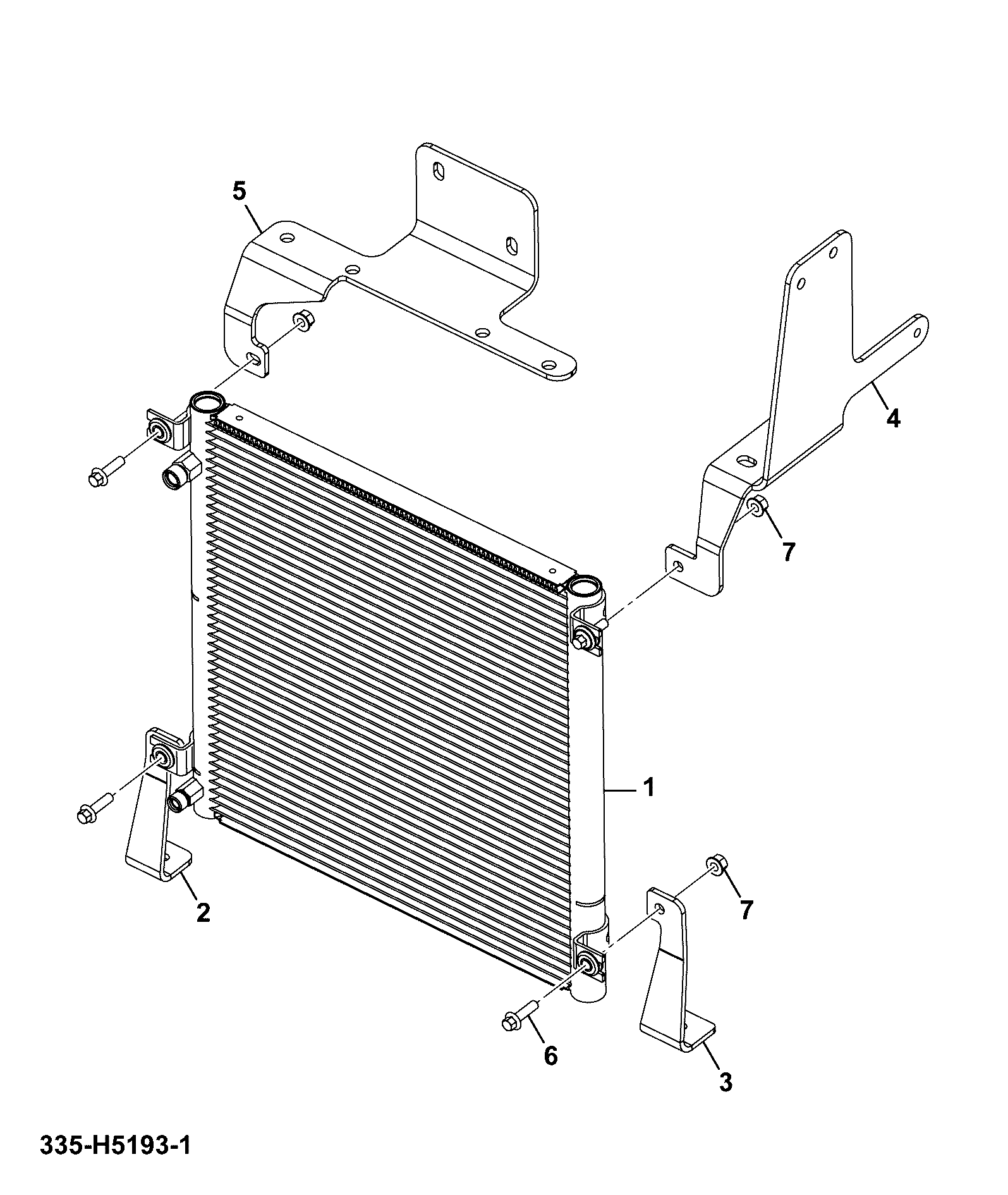

DIAG-C340-50-1-397661 C340-50-1 HEATER/AIR CON ASSEMBLY CONDENSER ASSEMBLY, HVAC
View Diagram
