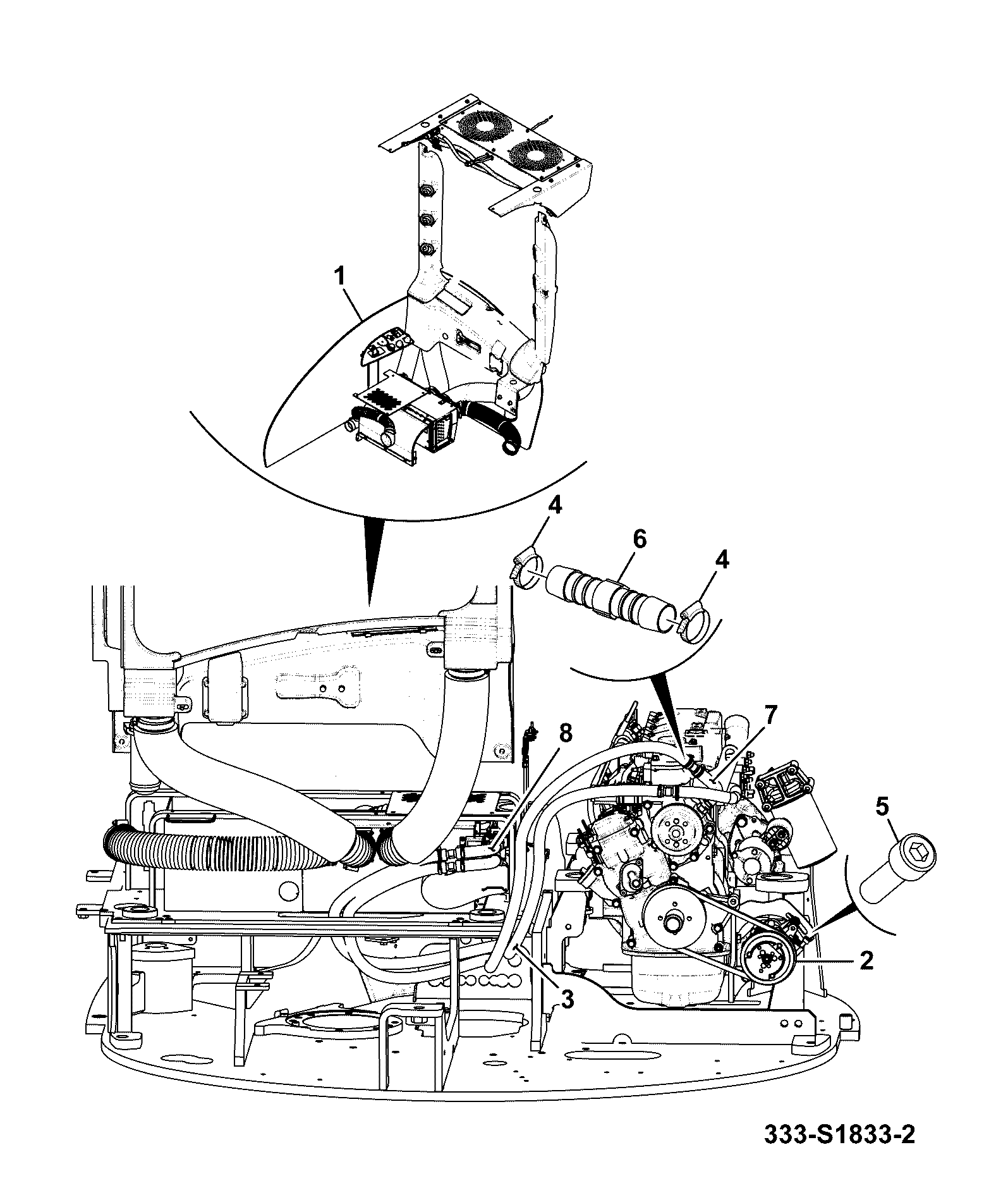

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CAP SCREW M6x20 (P313) (Reinstate) 1391/3205D | 1 | $6.47 | ||||
| 1 | A.B.I. HVAC AIRCON KIT 333/T2985 | 1 | $3,185.41 | |||
| 2 | DIAGNOSTIC REAR TRIM PANEL: A/C 333/U1586 | 1 | $420.36 | |||
| 3 | LH C-POST MOULDING 332/L0579 | 1 | $128.36 | |||
| 4 | RH C-POST MOULDING 332/L0580 | 1 | $174.24 | |||
| 5 | A/C SEATBASE SIDE DUCT 333/T0575 | 1 | $124.15 | |||
| 6 | A/C RUBBER U-DUCT 333/T0606 | 1 | $202.91 | |||
| 7 | 70 DIA INS. PVC DUCTING - 720MM 333/T6099 | 1 | $164.01 | |||
| 8 | 70 DIA PVC DUCTING - 600MM 333/S3773 | 1 | $58.19 | |||
| 9 | 44 DIA PVC DUCTING - 1400 333/S3624 334/V3940 | 1 | $34.13 | |||
| 10 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 11 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 12 | SWITCH PANEL 12V 2POS 701/E0001 | 1 | $82.28 | |||
| 13 | ACTUATOR aircon ETCHED 701/E8960 | 1 | $16.72 | |||
| 14 | DECAL RH POD ELITE AIRCON IMMOB 333/T2847 | 1 | $29.02 | |||
| 15 | COVER SEAT BASE RIGHT 333/U6008 | 1 | $125.51 | |||
| 16 | SEATBASE FOAM 333/S3480 | 1 | $71.76 | |||
| 17 | (P) BHL- OBSOLETES ADAPTOR 141/00495 | 1 | $80.13 | |||
| 19 | SWIVEL AIR VENT 331/31000 | 1 | $15.30 | |||
| 20 | BLANK RADIO APERTURE 336/B6341 | 1 | $4.51 | |||
| 21 | MOBILE PHONE RETAINER PLATE 332/J1441 | 1 | $5.71 | |||
| 23 | WASHER NYLON M6 823/00516 | 1 | $5.17 | |||
| 24 | SCREW 826/01519 | 1 | $2.17 | |||
| 25 | 'SCREW M4X10 BUTTON SOCKET (P493) RE-INS 826/10996 | 1 | $0.58 | |||
| 26 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 27 | CAPSCREW M8 x 30 LG 1391/3308D | 1 | $0.95 | |||
| 28 | CAPSCREW M8X80(KANBAN) 1391/3318D | 1 | $5.79 | |||
| 29 | CAP SCREW M8x45 1391/3311D | 1 | $18.70 | |||
| 30 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 31 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 32 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 33 | SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | |||
| 34 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 35 | HARNESS AIRCON 333/S7394 | 1 | $192.83 | |||
| 36 | HARNESS CONDENSOR 333/S7499 | 1 | $127.52 | |||
| 37 | (W) WA ADAPTOR PLATE 332/T3220 | 1 | $117.45 | |||
| 38 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 39 | NUT THERMOSTAT SWI (P710-T) 003055 997/16500 | 1 | $17.67 | |||
| 40 | LOCK WASHER 7/16 1417/0013Z | 1 | $2.41 | |||
| 41 | Knob Heater Adjuster 331/36910 | 1 | $50.94 | |||
| 42 | SWITCH, HEATER - 013797 267/85235 | 1 | $61.91 | |||
| 43 | EVAPORATOR UNIT BASE INSULATION 333/T4980 | 1 | $20.97 | |||
| 44 | LH C-POST INSULATION 333/T5962 | 1 | $13.98 | |||
| 45 | LH C-POST INSULATION 2 333/T7061 | 1 | $13.57 | |||
| 46 | AIR DUCT SEAL FOAM 333/T6103 | 1 | $5.52 | |||
| 48 | GROMMET BLIND (P712) 828/10407 | 1 | $10.61 | |||
| 50 | RELAY 716/30148 716/09800 | 1 | $31.53 | |||
| 52 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 53 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 54 | (W) GROMMET BLIND 2410/1313 | 1 | $7.69 | |||
Showing 1 to 50 of 50 parts
Related Assemblies
-
DIAG-C340-35-1-398164 C340-35-1 HEATER/AIR CON ASSEMBLY
View Diagram -
DIAG-C340-45-1-398164 C340-45-1 HEATER/AIR CON ASSEMBLY HVAC AIRCOND
View Diagram -
DIAG-C340-30-1-398164 C340-30-1 HEATER/AIR CON ASSEMBLY HVAC AIRCON
View Diagram
