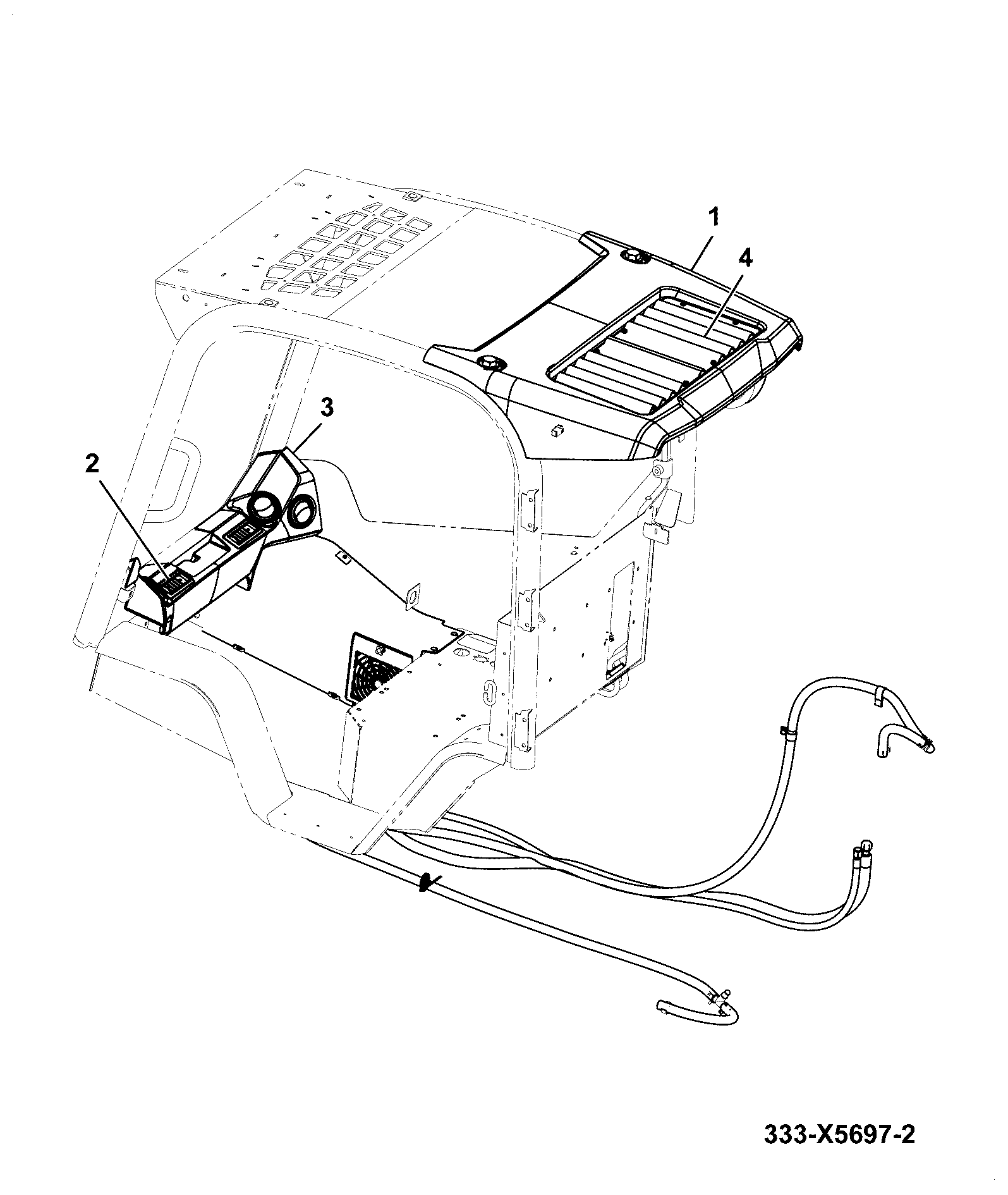

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | plenum 332/L8848 | 1 | $46.82 | |||
| 2 | FILTER PKG 332/X6963 | 1 | $18.78 | |||

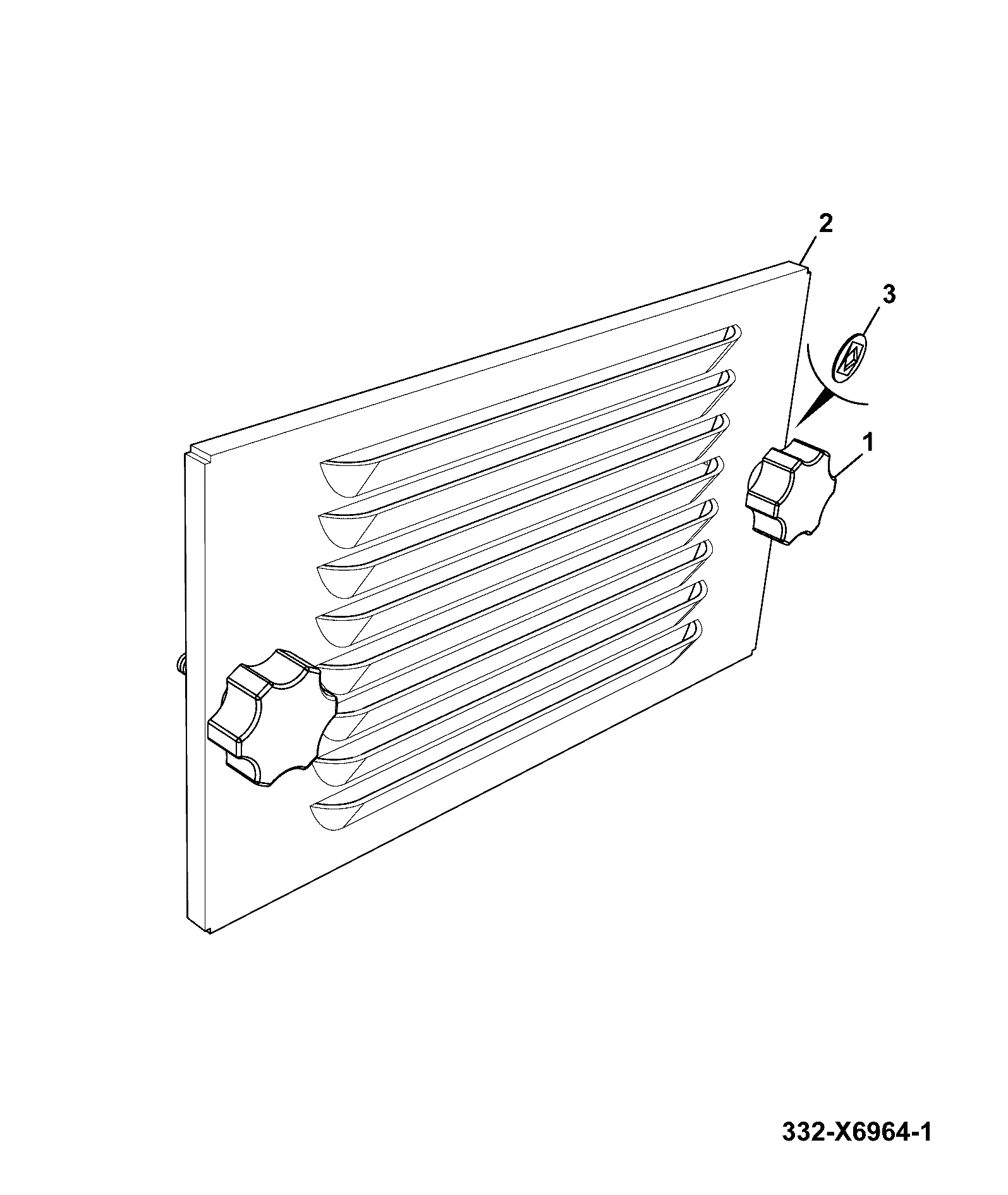

| 3 | FILTER COVER ASSEMBLY PKG 332/X6964 | 1 | $51.92 | |||
| 4 | LOUVRE PKG 332/X6983 | 1 | $33.21 | |||
| 5 | HEATER HOSES-11FT 332/X6910 | 1 | $67.60 | |||
| 6 | DRAIN FITTING-DUCK BILL 332/X0488 | 1 | $8.83 | |||
| 7 | SET SCREW M6x12 1315/0201Z | 1 | $1.63 | |||
| 8 | HOSE CLAMP PKG 332/X6945 | 1 | $4.23 | |||
| 9 | WEATHERSEAL 332/L3028 | 1 | $24.52 | |||
| 10 | HVAC SEAL 332/X5573 | 1 | $5.64 | |||
| 11 | HVAC BOX SEAL 332/X0344 | 1 | $20.97 | |||
| 12 | FIR TREE BUTTON 7x30mm 826/01592 | 1 | $3.21 | |||
| 13 | Water Valve - Heater 332/X6872 332/X0458 | 1 | $427.33 | |||
| 14 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 15 | KNOB - THREADED M5 X 20 332/L4551 | 1 | $6.02 | |||
| 16 | PUSH ON RETAINER 332/L4559 | 1 | $2.44 | |||
| 17 | BEADED TUBE-NIPPLE PKG 332/X6918 | 1 | $35.83 | |||
| 18 | WASHER 1/4 MEDIUM PLAIN 1411/0001Z | 1 | $0.14 | |||
| 19 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 20 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 21 | CABLE TIE 190mm 826/01347 | 1 | $3.37 | |||
| 22 | FIR TREE BUTTON 9.6x24mm 333/X5898 | 1 | $2.47 | |||
| 23 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 24 | SPIRAL HOSE GUARD 1000mm 332/H4448 647/12902 | 1 | $8.94 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-C340-25-1-395249 C340-25-1 HEATER/AIR CON ASSEMBLY FILTER COVER,ASSEMBLY
View Diagram -
DIAG-C340-30-5-395249 C340-30-5 HEATER/AIR CON ASSEMBLY HEATER FITTINGS ASSEMBLY, GL
View Diagram -
DIAG-C340-5-1-395249 C340-5-1 HEATER/AIR CON ASSEMBLY AIR CONDITIONING ASSEMBLY
View Diagram
