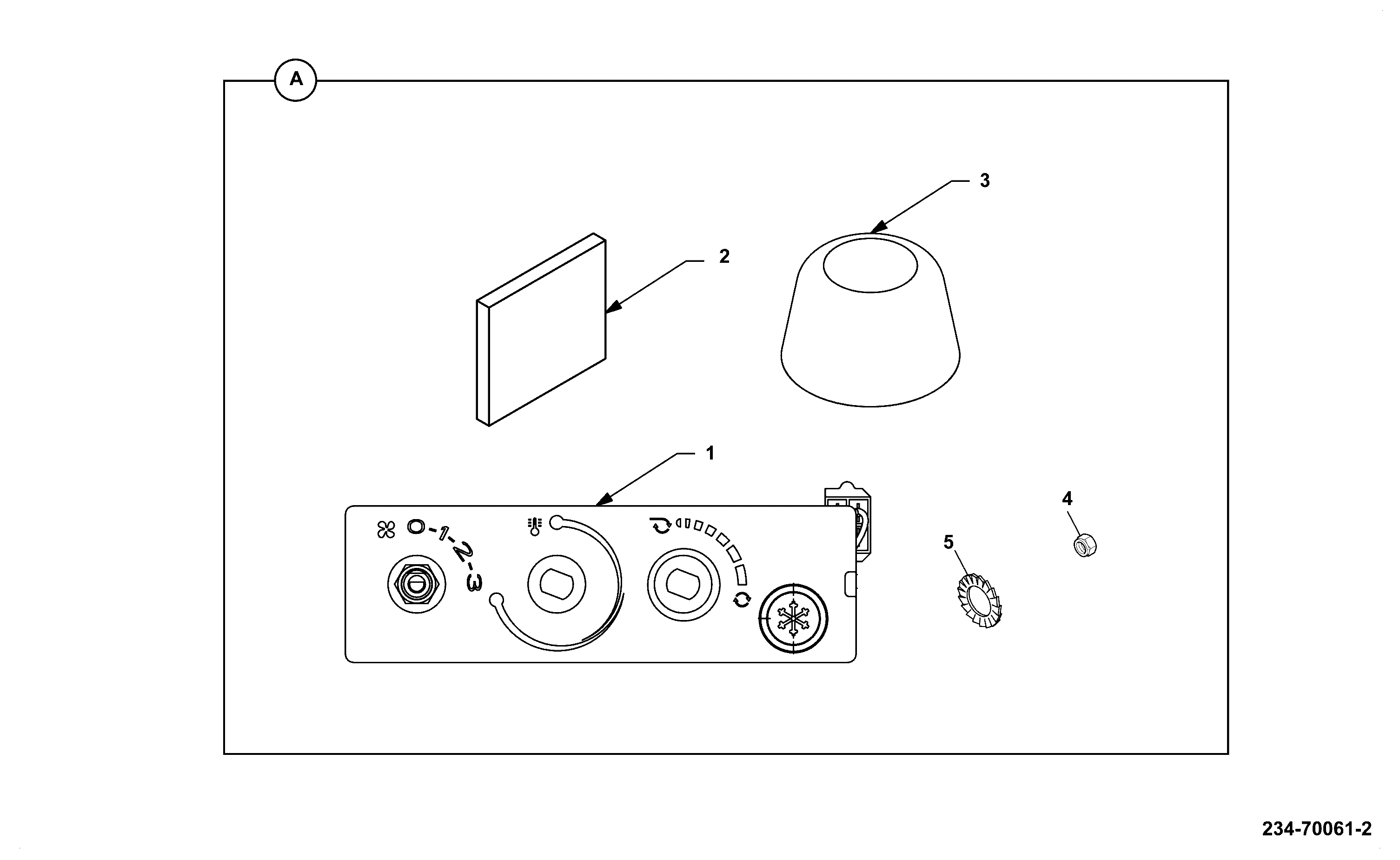

C340-21-1 HEATER/AIR CON ASSEMBLY HVAC COMPONENTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	HVAC CONTROL UNIT 333/R4645 400/G3252	1	AVAILABLE TO ORDER	$326.37	Quantity
2	NUT THERMOSTAT SWI (P710-T) 003055 997/16500	1	AVAILABLE TO ORDER	$17.67	Quantity
3	Knob Heater Adjuster 331/36910	1	AVAILABLE TO ORDER	$50.94	Quantity
4	FILTER KIT 30/925929 32/925443	1	AVAILABLE TO ORDER	$117.32	Quantity

Showing 1 to 4 of 4 parts
