Scroll to zoom Click a part # to view details

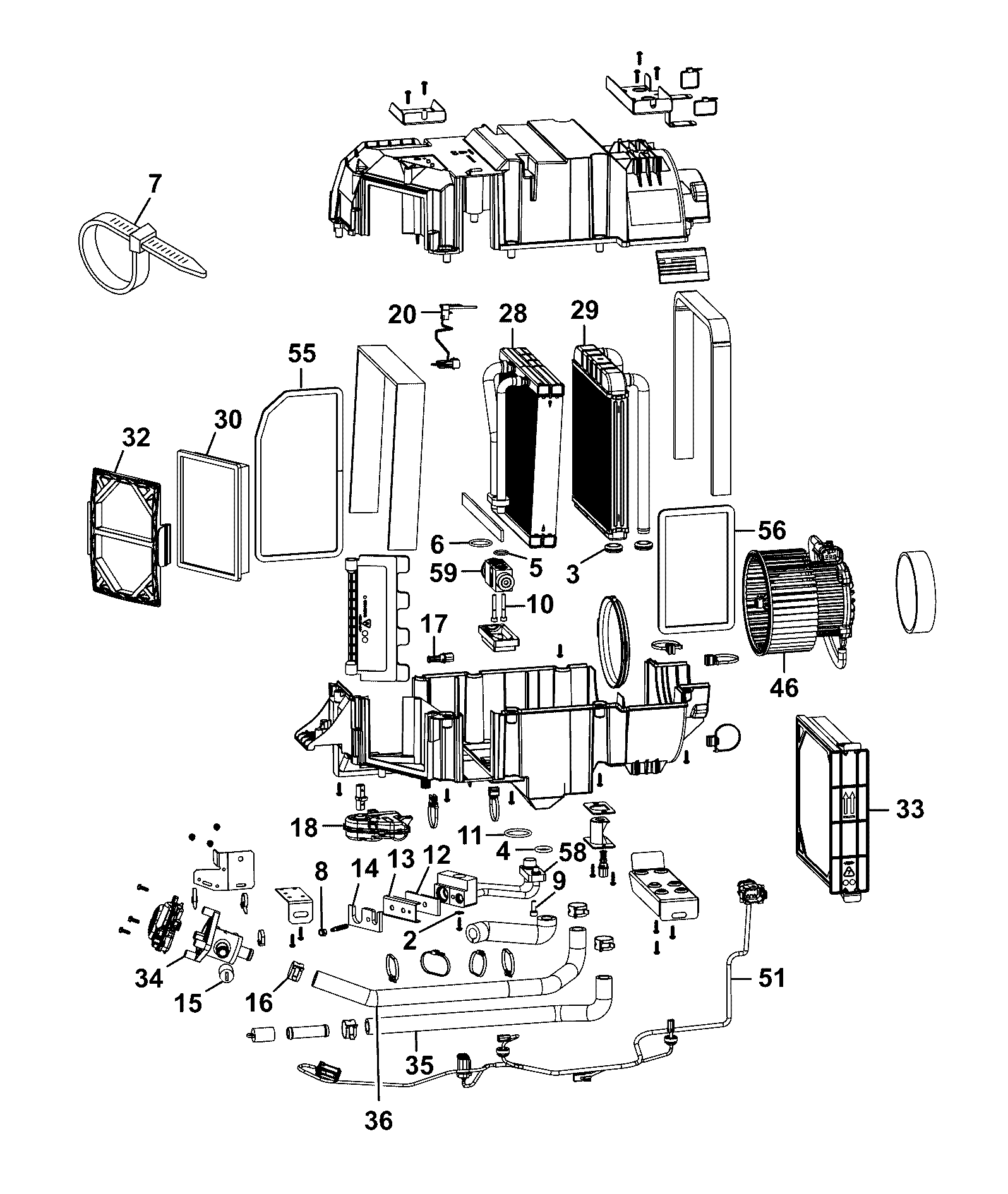

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (P) HVAC UNIT (P493) 400/B6602 401/V6406 | 1 | $2,375.52 | ||||
| 3 | Grommet 30/925898 | 1 | $10.82 | |||
| 4 | O RING 993/99561 | 1 | $4.83 | |||
| 5 | O RING 993/84100 | 1 | $15.60 | |||
| 6 | O RING 993/84300 993/99562 | 1 | $3.28 | |||
| 10 | SEAL 923/10099 | 1 | $27.87 | |||
| 11 | Seal 333/P8394 | 1 | $7.61 | |||
| 12 | PLATE CLAMP 30/925913 | 1 | $8.23 | |||
| 13 | PLATE CLAMP TXV 30/925914 | 1 | $31.48 | |||
| 14 | Cap 923/10138 | 1 | $12.71 | |||
| 15 | CLIP, HOSE 30/926319 | 1 | $19.52 | |||
| 16 | THERMISTOR 400/01980 332/R0181 | 1 | $89.36 | |||
| 18 | Sensor 400/01120 | 1 | $114.68 | |||
| 21 | Bushing 400/04060 | 1 | $21.70 | |||
| 22 | Gasket 400/04061 | 1 | $20.85 | |||
| 23 | Collar 400/05846 | 1 | $20.07 | |||
| 24 | Gasket 400/04062 | 1 | $1.52 | |||
| 25 | Coil evaporator 400/01981 | 1 | $528.62 | |||
| 26 | Coil heater 400/01982 | 1 | $275.18 | |||
| 28 | Fresh air filter bracket 400/01122 | 1 | $45.46 | |||
| 29 | Common filter 400/01128 | 1 | $176.48 | |||
| 30 | Water valve 400/01129 | 1 | $164.15 | |||
| 31 | Hose 400/01130 | 1 | $48.73 | |||
| 32 | Hose 400/01131 | 1 | $55.05 | |||
| 33 | Tube 400/05847 | 1 | $19.94 | |||
| 39 | Valve 400/04063 | 1 | $132.49 | |||
| 40 | Rubber seal 400/04064 | 1 | $12.82 | |||
| 42 | Motor blower 400/01983 | 1 | $769.11 | |||
| 43 | Gasket 400/04065 | 1 | $2.15 | |||
| 44 | Gasket 400/04066 | 1 | $7.61 | |||
| 47 | Wire harness HVAC 400/01124 | 1 | $159.21 | |||
| 49 | Heater pipe assembly 400/02740 | 1 | $155.91 | |||
| 50 | Gasket, Motor 400/05848 | 1 | $6.42 | |||
| 51 | Re-Circ seal 400/01126 | 1 | $28.90 | |||
| 52 | Outlet seal 400/01127 | 1 | $23.83 | |||
| 54 | 'MISC FRESH AIR FILTEROS (P572)100112808 400/E7179 | 1 | $69.97 | |||
| 55 | Gasket 400/04069 | 1 | $9.72 | |||
| 56 | Gasket 400/04070 | 1 | $1.23 | |||
| 58 | Actuator, Rotor 400/05849 | 1 | $280.94 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-
DIAG-C340-15-1-401621 C340-15-1 HEATER/AIR CON ASSEMBLY UNIT HVAC , WALL MOUNT
View Diagram -

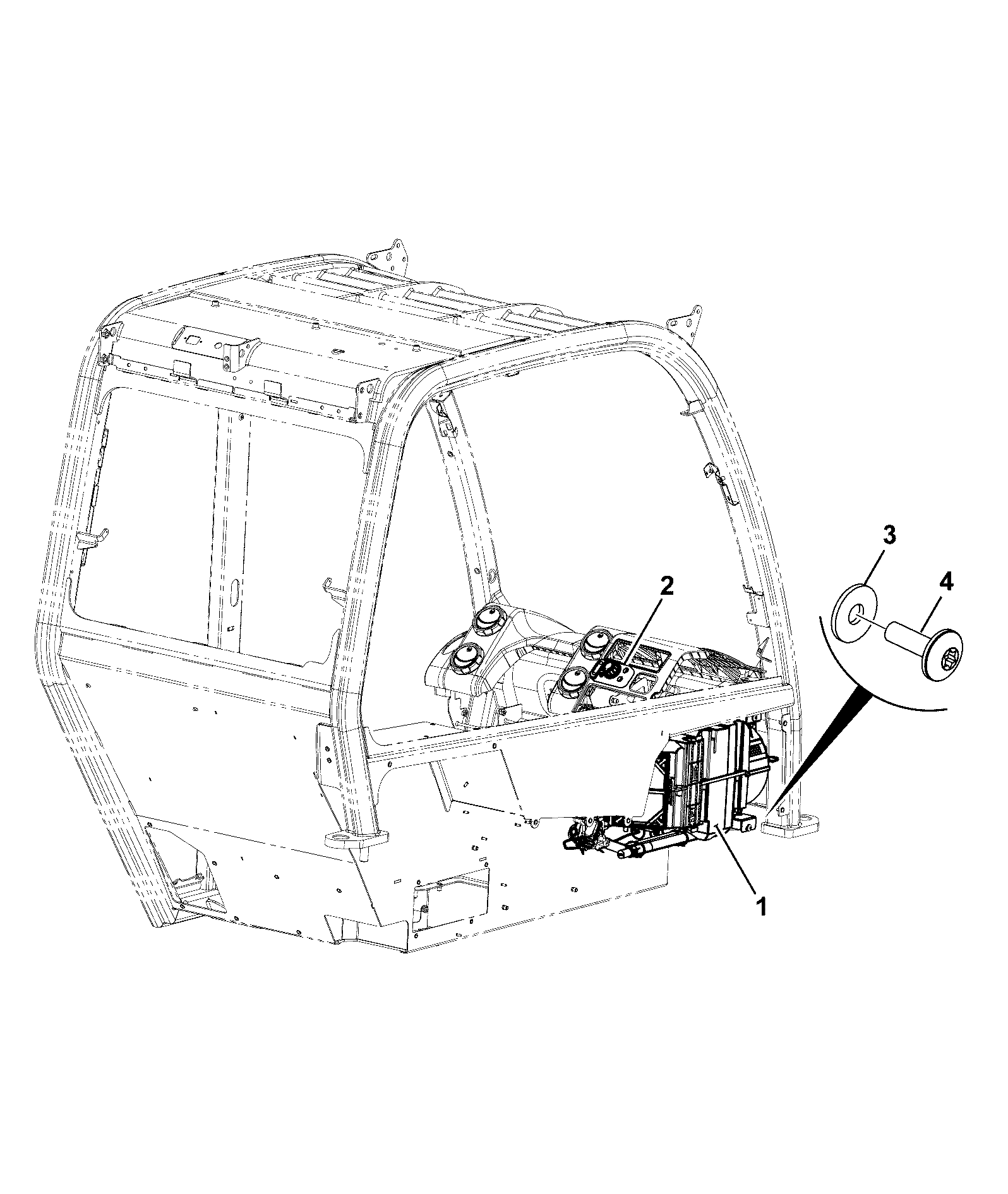

DIAG-C340-50-1-401621 C340-50-1 HEATER/AIR CON ASSEMBLY INSTALLATION HEATER UNIT
View Diagram -
DIAG-C340-10-1-401621 C340-10-1 HEATER/AIR CON ASSEMBLY UNIT HEATER , WALL MOUNT
View Diagram
