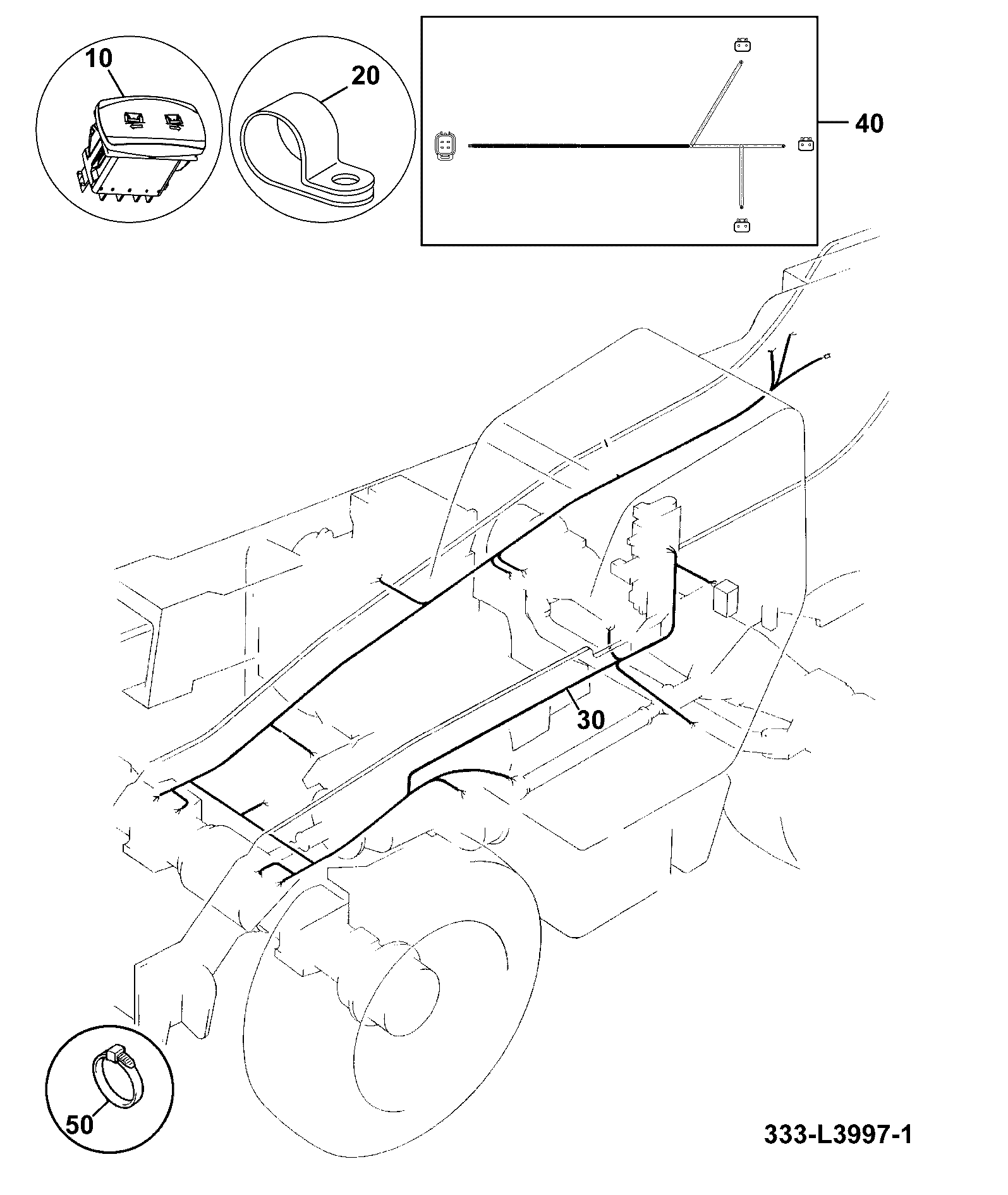

C330-65-1 SWITCHES INSTALLATION NON-ISOLATED SWAY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
20	PCLIP (P564) 821/00481	1	AVAILABLE TO ORDER	$32.09	Quantity
30	LINK 717/20124	1	AVAILABLE TO ORDER	$12.28	Quantity
40	SWAY HARNESS 721/G0809	1	AVAILABLE TO ORDER	$187.38	Quantity
50	CABLE TIE-225MM 826/01092	1	AVAILABLE TO ORDER	$4.11	Quantity

Showing 1 to 4 of 4 parts
