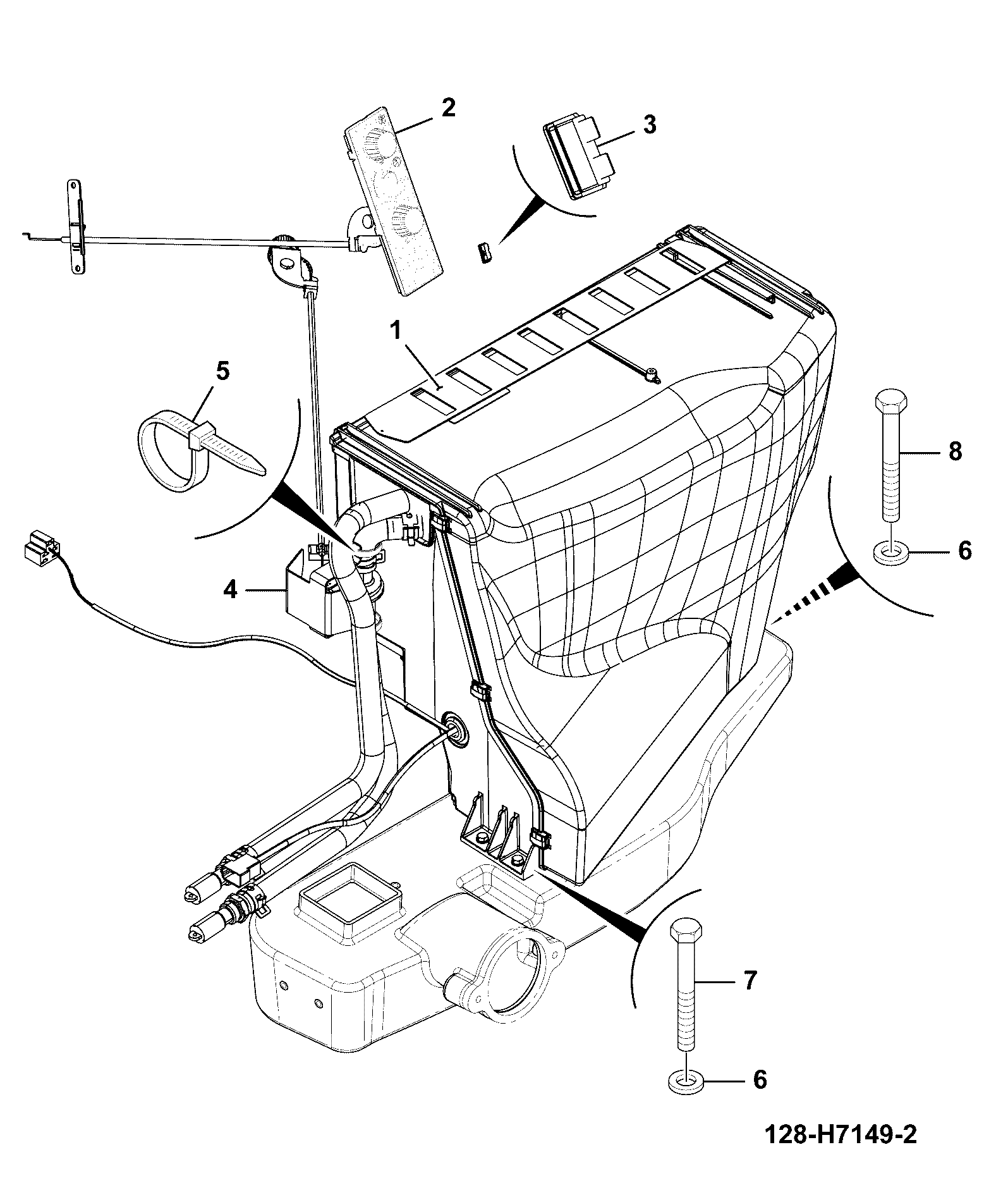

C330-5-1 SWITCHES HAMMER ELECTRICS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	SWITCH BASE LINK 332/E3016	1	AVAILABLE TO ORDER	$134.67	Quantity
2	ACTUATOR hammer 701/E8832	1	AVAILABLE TO ORDER	$15.20	Quantity
3	SWITCH PANEL 12V 2POS 701/E0476	1	AVAILABLE TO ORDER	$92.17	Quantity
4	FOOT SWITCH SIDE EXIT 12v 701/E6430 701/W0645	1	AVAILABLE TO ORDER	$97.27	Quantity

Showing 1 to 4 of 4 parts
