C300-120-1 ELECTRICS CAB INSTALLATION ASSEMBLIES ASSEMBLY ARMPAD COMMON PARTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	ARMPAD 401/G2078	1	AVAILABLE TO ORDER	$246.58	Quantity
2	TRAY MOULDING 401/L8102	1	AVAILABLE TO ORDER	$53.50	Quantity
3	5mm HINGE PIN 402/P2315	1	AVAILABLE TO ORDER	$13.84	Quantity
4	E-CLIP 4MM ID 402/F1755	1	AVAILABLE TO ORDER	$0.21	Quantity
5	4 x 12 DELTA PT SCREW (COMMON NG) 334/D9869	1	AVAILABLE TO ORDER	$2.96	Quantity

Showing 1 to 5 of 5 parts

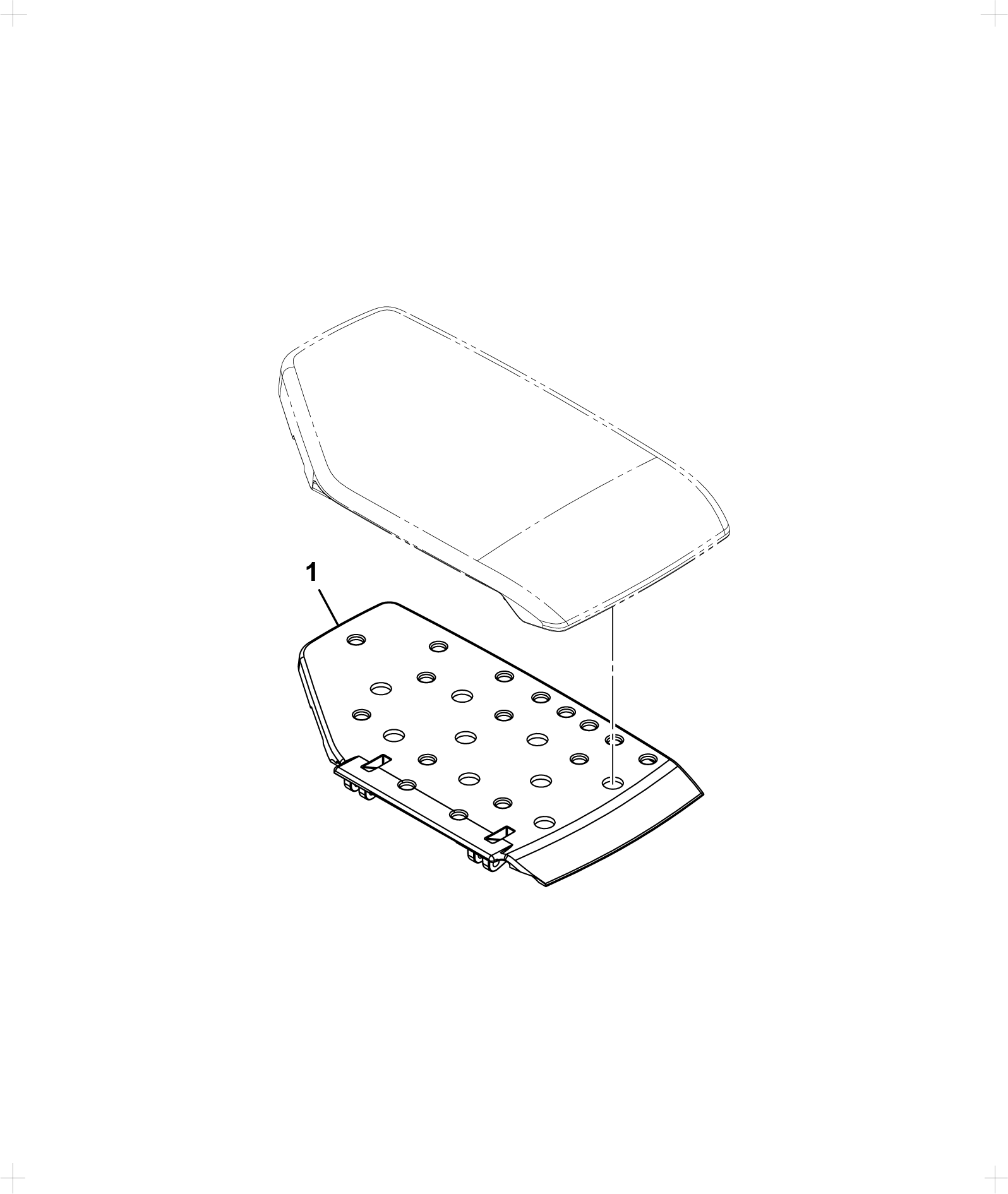

DIAG-C300-115-1-393668 C300-115-1 ELECTRICS CAB INSTALLATION ASSEMBLIES ABI ARMPAD
View Diagram

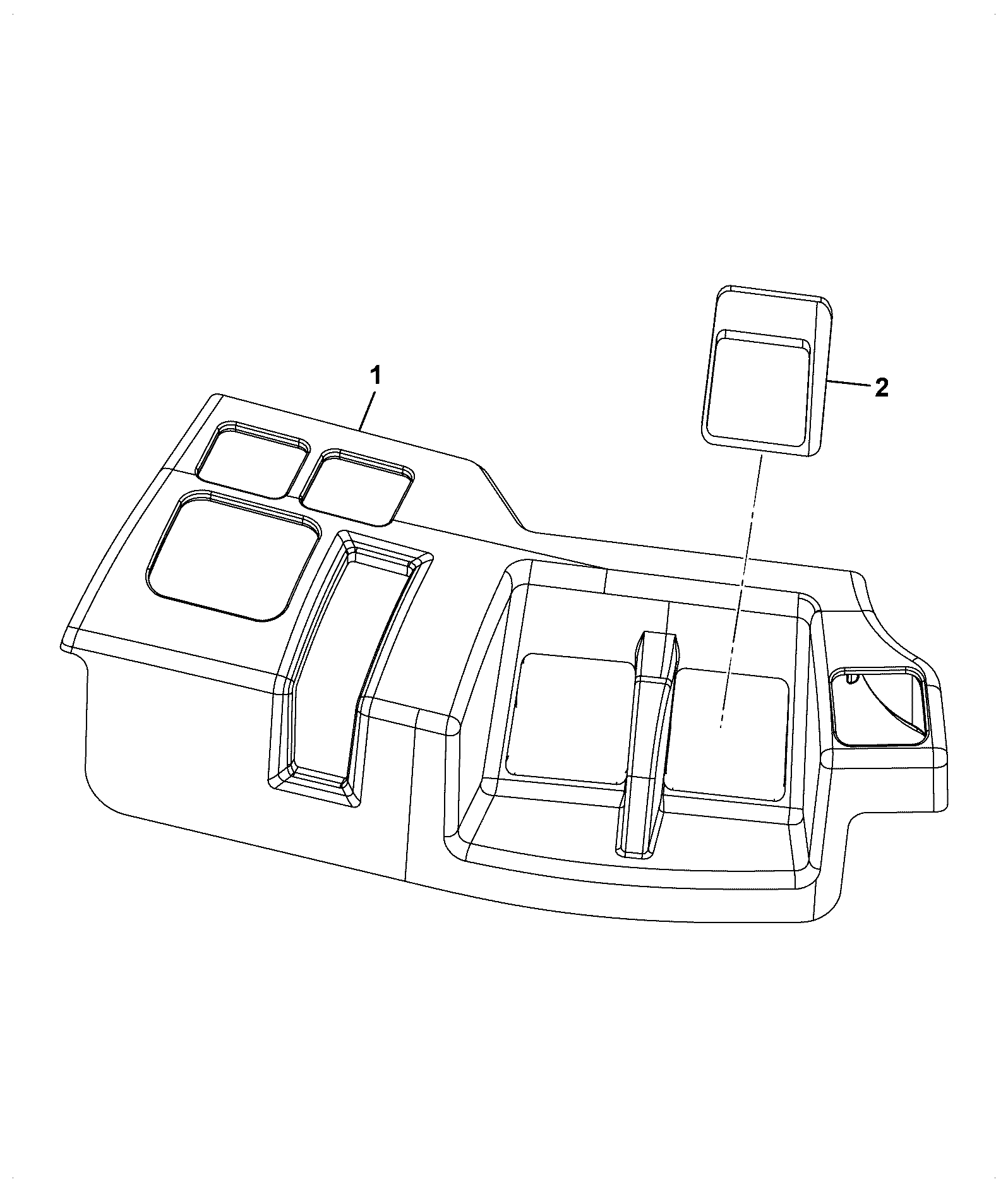

DIAG-C300-125-1-393668 C300-125-1 ELECTRICS CAB INSTALLATION ASSEMBLIES ABI HITCH BEZEL - REAR ONLY
View Diagram

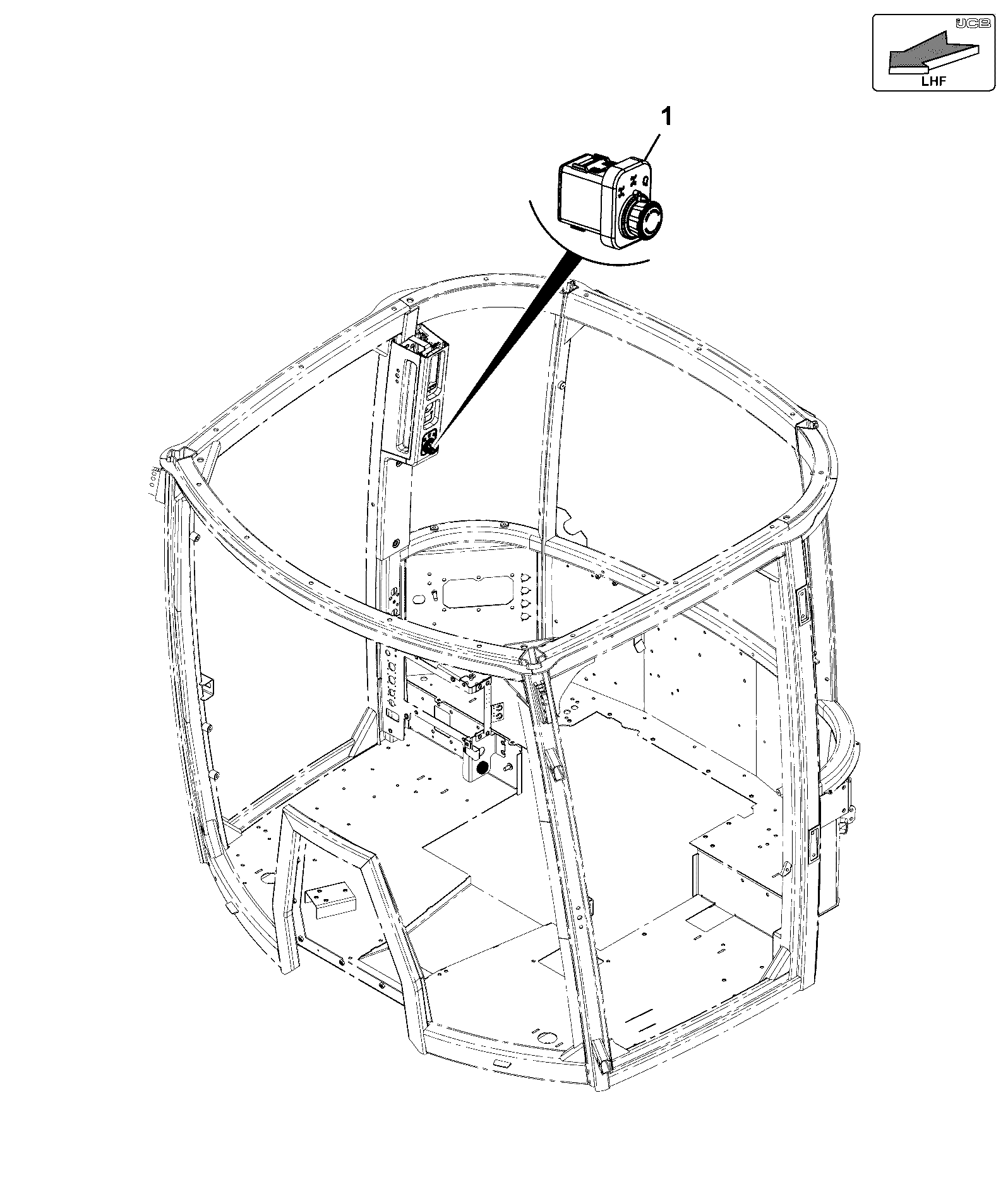

DIAG-C300-110-1-393668 C300-110-1 ELECTRICS CAB INSTALLATION ASSEMBLIES CAB ELECTRICS
