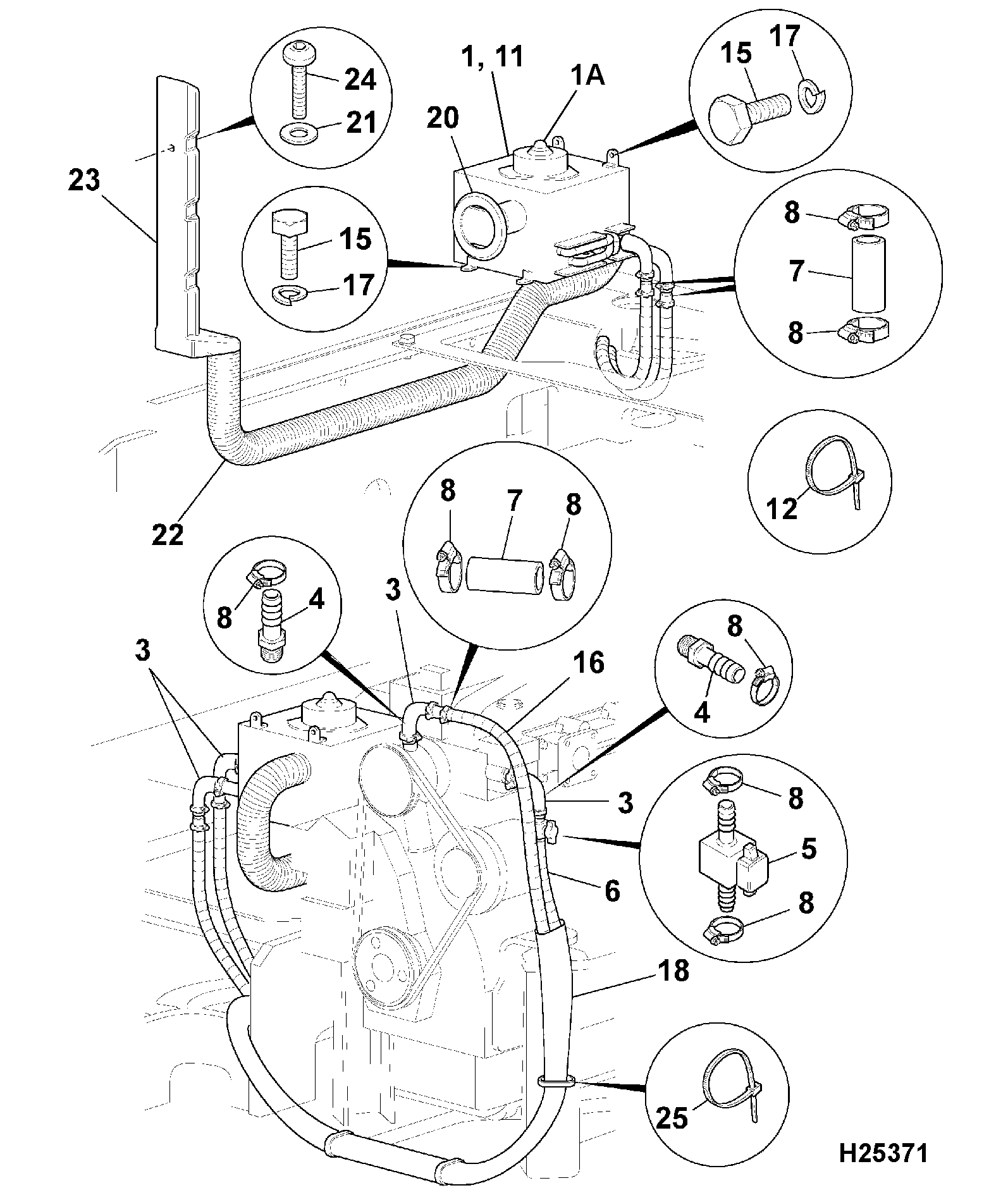

C3-2-6 HEATER UNIT DETAILS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	GROMMET 331/36612	1	AVAILABLE TO ORDER	$0.44	Quantity
	HEATER 30/927015 295/00303	1	AVAILABLE TO ORDER	$2,820.71	Quantity
	HEATER UNIT 30/925458	1	AVAILABLE TO ORDER	$1,523.94	Quantity
	Radiator Radiator 30/926248 332/Z2094	1	AVAILABLE TO ORDER	$1,211.70	Quantity

Showing 1 to 4 of 4 parts
