Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BOX 4 WAY ( 4 peice kit) 716/30077 | 1 | $48.51 | |||
| 2 | FUSE MAXI FUSE 30A 716/30079 | 1 | $2.57 | |||
| 3 | (W) MAXIFUSE - 40A 716/15900 | 1 | $18.73 | |||
| 4 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 6 | FUSE.60 AMP. 716/16400 | 1 | $12.32 | |||
| 7 | PRIMARY FUSE LEAD ASSEMBLY 332/W2639 | 1 | $72.54 | |||
| 8 | WA FUSE MTG BRKT 332/V8216 | 1 | $10.67 | |||
| 9 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 10 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 11 | STRIP EDGE 30M (ROLL) 926/04800 | 1 | $6.43 | |||
| 12 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 15 | PIPE CLIP 35mm 821/10387 | 1 | $16.04 | |||
| 20 | 426-456 T2 PRIMARY FUSE LABEL 332/W4290 | 1 | $16.80 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

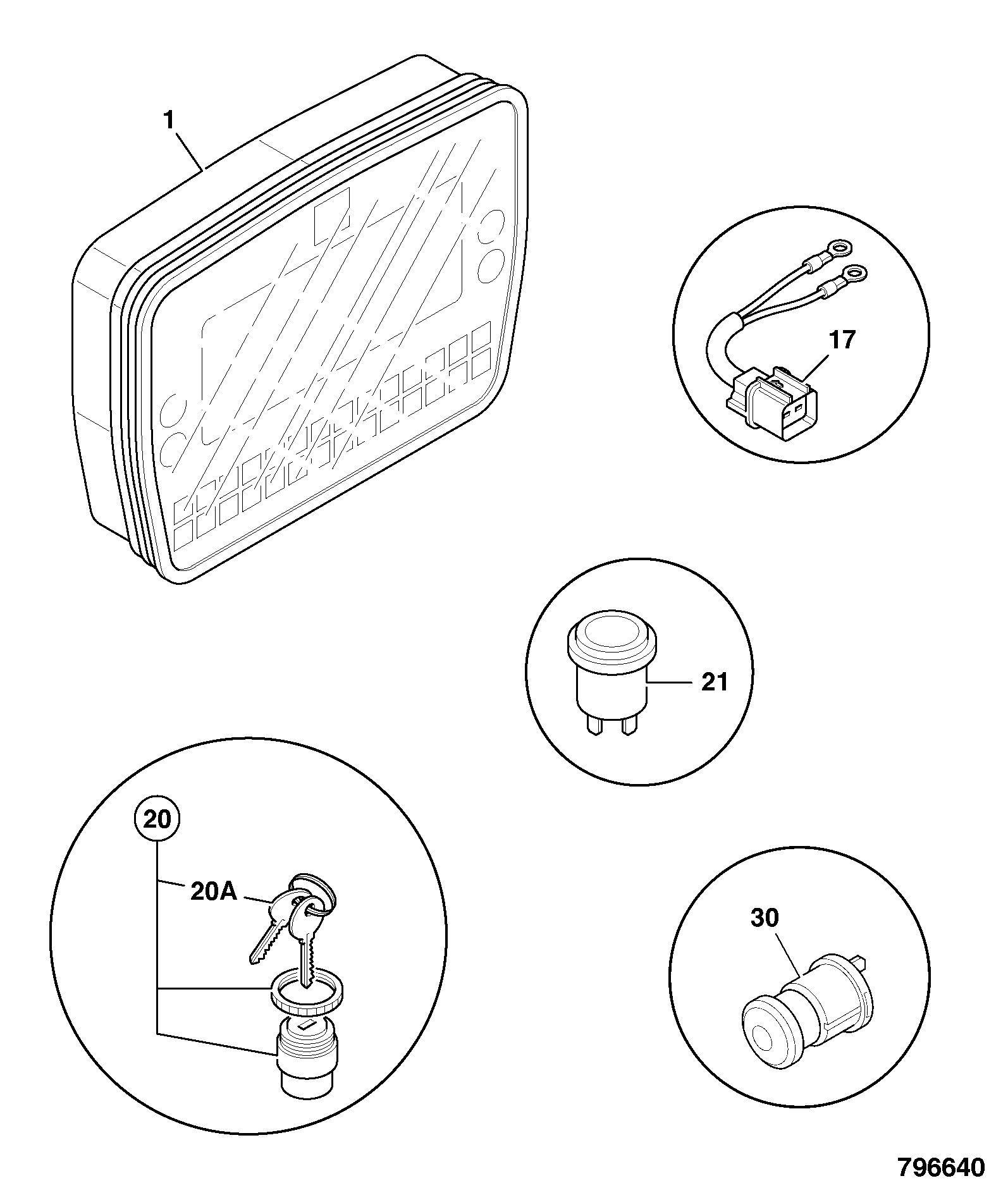

DIAG-C3-1-1-404642 C3-1-1 INSTRUMENT PANEL 24 VOLT
View Diagram -
DIAG-C3-3-1-404642 C3-3-1 FUSE AND RELAYS
View Diagram -
DIAG-C2-6-1-404642 C2-6-1 ENGINE BLOCK HEATER 120V
View Diagram
