C3-2-2 INSTRUMENT PANEL – Scholten's Equipments Parts Store

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CONSOLE 123/03815	1	AVAILABLE TO ORDER	$1,473.94	Quantity
2	TAPTITE SCREW 826/01148	1	AVAILABLE TO ORDER	$1.64	Quantity
3	WASHER 1417/0010	1	AVAILABLE TO ORDER	$0.41	Quantity
4	Foam Seal Strip (1 roll = 10 Feet) 926/04700	1	AVAILABLE TO ORDER	$3.14	Quantity
6	'(P) (W) (P) (Pre-P)-POSIDRIV SCREW 3 X 826/01373	1	AVAILABLE TO ORDER	$0.18	Quantity

Showing 1 to 5 of 5 parts

DIAG-C3-2-2-395102-11186290 C3-2-2 INSTRUMENT PANEL
View Diagram

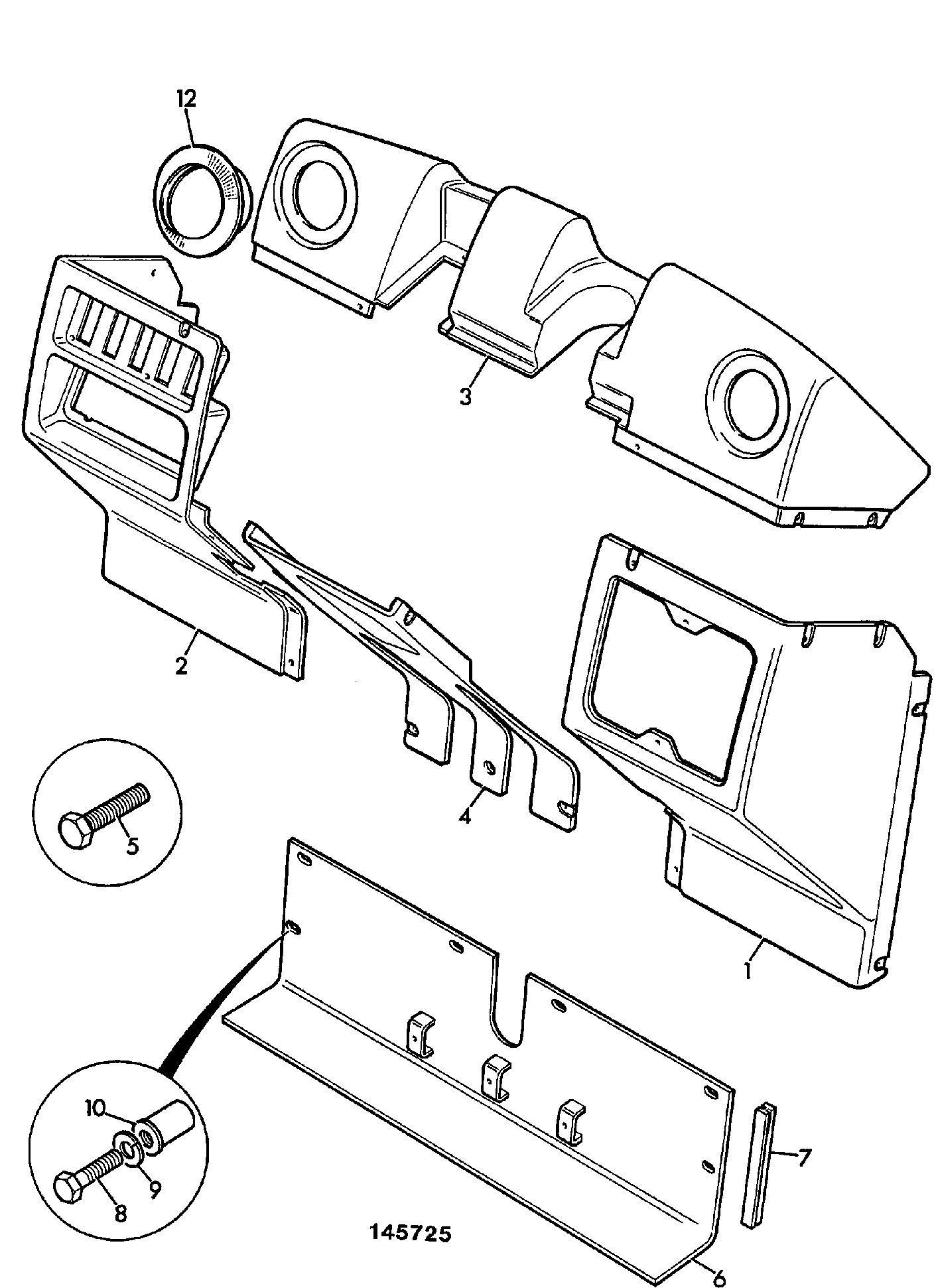

DIAG-C3-3-3-395102-11186297 C3-3-3 COVERS INSTRUMENT SURROUND
View Diagram
DIAG-C3-6-4-395102-11186317 C3-6-4 SWITCHES, LIGHTS HEATER & WIPER
View Diagram

Previous Assembly DIAG-C1-4-2-395102 C1-4-2 LIGHT, HEAD, 12.VOLT RIGHT HAND DIP WHITE Next Assembly DIAG-C3-2-2-395102-11186290 C3-2-2 INSTRUMENT PANEL
