Scroll to zoom Click a part # to view details

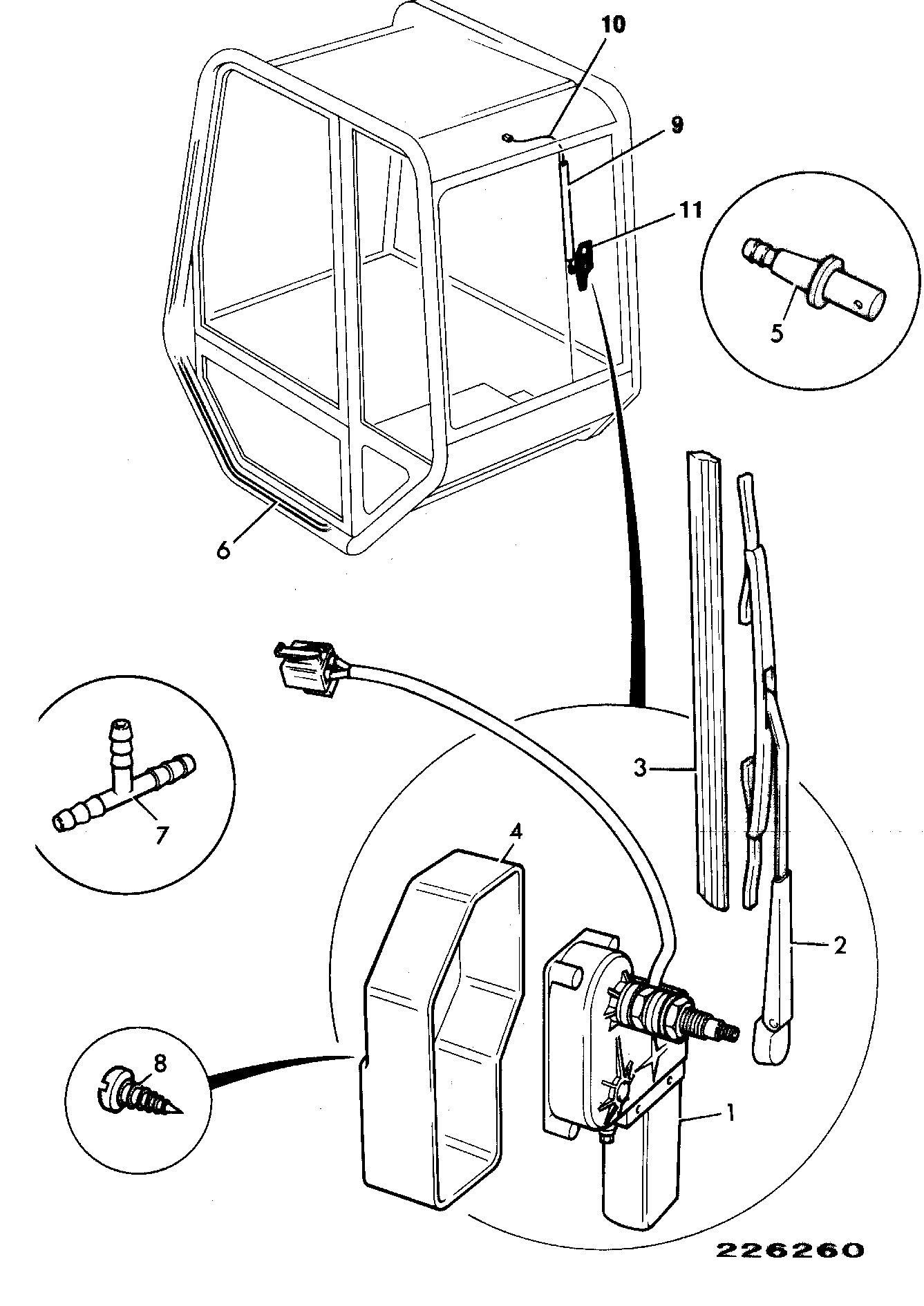

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CABLE TIE 150mm 826/01162 | 1 | $4.17 | ||||
| VALVE ; NON RETURN 534/09703 | 1 | $13.52 | ||||
| 1 | (P) (W) (P) WIPER MOTOR FRONT P36 714/28200 | 1 | $594.97 | |||
| 2 | COVER wiper motor 346/00317 | 1 | $31.50 | |||
| 3 | BLIND RIVET 1430/0102 334/T9963 | 1 | $0.68 | |||
| 4 | WIPER ARM 714/07000 | 1 | $33.60 | |||
| 5 | WIPER BLADE. 714/14900 | 1 | $29.20 | |||
| 6 | SCREEN WASH JET (Long w/o elbow) 255/27003 | 1 | $39.91 | |||
| 7 | WASHER BOTTLE/PUMP ASSY. 717/06300 | 1 | $415.82 | |||
| 8 | SCREW 1/4UNFX3/4 PAN HD 826/00646 | 1 | $1.08 | |||
| 9 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 10 | (W) (P) LOCKNUT 1/4inUNF 1340/0003Z 1340/0003D | 1 | $6.62 | |||
| 11 | TUBE - PVC 4mm (1000FT / 310M Roll) 647/02000 | 1 | $3.08 | |||
| 12 | SEALING GASKET.FOAM. 813/00361 | 1 | $47.47 | |||
| 13 | GROMMET(REINSTATE) 2410/0108 | 1 | $5.88 | |||
| 14 | GROMMET 2410/1105 | 1 | $3.70 | |||
| 15 | HARNESS - FRONT WIPER 719/38000 | 1 | $14.92 | |||
| 16 | (W) (P) WIPER MOTOR LABEL 817/01816 | 1 | $1.36 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-C3-2-2-400886 C3-2-2 MOTOR, WIPER FIXED WINDSCREEN
View Diagram -
DIAG-C3-3-1-400886 C3-3-1 MOTOR, WIPER REAR WINDOW,FIXED
View Diagram -
DIAG-C3-3-2-400886 C3-3-2 MOTOR,WIPER,OPENING REAR WINDOW
View Diagram
