Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WIPER MOTOR BRK W.A 335/09243 | 1 | $98.94 | |||
| 2 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 3 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 4 | MTG BRKT:FRNT WIPER 478/02217 333/R3507 | 1 | $130.62 | |||
| 5 | LINKAGE ASSY WIPER 714/17700 | 1 | $119.90 | |||
| 6 | ARM 714/17800 | 1 | $45.49 | |||
| 7 | WIPER BLADE 600mm (P721) 714/17900 | 1 | $32.58 | |||
| 8 | WASHER JET 714/17801 | 1 | $26.30 | |||
| 9 | COVER-WIPER MOTOR 476/10604 | 1 | $515.50 | |||
| 10 | GROMMET 2410/0103 | 1 | $10.02 | |||
| 11 | SET-SCREW M_6 L-_12mm 1315/0201D | 1 | $0.68 | |||
| 12 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 13 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $1.36 | |||
| 14 | HARNESS CLIP 264/34901 | 1 | $3.01 | |||
| 17 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.14 | |||
| 18 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-C3-9-6-393717 C3-9-6 AIR CONDITIONING INSTALLATION ENGINE BAY
View Diagram -
DIAG-C3-10-2-393717 C3-10-2 WASH/WIPE REAR SCREEN
View Diagram -

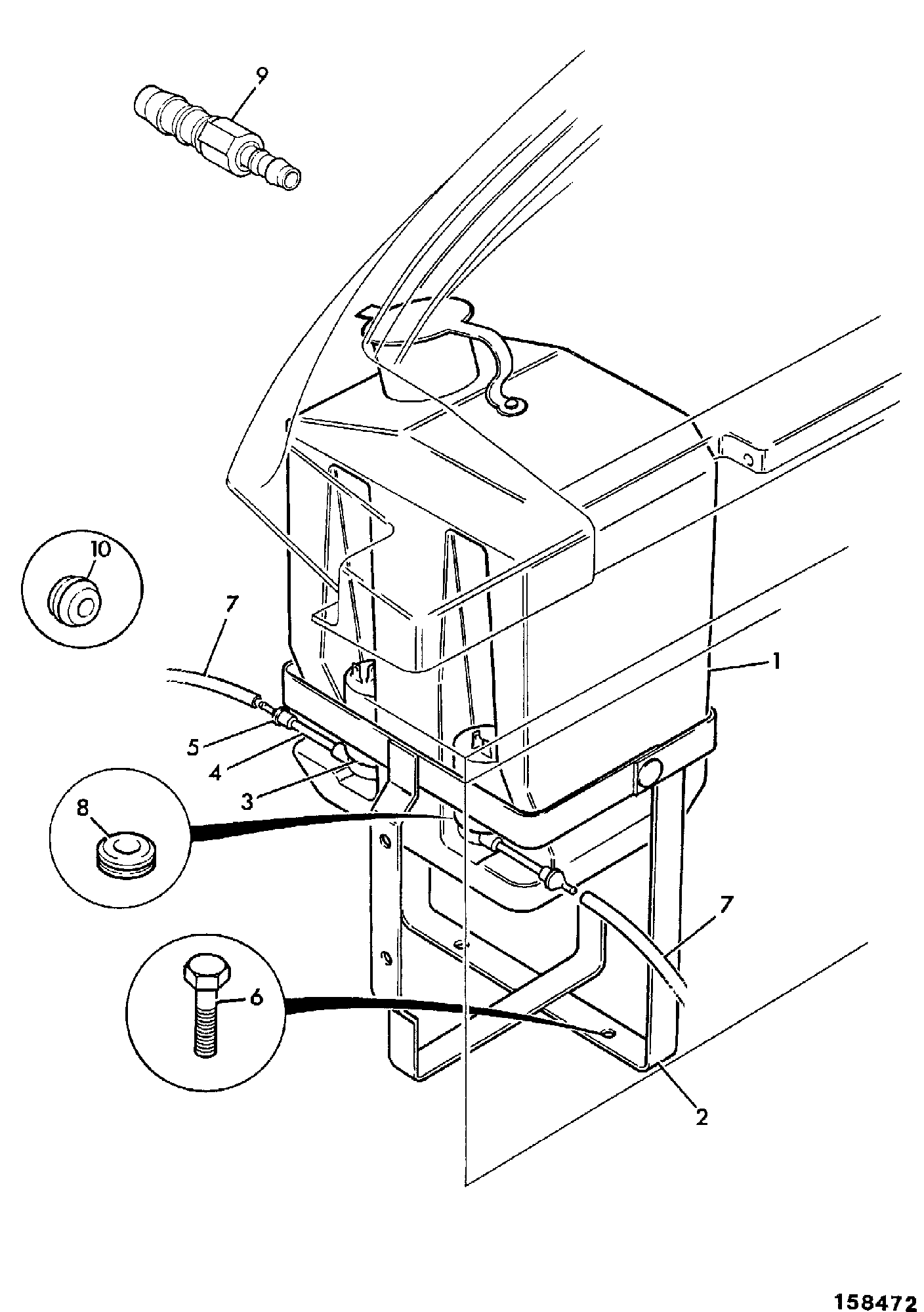

DIAG-C3-11-1-393717 C3-11-1 WASHER KIT WINDSCREEN
View Diagram
