Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PUMP,ASSY,PISTON, RD849-61112 | 1 | $7,987.60 | |||
| 020 | PLATE,KIT(SWASH) RD706-69103 | 1 | $2,075.52 | |||
| 030 | ORIFICE, 0.5 RD451-69510 | 1 | $45.16 | |||
| 040 | ASSY, BLOCK,CYLI RD706-69200 | 1 | $3,969.08 | |||
| 050 | SEAL,KIT(FRANGE) RD839-77700 RD706-69700 | 1 | $393.67 | |||
| 060 | SEAL, OIL RD451-69710 | 1 | $182.42 | |||
| 070 | GASKET RD706-69250 | 1 | $180.41 | |||
| 080 | BEARING,NDL RD706-69260 | 1 | $177.05 | |||
| 090 | BEARING,NDL RD706-69210 | 1 | $177.05 | |||
| 100 | WASHER,THRUST RD706-69560 | 1 | $71.31 | |||
| 110 | SHAFT RD706-69220 | 1 | $1,048.72 | |||
| 120 | PIN, STRAIGHT 68493-71450 | 1 | $14.41 | |||
| 130 | BUSHING RD706-69240 | 1 | $120.52 | |||
| 140 | WASHER,THRUST RD706-69230 | 1 | $25.94 | |||
| 150 | RING SNAP RD101-69860 | 1 | $20.16 | |||
| 160 | PLUG RD849-77110 | 1 | $146.82 | |||
| 170 | PIN RD706-69390 | 1 | $216.91 | |||
| 180 | PIN RD839-77240 | 1 | $216.91 | |||
| 190 | BUSHING RD706-69490 | 1 | $287.01 | |||
| 200 | BOLT RD411-69250 | 1 | $16.06 | |||
| 210 | COLLAR RD706-69380 | 1 | $112.11 | |||
| 220 | O-Ring Seal 04810-00210 04817-00210 | 1 | $26.84 | |||
| 230 | ASSY, PISTON, RD706-69360 | 1 | $417.08 | |||
| 240 | BUSHING RD706-69800 | 1 | $601.34 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-C20000-125634 C20000 PISTON PUMP
View Diagram -

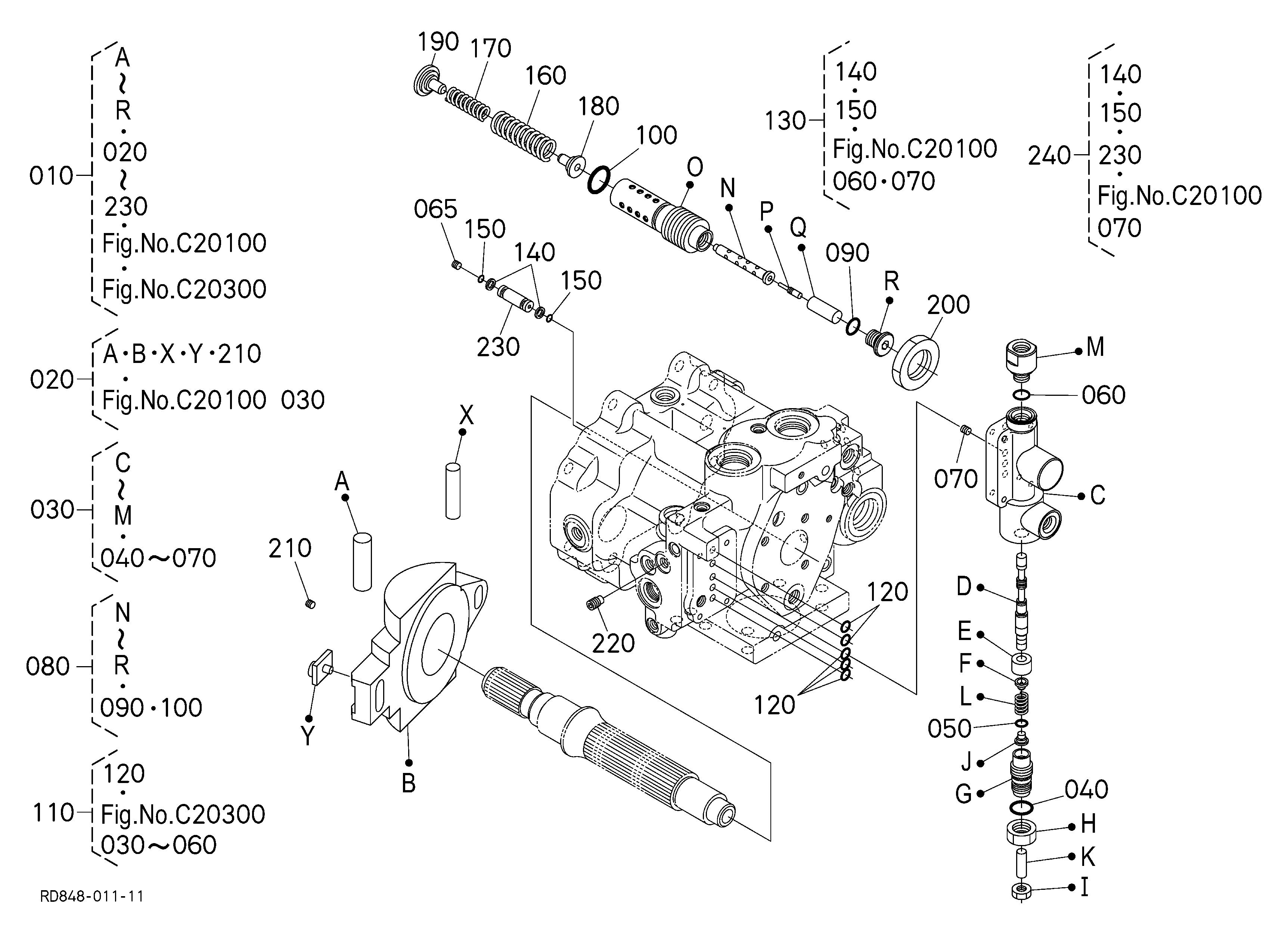

DIAG-C20200-125634 C20200 PISTON PUMP (VALVE) [COMPONENT PARTS]
View Diagram -
DIAG-C00000-125634 C00000 HOUSING PUMP
View Diagram
