Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

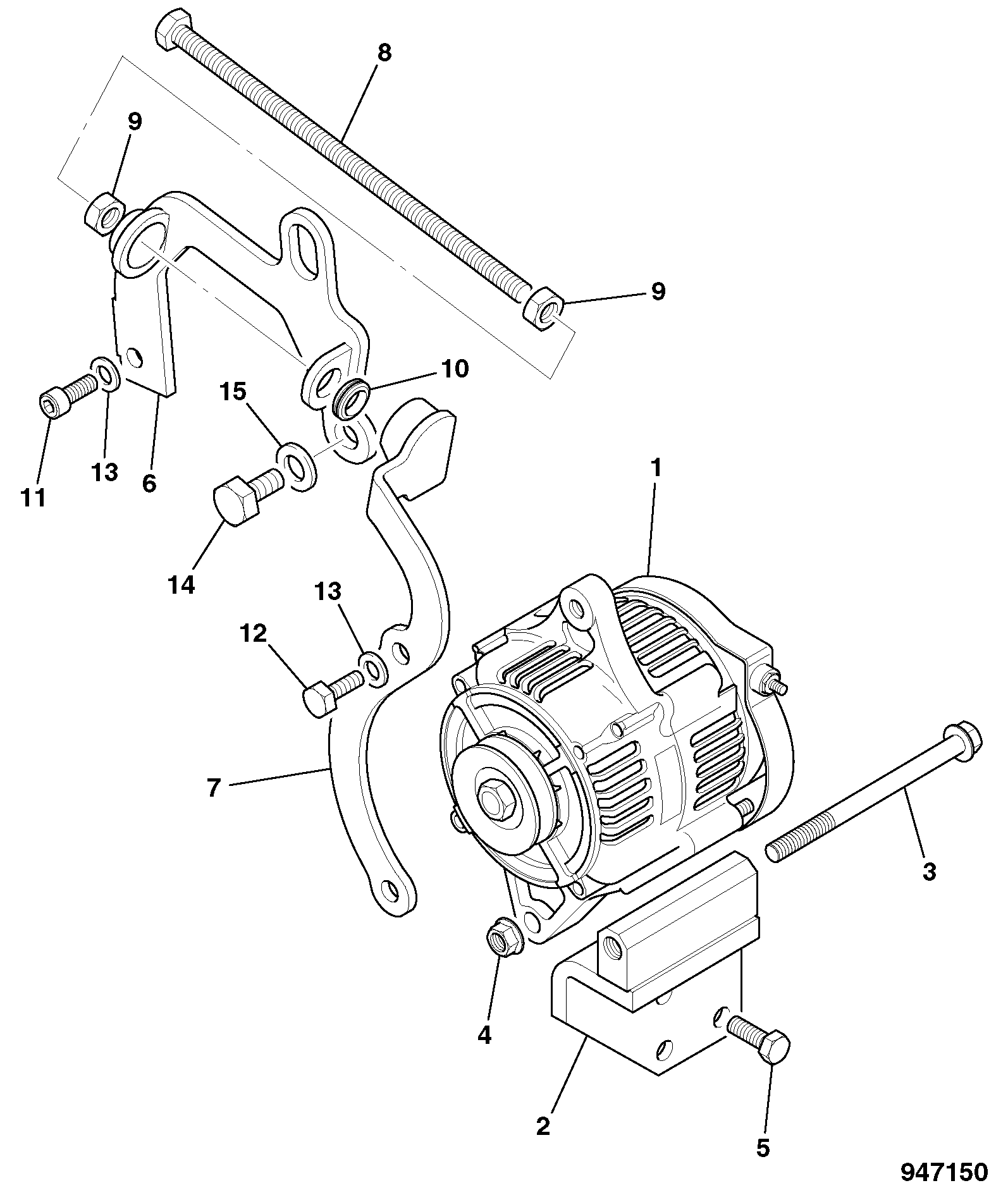

| Lever alternator 238/11148 | 1 | $413.39 | ||||
| 1 | Alternator mounting 02/631330 400/01665 | 1 | $105.13 | |||
| 2 | SCEW 826/10725 | 1 | $5.52 | |||
| 3 | Bolt 02/631331 | 1 | $16.25 | |||
| 4 | NUT 02/631332 | 1 | $15.60 | |||
| 5 | WASHER 02/630344 | 1 | $4.14 | |||
| 6 | Bracket lever 333/D5241 | 1 | $100.74 | |||
| 7 | SCREW 826/10766 | 1 | $5.64 | |||
| 9 | WASHER 02/634224 | 1 | $16.93 | |||
| 10 | WA ALTERNATOR TENSION BRKT 335/11231 | 1 | $230.59 | |||
| 11 | WA ALTERNATOR BRACKET 333/R6256 | 1 | $118.57 | |||
| 12 | BOLT M10 x 240 826/11525 | 1 | $37.69 | |||
| 13 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
| 14 | GROMMET (P493) 2410/0306 | 1 | $19.90 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | CAP-SCREW M_8 L-_20mm 1391/3305D | 1 | $2.03 | |||
| 17 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 18 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 19 | SET SCREW M8x25 1316/0307D | 1 | $3.49 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

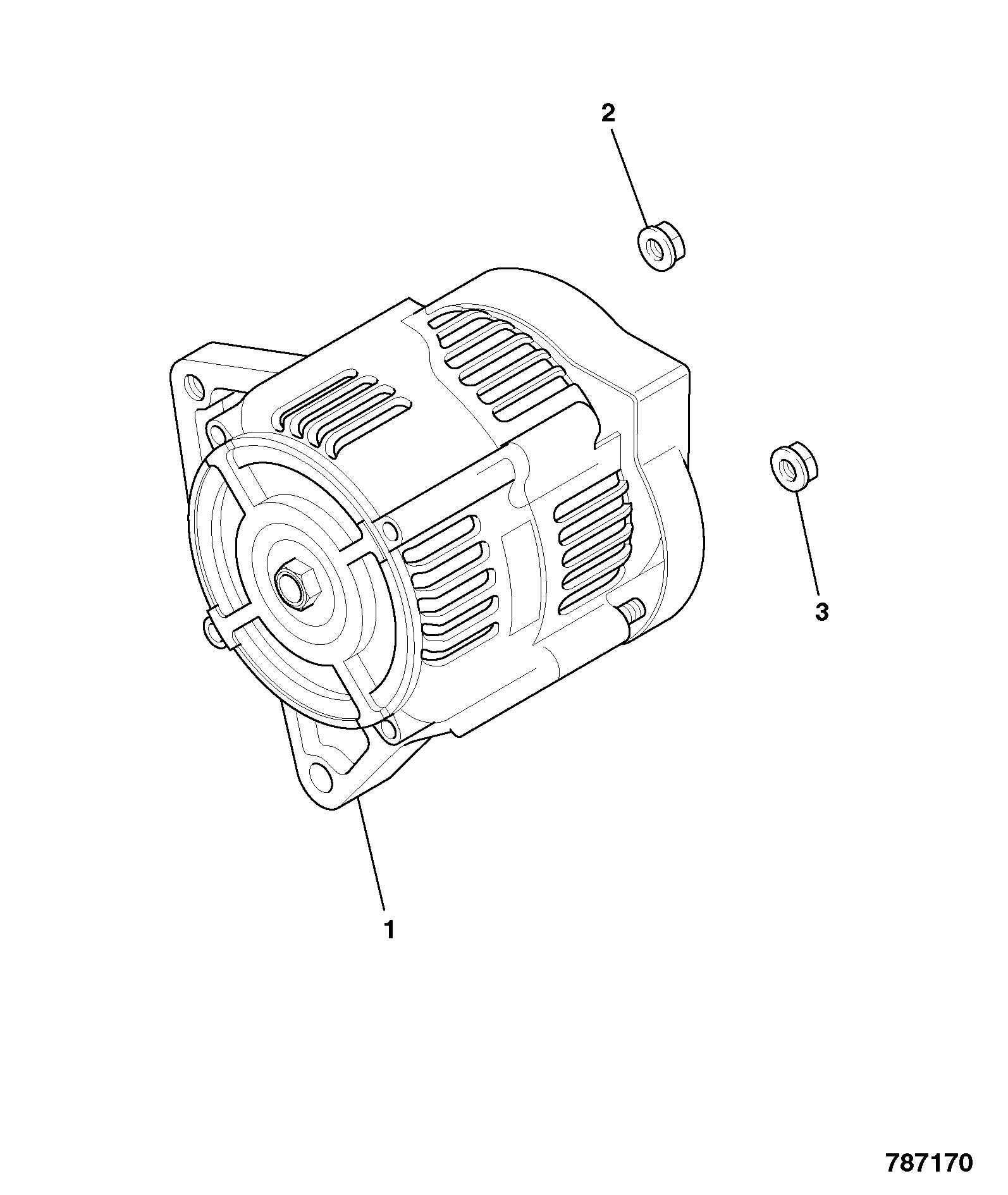

DIAG-C2-4-1-397952 C2-4-1 ALTERNATOR 8025/8030
