C2-5-1 ALTERNATOR MOUNTINGS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	BRACKET 02/912013	1	AVAILABLE TO ORDER	$415.92	Quantity
2	BOLT FLANGE HEAD 826/10759	1	AVAILABLE TO ORDER	$67.69	Quantity
3	NUT, FLANGE HEAD 02/911226	1	5 IN STOCK	$2.70	Quantity
4	SCREW 02/911120	1	AVAILABLE TO ORDER	$19.64	Quantity
5	Lever Lever altern 02/911353	1	AVAILABLE TO ORDER	$20.73	Quantity
8	NUT 02/912175	1	AVAILABLE TO ORDER	$6.08	Quantity

Showing 1 to 6 of 6 parts

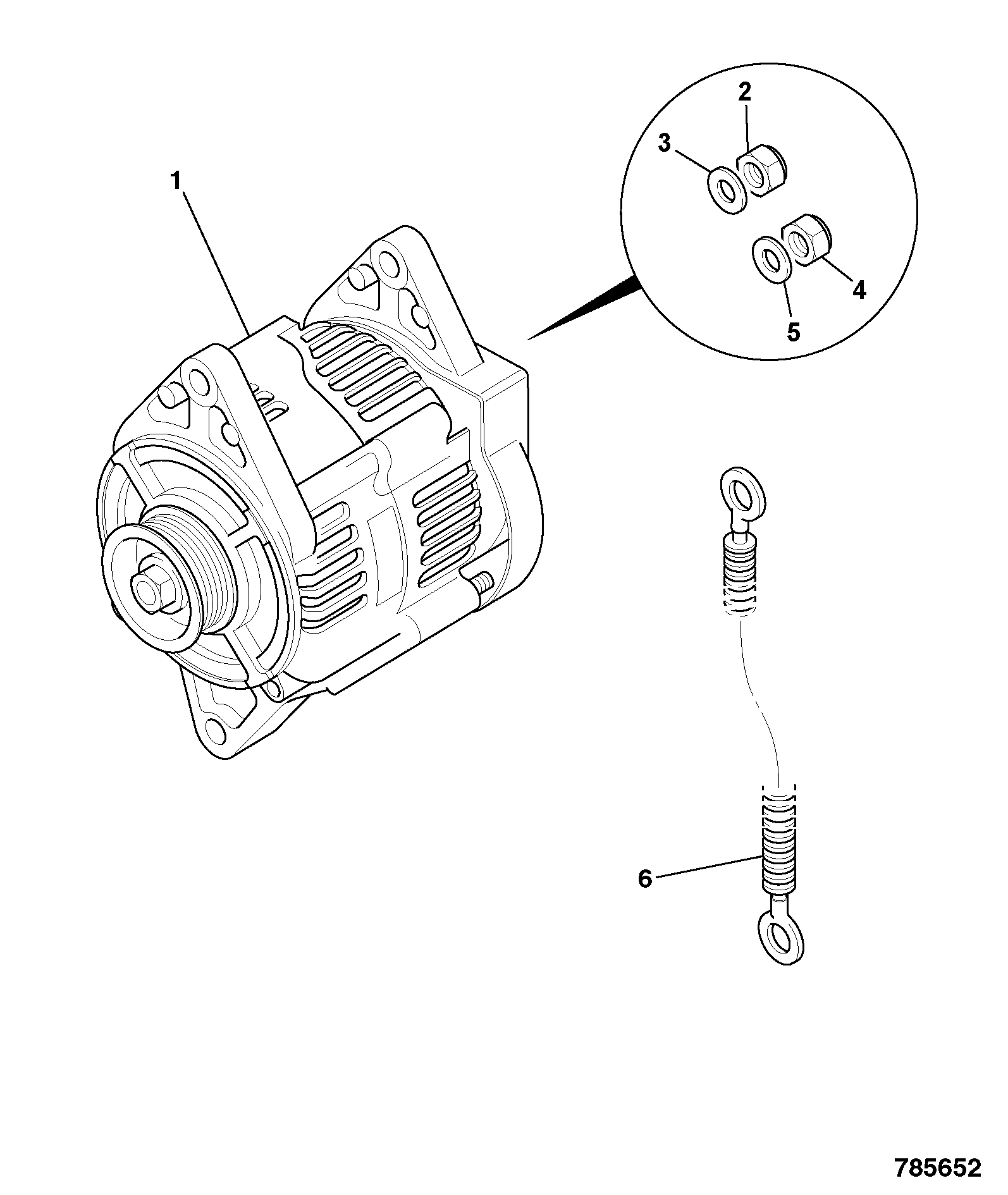

DIAG-C2-4-1-393717 C2-4-1 ALTERNATOR 160AMP
View Diagram
DIAG-C2-6-1-393717 C2-6-1 ENGINE BLOCK HEATER 120V
View Diagram

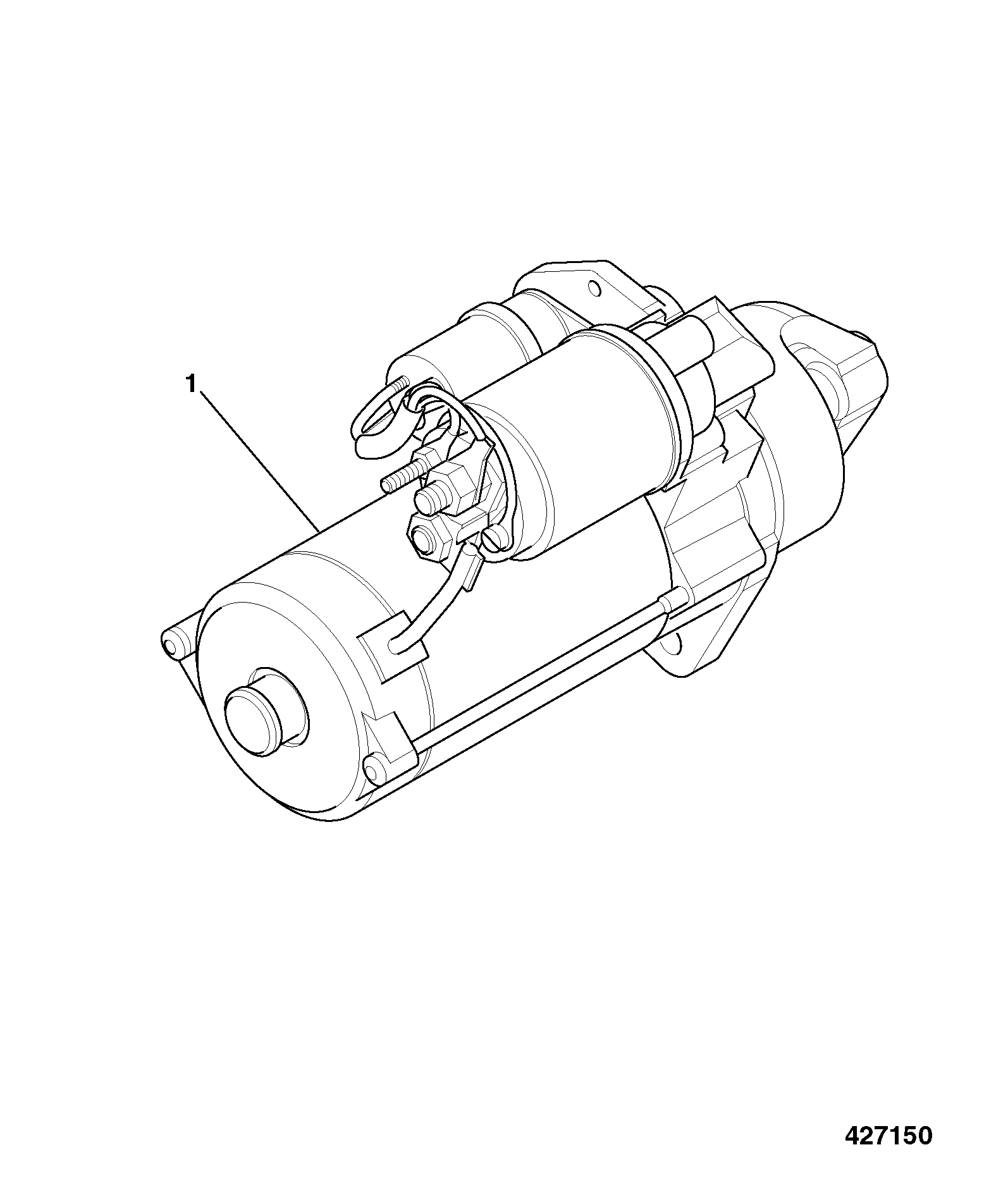

DIAG-C2-3-1-393717 C2-3-1 MOTOR, STARTER 12 VOLT
