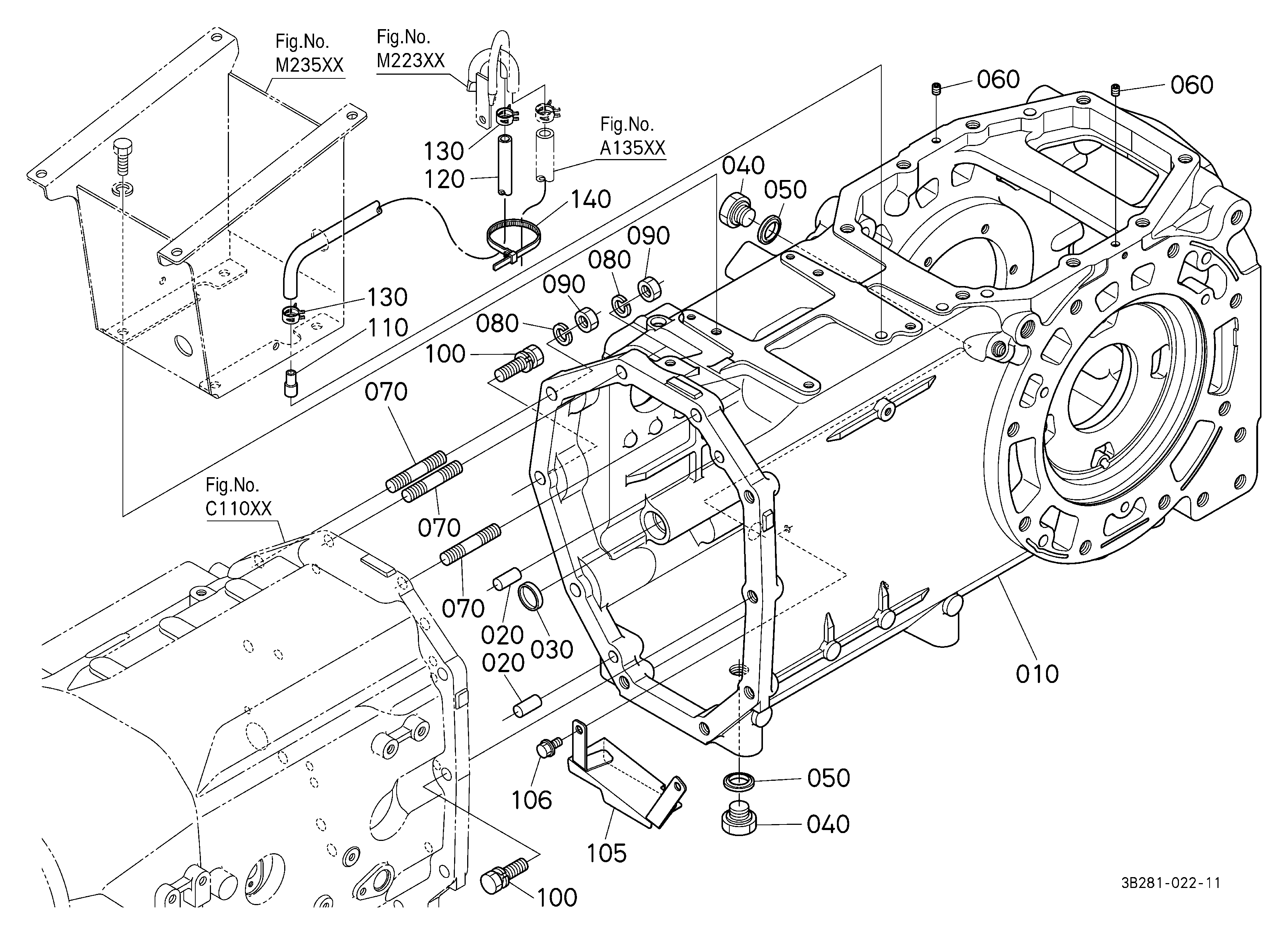

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GEARCASE 3C081-21415 | 1 | $604.65 | |||
| 020 | PIN 05012-01018 | 1 | $1.51 | |||
| 040 | Bolt 01133-51255 | 1 | $2.87 | |||
| 050 | BOLT 01133-51240 | 1 | $2.54 | |||
| 060 | STUD 01574-61235 01574-71235 | 1 | $2.93 | |||
| 070 | Spring Washer (Lock Washer) 04512-50120 | 1 | $0.16 | |||
| 080 | NUT,M12,CR T3680-80950 | 1 | $2.50 | |||
| 090 | GAUGE,OIL 3C091-21510 | 1 | $16.20 | |||
| 100 | PLUG 38240-21410 | 1 | $3.91 | |||
| 100 | PLUG OIL FILLER 3B291-21410 | 1 | $8.18 | |||
| 110 | O-Ring 04817-50300 | 1 | $3.15 | |||
| 110 | O-Ring Seal 04816-50300 | 1 | $3.15 | |||
| 120 | STOPPER 3C081-81882 | 1 | $50.48 | |||
| 130 | BOLT 01133-61645 01133-51645 | 1 | $6.80 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-C14000-194661 C14000 TRANSMISSION CASE
View Diagram -
DIAG-C17000-194661 C17000 REAR AXLE CASE
View Diagram -

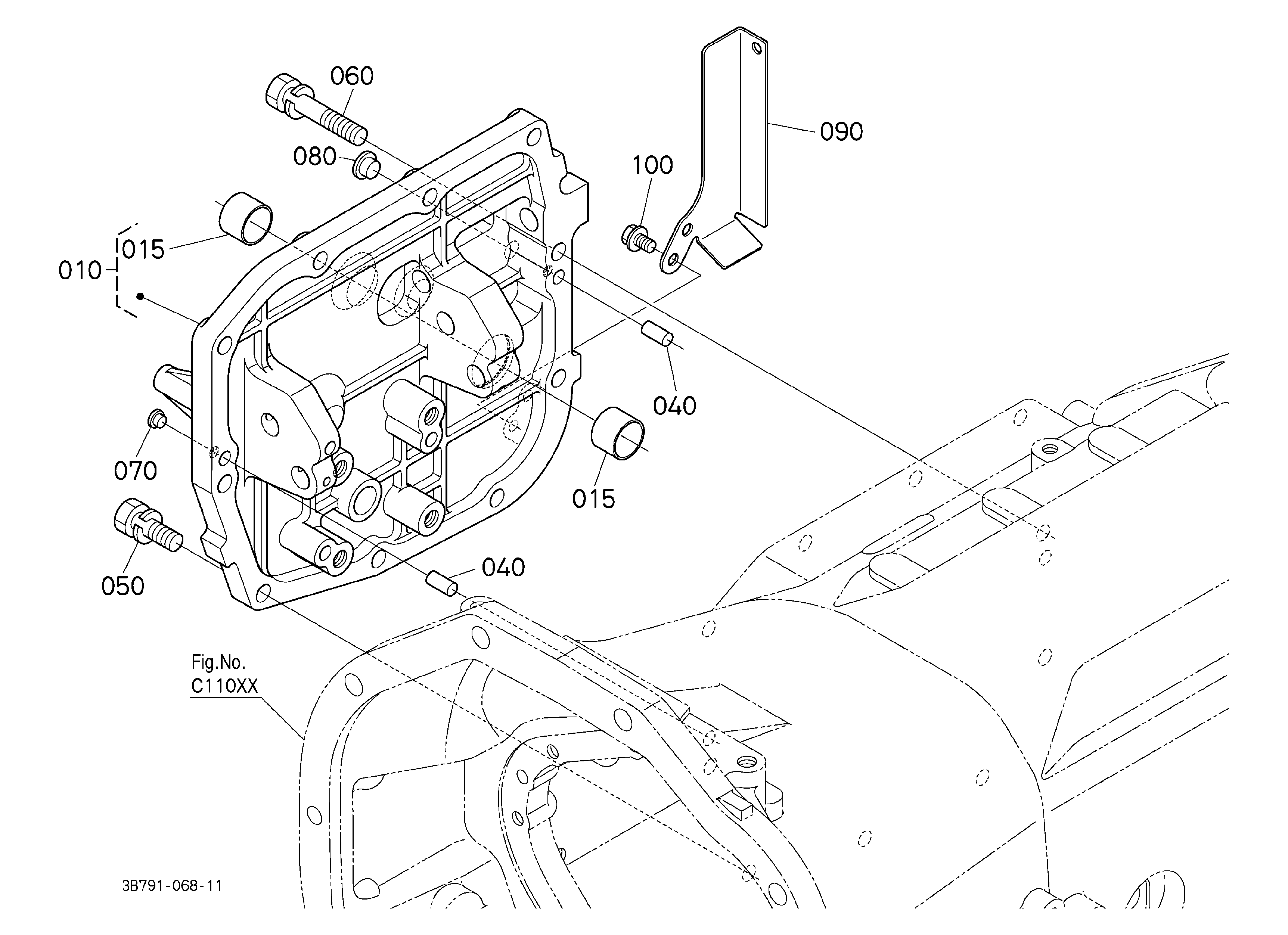

DIAG-C12501-194661 C12501 SHIFT COVER
View Diagram
