Kubota M7040HDNB-1 C14003 TRANSMISSION CASE Parts Diagram

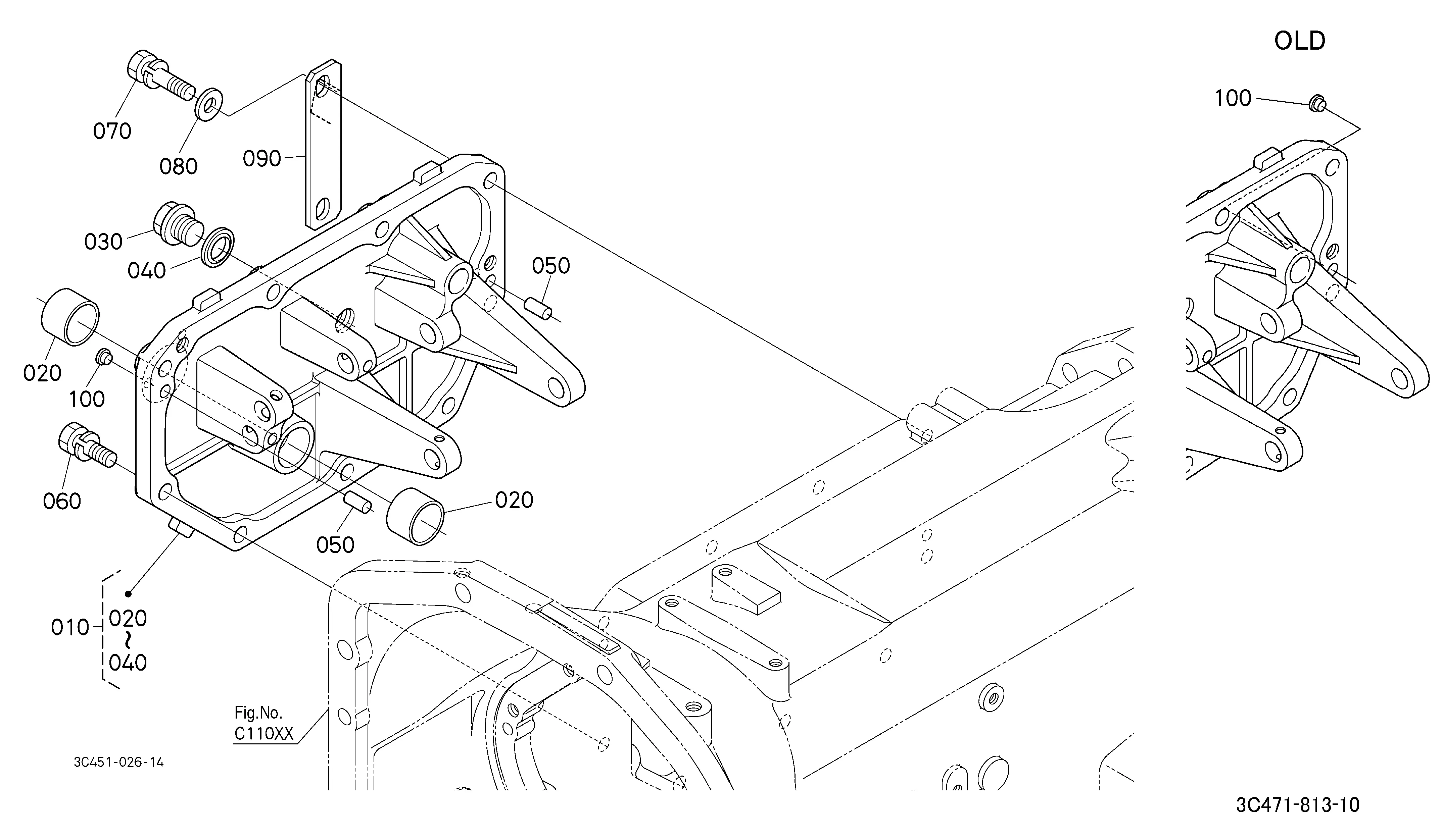

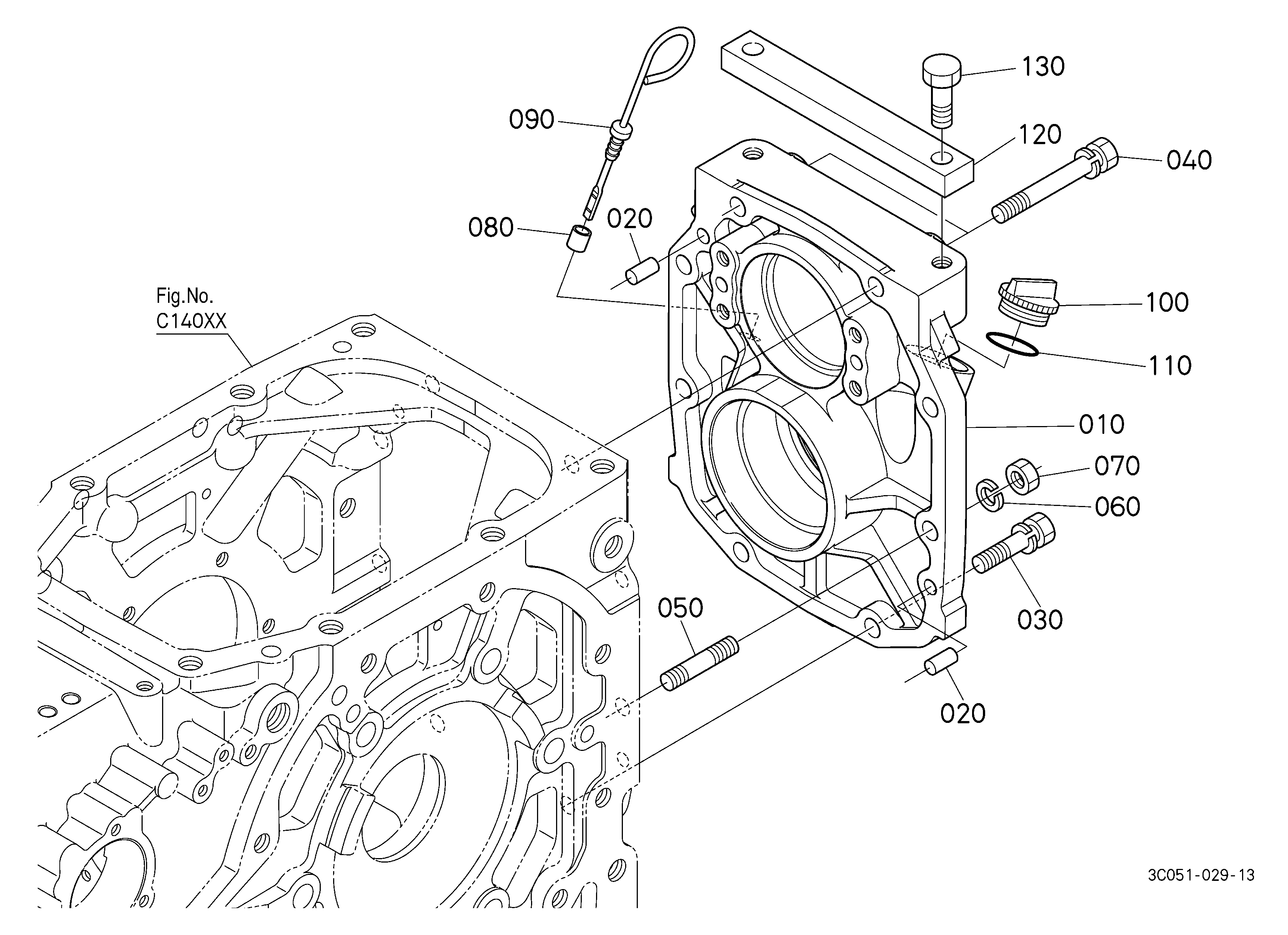

Exploded-view parts diagram "C14003 TRANSMISSION CASE" for the Kubota M7040HDNB-1. 27 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE, TRANSMISSI 3C471-21310 3C471-21314 | 1 | $4,818.09 | |||
| 010 | CASE,TRANSMISSIO 3C471-21315 3C471-21318 | 1 | $5,265.10 | |||
| 020 | PIN, STRAIGHT 05012-01325 | 1 | $2.26 | |||
| 030 | CAP, SEALING 06311-85028 | 1 | $3.15 | |||
| 050 | PLUG 06331-35020 | 1 | $5.15 | |||
| 060 | Seal Washer 04717-02000 | 1 | $3.37 | |||
| 070 | PLUG 1G896-33610 | 1 | $3.19 | |||
| 070 | PLUG*** 15469-33610 | 1 | $10.53 | |||
| 080 | Seal Washer 04717-00810 | 1 | $3.15 | |||
| 090 | JOINT, PIPE 3C451-21360 | 1 | $45.60 | |||
| 100 | PLUG 15521-96022 15521-96020 | 1 | $3.35 | |||
| 103 | PLUG 37150-36740 Discontinued | 1 | $3.36 | |||
| 104 | Washer 04717-00100 04717-01000 | 1 | $2.26 | |||
| 110 | BOLT 01138-51450 | 1 | $5.94 | |||
| 120 | STUD 3C001-21330 3C001-21333 | 1 | $8.49 | |||
| 125 | STUD (M14-52.9T) 3C081-21150 | 1 | $13.04 | |||
| 130 | NUT TA240-50240 3C131-21130 | 1 | $5.48 | |||
| 140 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 145 | BOLT 01176-61045 01176-51045 | 1 | $1.99 | |||
| 145 | BOLT, SEMS 01138-51045 | 1 | $6.88 | |||
| 146 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 150 | PLUG 31220-14293 31220-14290 | 1 | $1.62 | |||
| 160 | BOLT 01138-51245 | 1 | $3.93 | |||
| 180 | PIPE BREATHER 3C091-94790 | 1 | $16.13 | |||
| 190 | PIPE, FUEL 09661-80500 | 1 | $10.92 | |||
| 195 | JOINT, BREATHER 3C081-21630 | 1 | $2.71 | |||
| 200 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
Showing 1 to 27 of 27 parts
