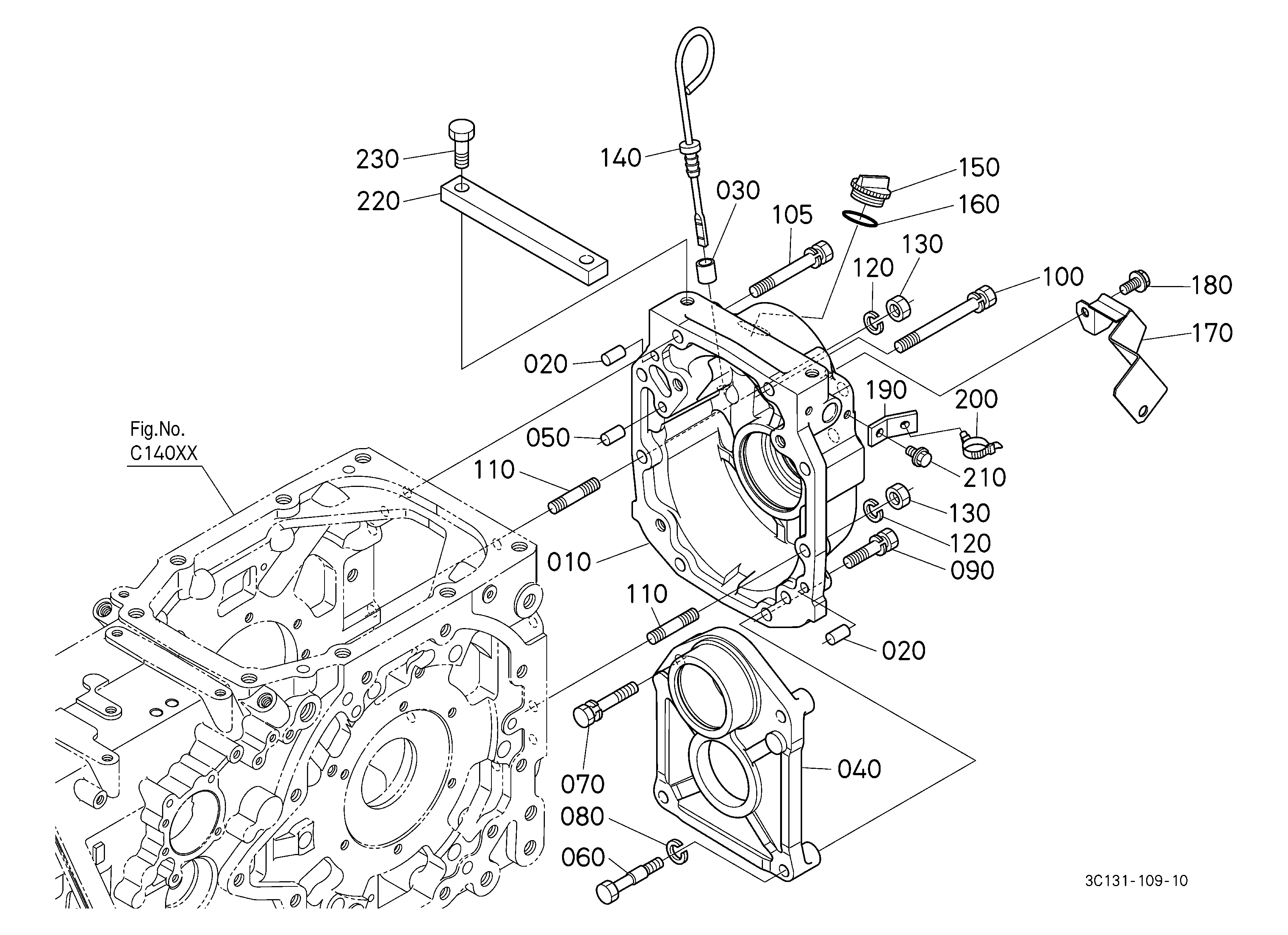

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE,TRANS 3C134-21313 | 1 | $6,137.19 | |||
| 020 | PIN, STRAIGHT 05012-01325 | 1 | $2.26 | |||
| 030 | CAP, SEALING 06311-85028 | 1 | $3.15 | |||
| 040 | PLUG 06331-35020 | 1 | $5.15 | |||
| 050 | Seal Washer 04717-02000 | 1 | $3.37 | |||
| 060 | PLUG 1G896-33610 | 1 | $3.19 | |||
| 070 | Seal Washer 04717-00810 | 1 | $3.15 | |||
| 080 | PLUG 15521-96022 15521-96020 | 1 | $5.15 | |||
| 090 | PLUG 32420-67380 | 1 | $3.35 | |||
| 100 | BOLT, FLANGE 01774-51010 | 1 | $2.95 | |||
| 100 | PLUG 06331-45010 | 1 | $3.37 | |||
| 105 | Washer 04717-00100 04717-01000 | 1 | $2.26 | |||
| 110 | BOLT 01138-51450 | 1 | $5.94 | |||
| 120 | STUD 3C001-21330 3C001-21333 | 1 | $8.49 | |||
| 125 | STUD (M14-52.9T) 3C081-21150 | 1 | $13.04 | |||
| 130 | NUT TA240-50240 3C131-21130 | 1 | $5.48 | |||
| 140 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 150 | BOLT 01176-61045 01176-51045 | 1 | $1.99 | |||
| 155 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 160 | BOLT 01138-51245 | 1 | $3.93 | |||
| 170 | PLUG 31220-14293 31220-14290 | 1 | $0.96 | |||
| 180 | PIPE BREATHER 3C091-94790 | 1 | $16.13 | |||
| 190 | TUBE, FUEL 09661-80650 | 1 | $13.54 | |||
| 200 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 210 | PIPE(BREATHER) 3C131-94760 | 1 | $58.73 | |||
| 210 | PIPE, BREATHER 3C151-94760 | 1 | $33.89 | |||
| 220 | BAND, CORD 65601-42390 53581-64150 | 1 | $3.03 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-C12500-93290 C12500 SHIFT COVER
View Diagram -
DIAG-C15000-93290 C15000 TRANSMISSION CASE REAR COVER
View Diagram -
DIAG-C11300-93290 C11300 SHUTTLE GEAR CASE
View Diagram
