Kubota M5L-111 C11100 SHUTTLE VALVE Parts Diagram

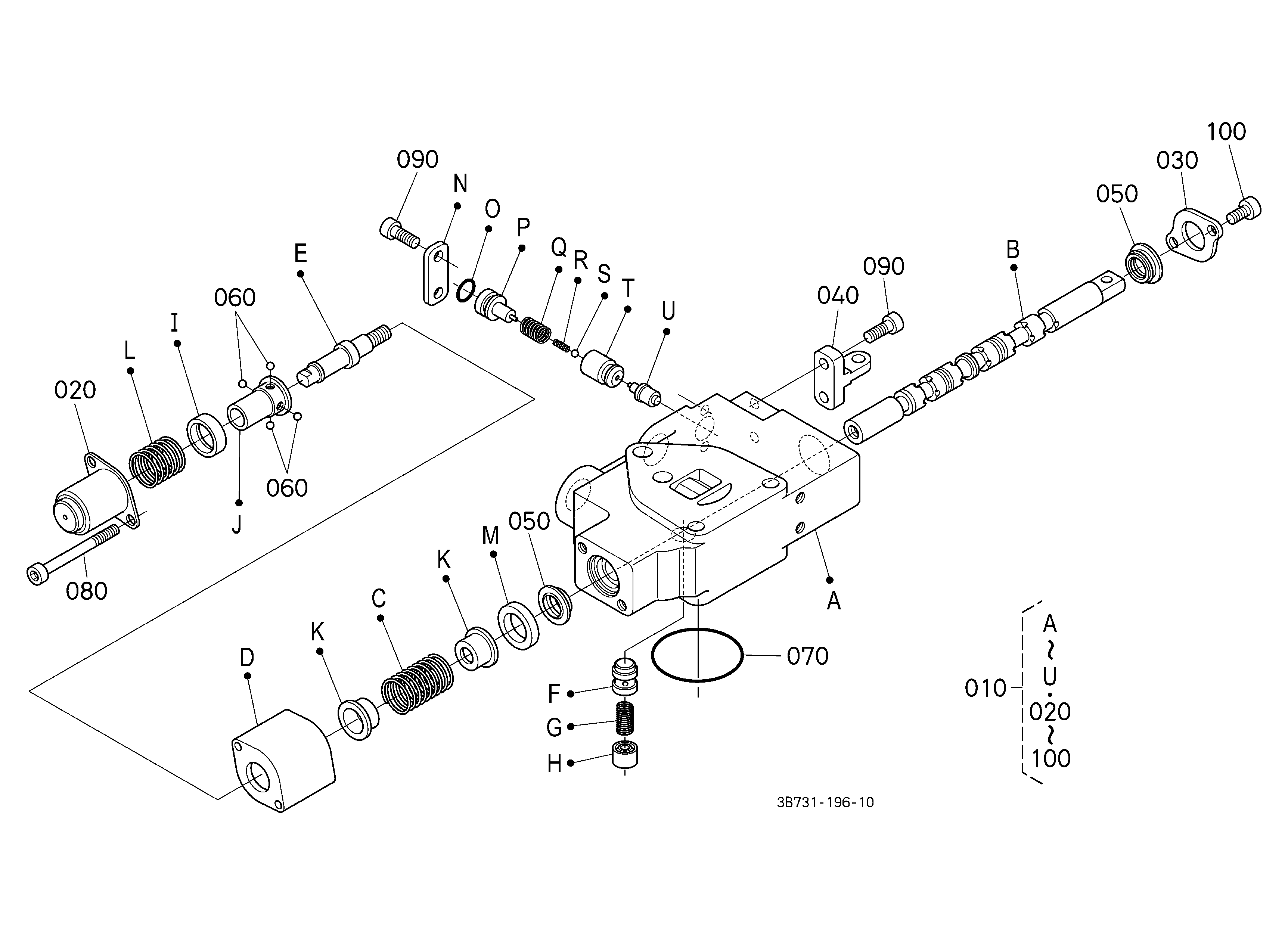

Exploded-view parts diagram "C11100 SHUTTLE VALVE" for the Kubota M5L-111. 9 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | VALVE,ASSY(SHUTTLE) YW653-00102 YW653-00109 | 1 | $3,522.30 | |||
| 020 | O-Ring Seal 04810-00090 04817-00090 | 1 | $1.07 | |||
| 030 | O-Ring Seal 04810-00120 04817-00120 | 1 | $2.50 | |||
| 040 | PLUG 15521-96022 15521-96020 | 1 | $3.35 | |||
| 050 | STUD 01513-50850 | 1 | $2.01 | |||
| 060 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 070 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 080 | BOLT 01120-50855 01123-50855 | 1 | $2.07 | |||
| 090 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
Showing 1 to 9 of 9 parts
