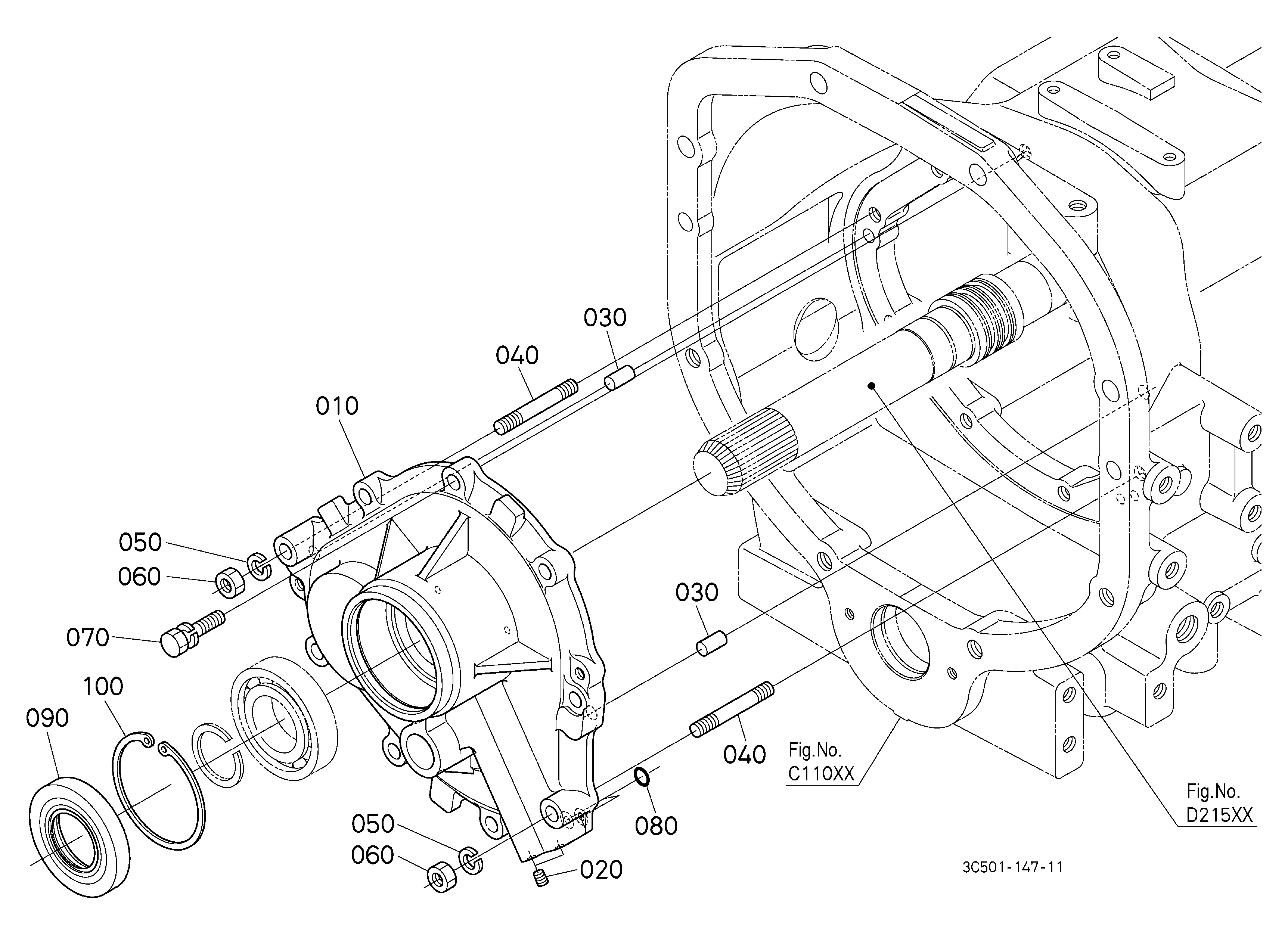

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY HOUSING, CL 3C211-21100 | 1 | $4,873.16 | |||
| 010 | ASSY HOUSING, CL 3C231-21100 3C231-21102 | 1 | $7,460.87 | |||
| 010 | ASSY HOUSING,CLU 3C251-21100 3C251-21103 | 1 | $5,550.92 | |||
| 030 | PIN 05012-01018 | 1 | $1.51 | |||
| 040 | PLUG 06331-35016 | 1 | $3.61 | |||
| 050 | Seal Washer 04717-01610 | 1 | $2.93 | |||
| 060 | PLUG 06331-35012 | 1 | $3.15 | |||
| 070 | Seal Washer 04717-01200 | 1 | $2.26 | |||
| 080 | PIN, STRAIGHT 05012-01325 | 1 | $2.26 | |||
| 090 | BOLT 01138-51450 | 1 | $5.94 | |||
| 095 | BOLT 01176-51402 | 1 | $5.84 | |||
| 097 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 100 | STUD 36530-93040 | 1 | $15.15 | |||
| 110 | NUT TA240-50240 3C131-21130 | 1 | $5.48 | |||
| 130 | COVER, HOUSING 3C001-21190 | 1 | $70.14 | |||
| 140 | Flange Bolt 01174-51020 01774-51020 | 1 | $3.34 | |||
| 150 | PLUG 33300-90910 | 1 | $1.09 | |||
| 160 | PIPE 3A751-21630 3A751-21632 | 1 | $14.89 | |||
| 170 | PIPE, BREATHER 11486-05510 36330-21200 | 1 | $24.95 | |||
| 180 | ASSY HOLDER 3C001-32300 3C001-32302 | 1 | $360.99 | |||
| 190 | PLUG 32420-67380 | 1 | $3.35 | |||
| 200 | BUSH 08511-02510 | 1 | $7.36 | |||
| 220 | BOLT 01133-51240 | 1 | $2.54 | |||
| 230 | PLUG 31220-14293 31220-14290 | 1 | $1.62 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-C11100-85811 C11100 SHUTTLE VALVE
View Diagram -
DIAG-C11302-85811 C11302 SHUTTLE GEAR CASE
View Diagram -

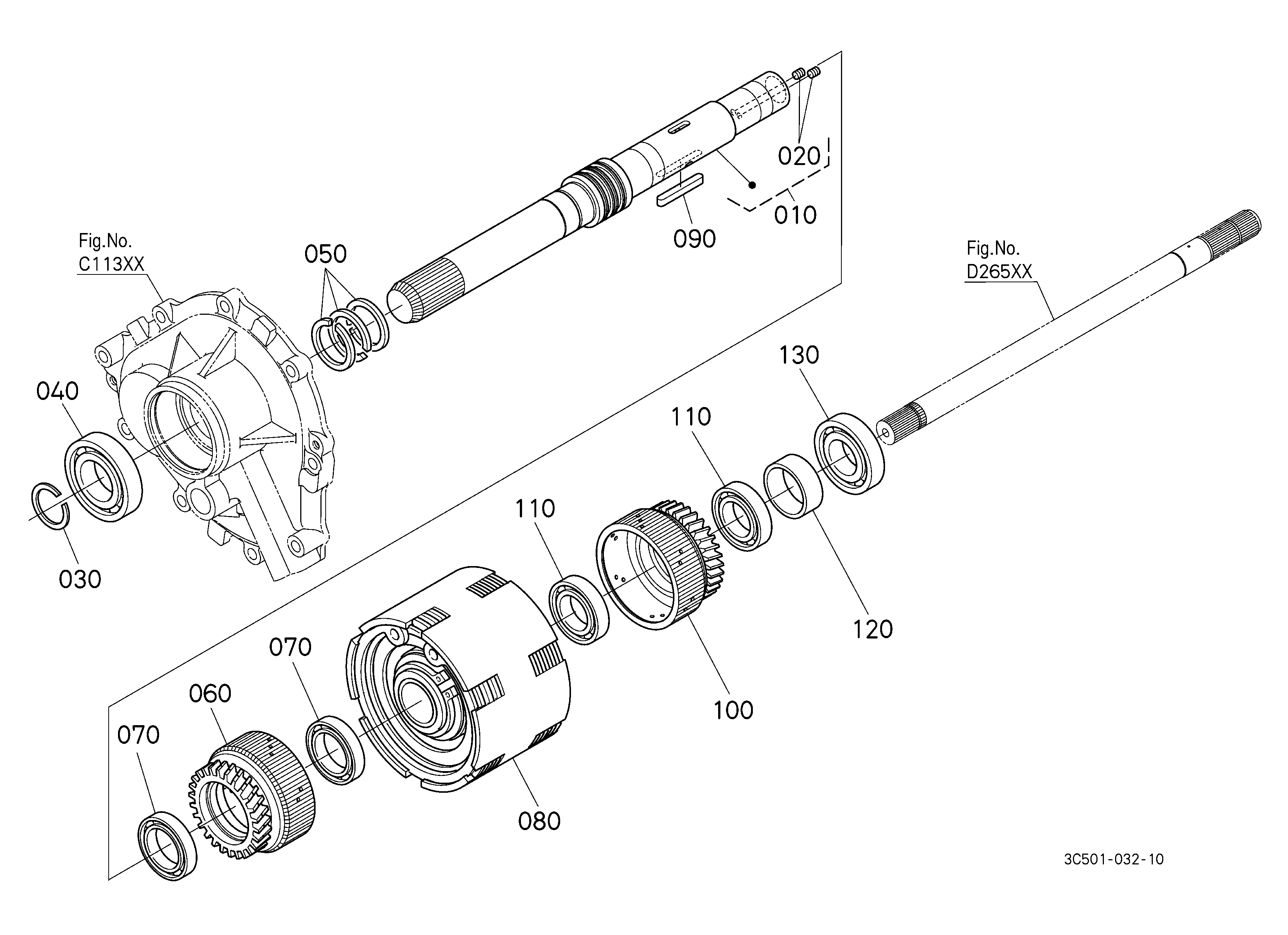

DIAG-D21503-85811 D21503 INPUT SHAFT
View Diagram
