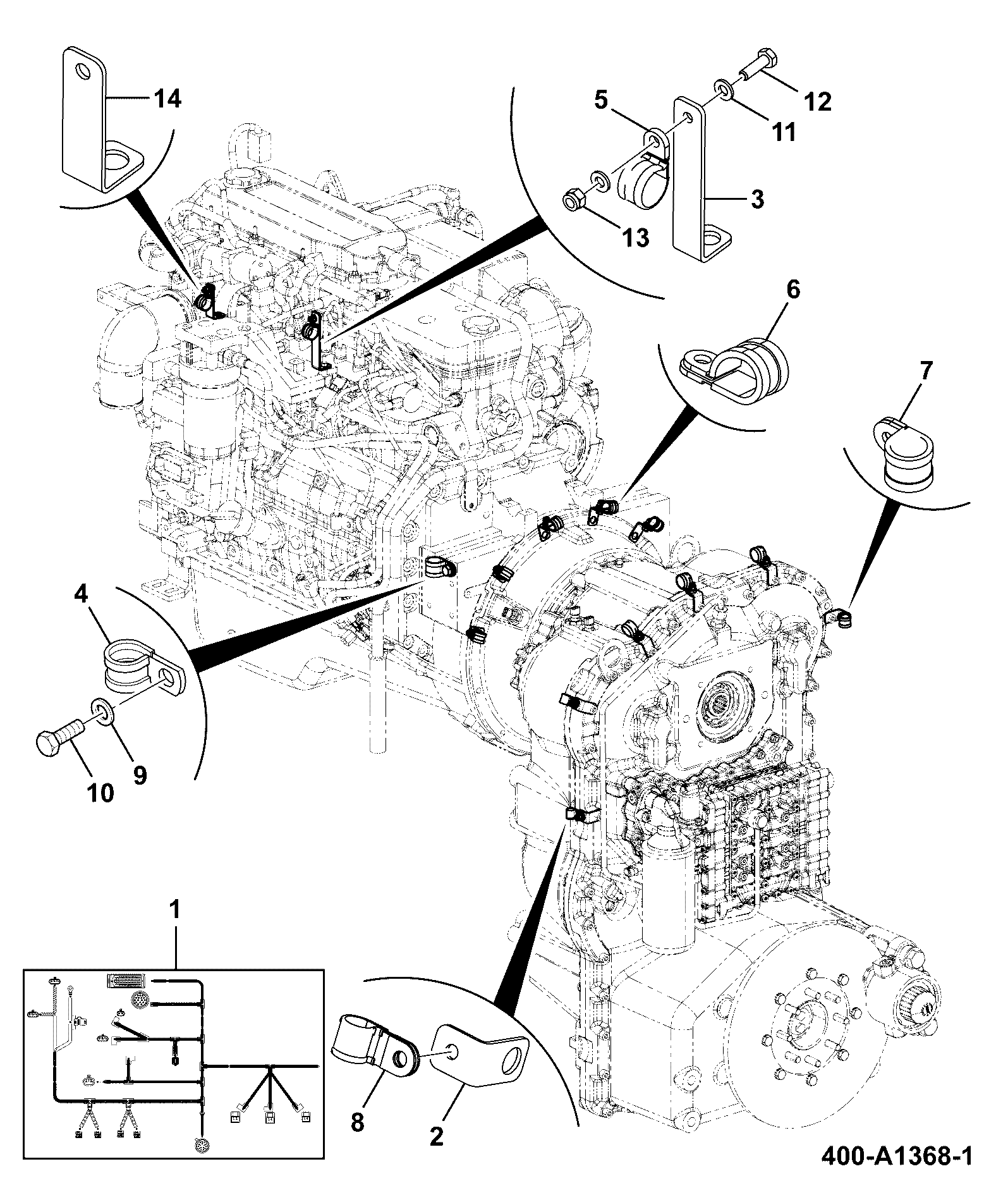

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 2 | P CLIP (FOR 10 O.D. PIPE) 821/00410 | 1 | $16.76 | |||
| 3 | NUT VIBRATION PROOF 826/01277 | 1 | $3.89 | |||
| 4 | (W) P-CLIP - 25mm(KANBAN) 821/00329 | 1 | $6.83 | |||
| 5 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 6 | P-CLIP - 13mm 821/10087 | 1 | $12.69 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | 21/00487 16mm (P545) 826/00864 | 1 | $12.44 | |||
| 9 | 435S REAR CHASSIS HARNESS 400/A1718 | 1 | $1,724.94 | |||
| 10 | SPACER 823/10809 | 1 | $2.78 | |||
| 11 | SET-SCREW M_5 L-_25mm 1315/0107D | 1 | $20.01 | |||
| 12 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 13 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
| 14 | CABLE TIE - BLACK 210mm 826/01453 | 1 | $1.49 | |||
| 15 | REAR CHASSIS GROMMET 336/A1854 | 1 | $4.38 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

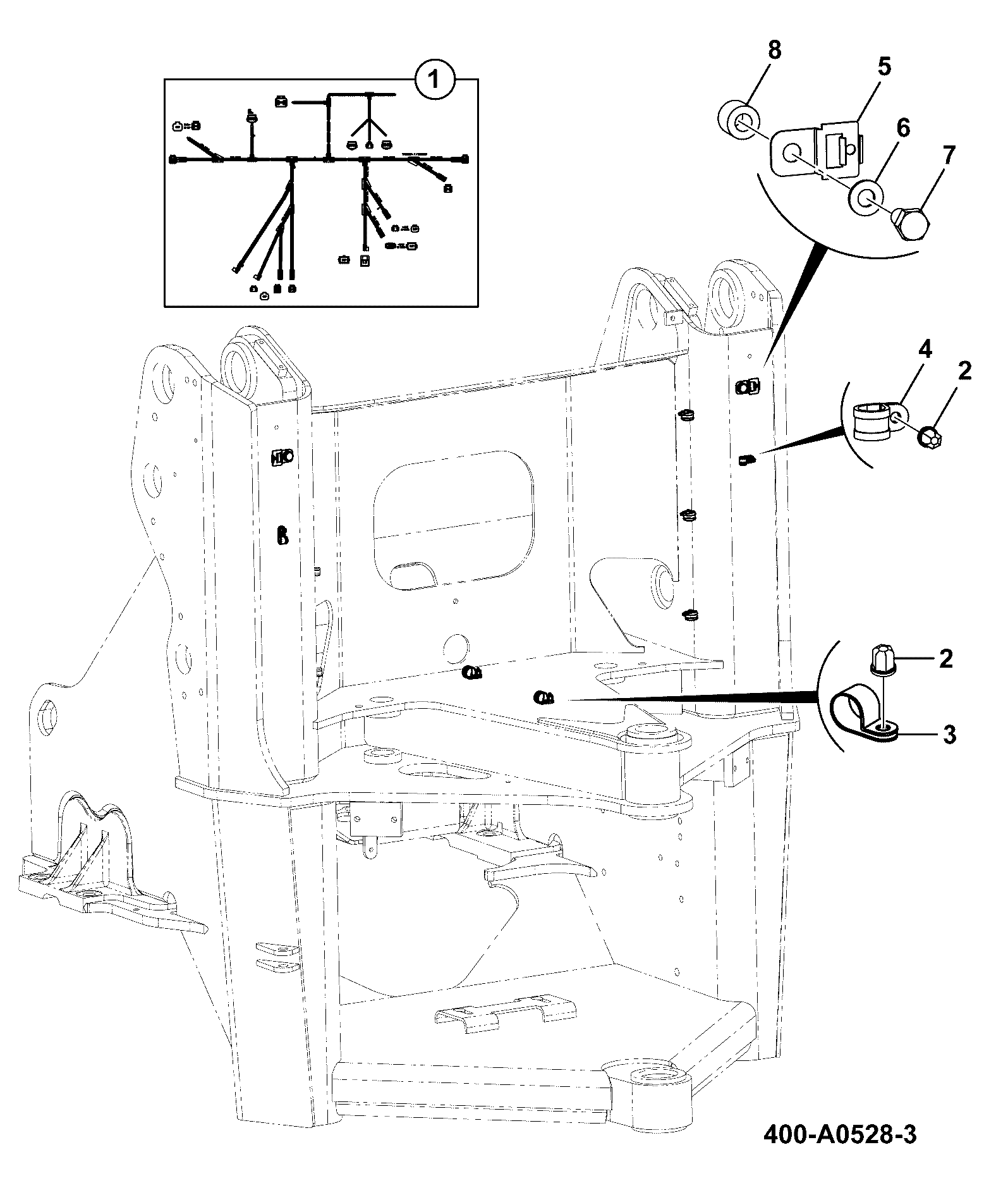

DIAG-C110-35-1-404814-15756080 C110-35-1 HARNESSES FRONT CHASSIS ASSEMBLY
View Diagram -
DIAG-C110-20-1-404814 C110-20-1 HARNESSES ASSEMBLY ENGINE/TRANSMISSION
View Diagram -
DIAG-C110-1-1-404814 C110-1-1 HARNESSES ASSEMBLY AFTER TREATMENT
View Diagram
