C110-40-5 HARNESSES CAB OS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

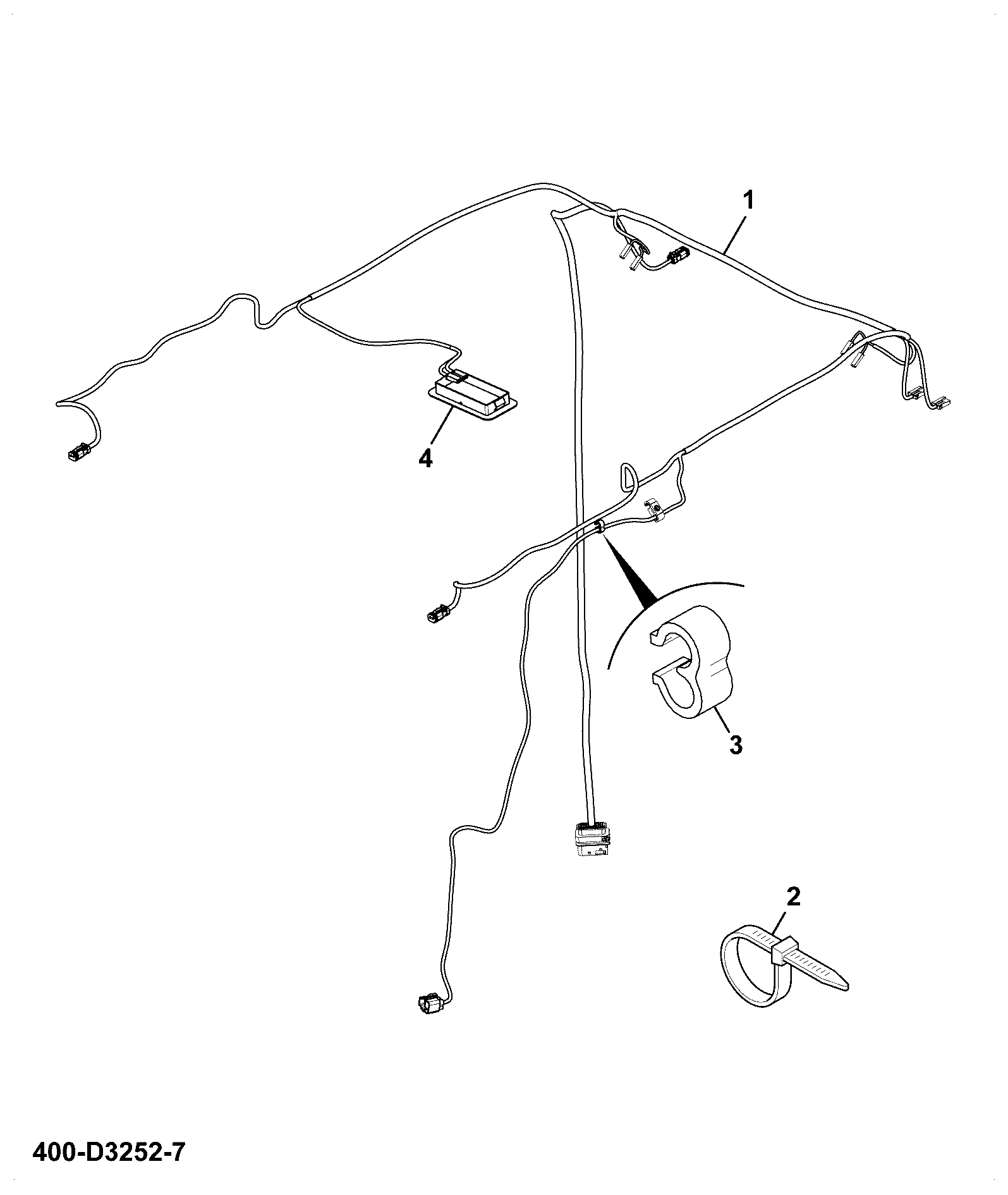

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CAB HARNESS (P511) 401/D9608	1	AVAILABLE TO ORDER	$180.15	Quantity
2	CABLE TIE - BLACK 200mm 826/01144	1	AVAILABLE TO ORDER	$0.20	Quantity
3	FLOATING SPACER CLIP DOUBLE (P511) 400/J4402	1	AVAILABLE TO ORDER	$1.88	Quantity
4	INTERIOR LAMP 12V 700/20500	1	AVAILABLE TO ORDER	$21.97	Quantity

Showing 1 to 4 of 4 parts

DIAG-C110-40-1-397469 C110-40-1 HARNESSES CAB OS
View Diagram
DIAG-C120-1-1-397469 C120-1-1 BATTERY ASSEMBLY
View Diagram
DIAG-C110-20-1-397469 C110-20-1 HARNESSES CANOPY
View Diagram

Previous Assembly DIAG-C110-40-1-397469 C110-40-1 HARNESSES CAB OS Next Assembly DIAG-C120-1-1-397469 C120-1-1 BATTERY ASSEMBLY
