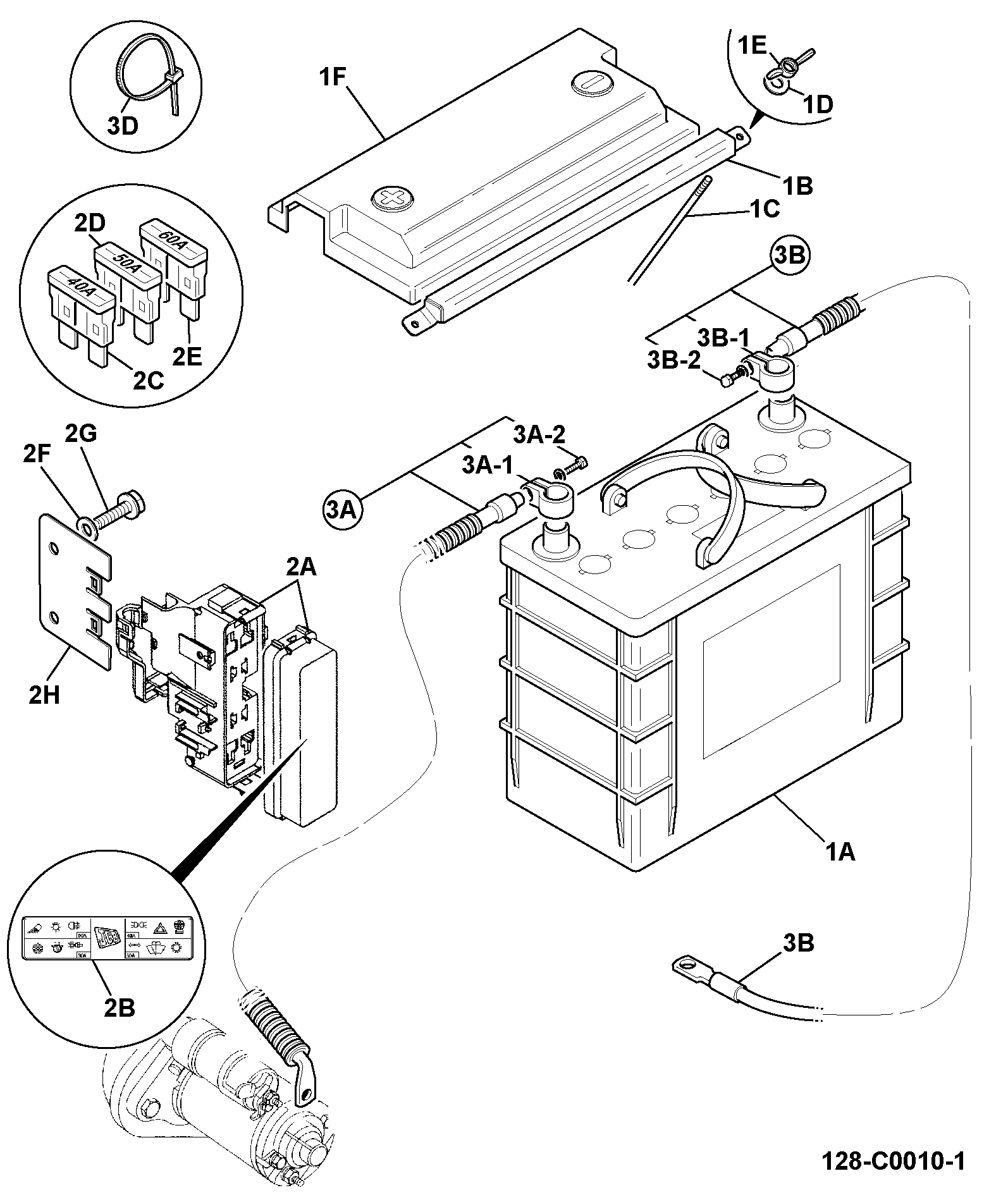

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1B | WA CLAMP battery T 128/E7467 | 1 | $102.78 | |||
| 1C | J-BOLT M6x250mm 332/C6514 | 1 | $11.63 | |||
| 1D | WASHER 1/4 MEDIUM PLAIN 1411/0001Z | 1 | $0.14 | |||
| 1E | WING-NUT M6 826/01115 | 1 | $1.52 | |||
| 1F | COVER ; BATTERY 708/10061 | 1 | $86.00 | |||
| 2A | BOX 4 WAY ( 4 peice kit) 716/30077 | 1 | $48.51 | |||
| 2B | LABEL fuselink box 817/17068 | 1 | $34.16 | |||
| 2C | (W) MAXIFUSE - 40A 716/15900 | 1 | $18.73 | |||
| 2D | FUSE 50 AMP 716/30081 | 1 | $12.61 | |||
| 2E | FUSE.60 AMP. 716/16400 | 1 | $12.32 | |||
| 2F | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 2G | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 2H | MOUNT fuse link box 331/42169 | 1 | $11.63 | |||
| 2I | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 3A | BATTERY ISOLATOR 701/47400 | 1 | $104.42 | |||
| 3A | ISOLATER SWITCH 701/80552 | 1 | $316.00 | |||
| 3A-1 | KEY 701/47401 | 1 | $36.81 | |||
| 3A-1 | KEY isolator switch 701/80553 | 1 | $67.19 | |||
| 3B | CAP SCREW M8 x 25 G12.9 1391/3307Z | 1 | $1.73 | |||
| 3C | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 3D | COVER BATTERY ISOLATOR 4 265/00893 402/U0386 | 1 | $144.55 | |||
| 3E | BATTERY LEAD +ve 1600mm 718/20216 | 1 | $332.41 | |||
| 3E-1 | Terminal battery l__ 998/10927 998/11023 | 1 | $24.89 | |||
| 3E-2 | BOLT ASSY 998/10912 | 1 | $10.71 | |||
| 3F | BATTERY LEAD -ve 230mm 70 333/E5067 | 1 | $61.78 | |||
| 3F | BATTERY LEAD -ve 400mm 70 332/D7911 | 1 | $111.69 | |||
| 3F-1 | BATTERY CLAMP HC NEG 7208/1007 | 1 | $17.06 | |||
| 3G | BATTERY LEAD -ve 1800mm 718/20322 | 1 | $117.25 | |||
| 3H | CABLE TIE 190mm 826/01347 | 1 | $3.37 | |||
| 3I | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 3J | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 4 | DECAL BATTERY ISOLATOR 817/01452 | 1 | $2.08 | |||
Showing 1 to 32 of 32 parts
