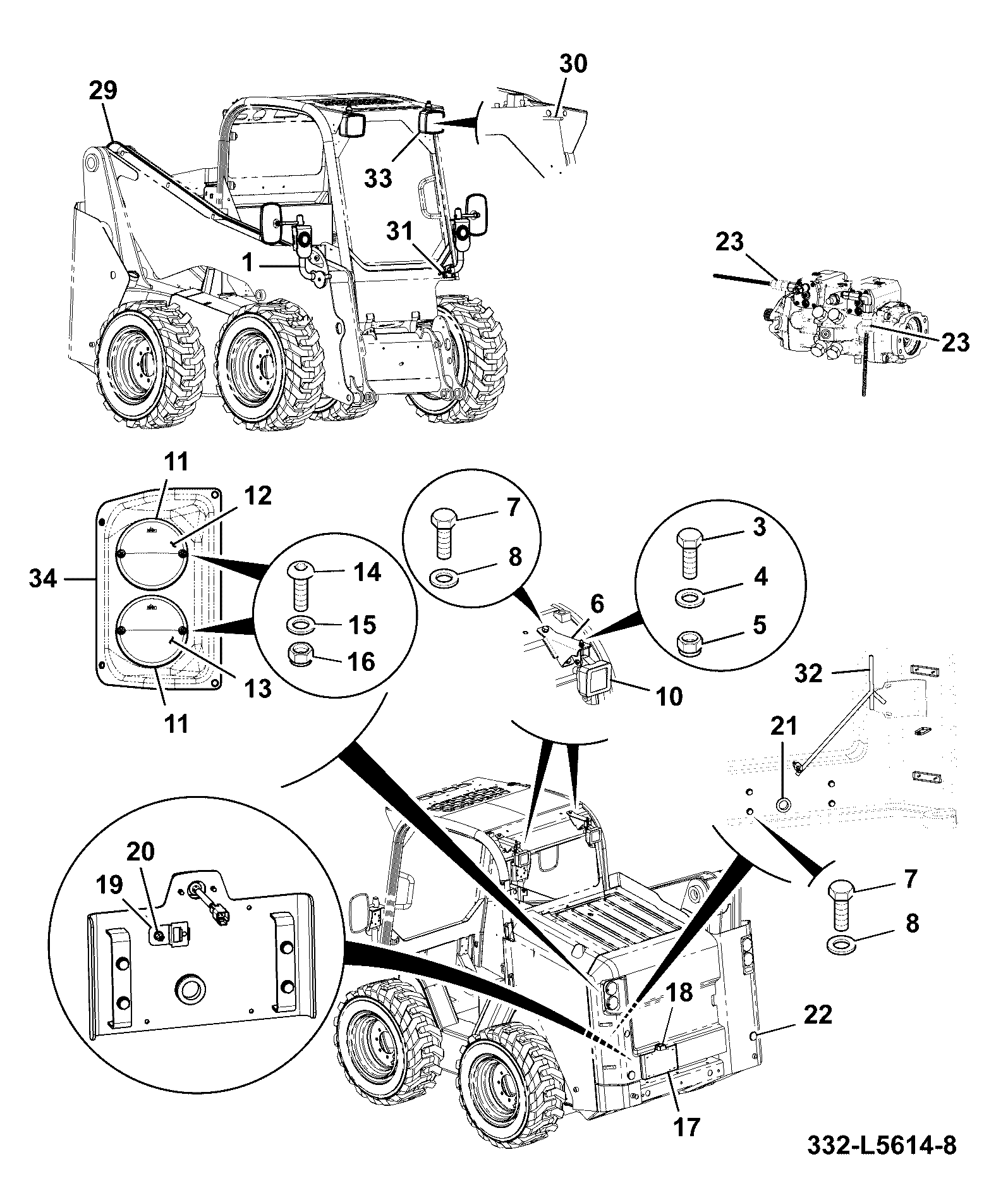

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | WORKLIGHT 12V SP PENDANT VOLVO 332/L4812 | 1 | $47.23 | |||
| 5 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 6 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 7 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | STOP TAIL REAR LED 95 O/D 332/X4146 | 1 | $176.42 | |||
| 10 | INDICATOR REAR LED 95 O/D 332/X4147 | 1 | $127.02 | |||
| 11 | SET-SCREW M_4 L-_16mm PAN HD 826/01411 | 1 | $1.64 | |||
| 12 | WASHER M4 PLAIN 1420/0004Z | 1 | $0.68 | |||
| 13 | NUT M4 STD PLAIN 1370/9401Z | 1 | $0.50 | |||
| 14 | WA MNT-NUMBER PLATE (VOLVO GREY) 332/X4267 | 1 | $110.37 | |||
| 15 | '12V LIGHT NUMBER PLATE - 868.69.12V.JCB 700/50127 | 1 | $20.78 | |||
| 16 | DEUTSCH DT MNTG CLIP 7210/0067 | 1 | $26.59 | |||
| 17 | NUT VIBRATION PROOF 826/01277 | 1 | $3.89 | |||
| 18 | GROMMET 2410/0313 | 1 | $7.34 | |||
| 19 | RED REFLECTOR SELF ADHESIVE 700/50004 | 1 | $17.88 | |||
| 20 | PRESSURE SWITCH 4 BAR N/C (565571) 701/80351 | 1 | $113.76 | |||
| 26 | HARNESS-RH LIGHTS 721/X1787 | 1 | $97.43 | |||
| 27 | HARNESS-LIGHT ADAPTER 721/X1788 | 1 | $18.26 | |||
| 28 | HARNESS-LEFT FRONT LIGHTS 721/X1786 | 1 | $56.31 | |||
| 29 | HARNESS-LEFT REAR LIGHTS 721/X1796 | 1 | $49.00 | |||
| 30 | HEADLIGHT M120 VERT 12V NO DI DT 700/50028 700/M1932 | 1 | $216.04 | |||
| 31 | HOUSING-REAR LIGHT (VOLVO GREY) 332/X4032 | 1 | $79.77 | |||
| 33 | ADAPTOR -04M/-06F 332/X2005 334/L0549 | 1 | $9.87 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-C100-15-10-395352 C100-15-10 ELECTRICAL INSTALLATION ASSEMBLIES ROAD LAMPS RIGHT SIDE,DIP,VOLVO,NO A/C
View Diagram -
DIAG-C100-15-5-395352 C100-15-5 ELECTRICAL INSTALLATION ASSEMBLIES ROAD LAMPS RIGHT SIDE,DIP,VOLVO,NO A/C
View Diagram -
DIAG-C120-5-1-395352 C120-5-1 BATTERY ASSEMBLY HD, LP, WITH ISOLATOR,VOLVO
View Diagram
