| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BATTERY TERMINAL COVER 331/40330 | 1 | $44.16 | ||||
| Bolt 1/4"UNC 331/64594 | 1 | $2.38 | ||||
| SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | ||||
| 1 | BATTERY BOX 335/02325 | 1 | $1,918.85 | |||
| 3 | CLAMP BATTERY 265/00883 | 1 | $215.75 | |||
| 4 | SWING BOLT M6 X 300 826/11131 | 1 | $24.14 | |||
| 5 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 6 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 7 | RETAINING WASHER 826/01242 | 1 | $0.26 | |||
| 8 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 10 | BOLT ASSY 998/10912 | 1 | $10.71 | |||
| 10 | CONNECTOR 717/20205 998/10911 | 1 | $66.11 | |||
| 10 | POSITIVE BATTERY CABLE 718/20348 | 1 | $162.09 | |||
| 11 | CABLE - BATT. TO ISOLATOR 718/56089 | 1 | $69.51 | |||
| 12 | LEAD STARTER 718/20138 | 1 | $131.11 | |||
| 13 | BATTERY LINK 718/56111 | 1 | $180.73 | |||
| 14 | HOSE CLAMP TOP 821/00213 | 1 | $0.55 | |||
| 15 | HOSE CLAMP BASE 821/00214 | 1 | $0.65 | |||
| 16 | HOSE CLAMP INSERT 821/00215 | 1 | $2.62 | |||
| 17 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 18 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 22 | GROMMET P933 2410/0314 | 1 | $13.54 | |||
| 25 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 26 | SET SCREW M12x20 1315/0505D | 1 | $1.20 | |||
| 27 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 28 | SPACER 262/04601 | 1 | $57.46 | |||
| 30 | BATTERY ISOLATOR 701/47400 | 1 | $104.42 | |||
| 30A | KEY 701/47401 | 1 | $36.81 | |||
| 31 | COVER BATTERY ISOLATOR 4 265/00893 402/U0386 | 1 | $144.55 | |||
| 32 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 33 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 34 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-

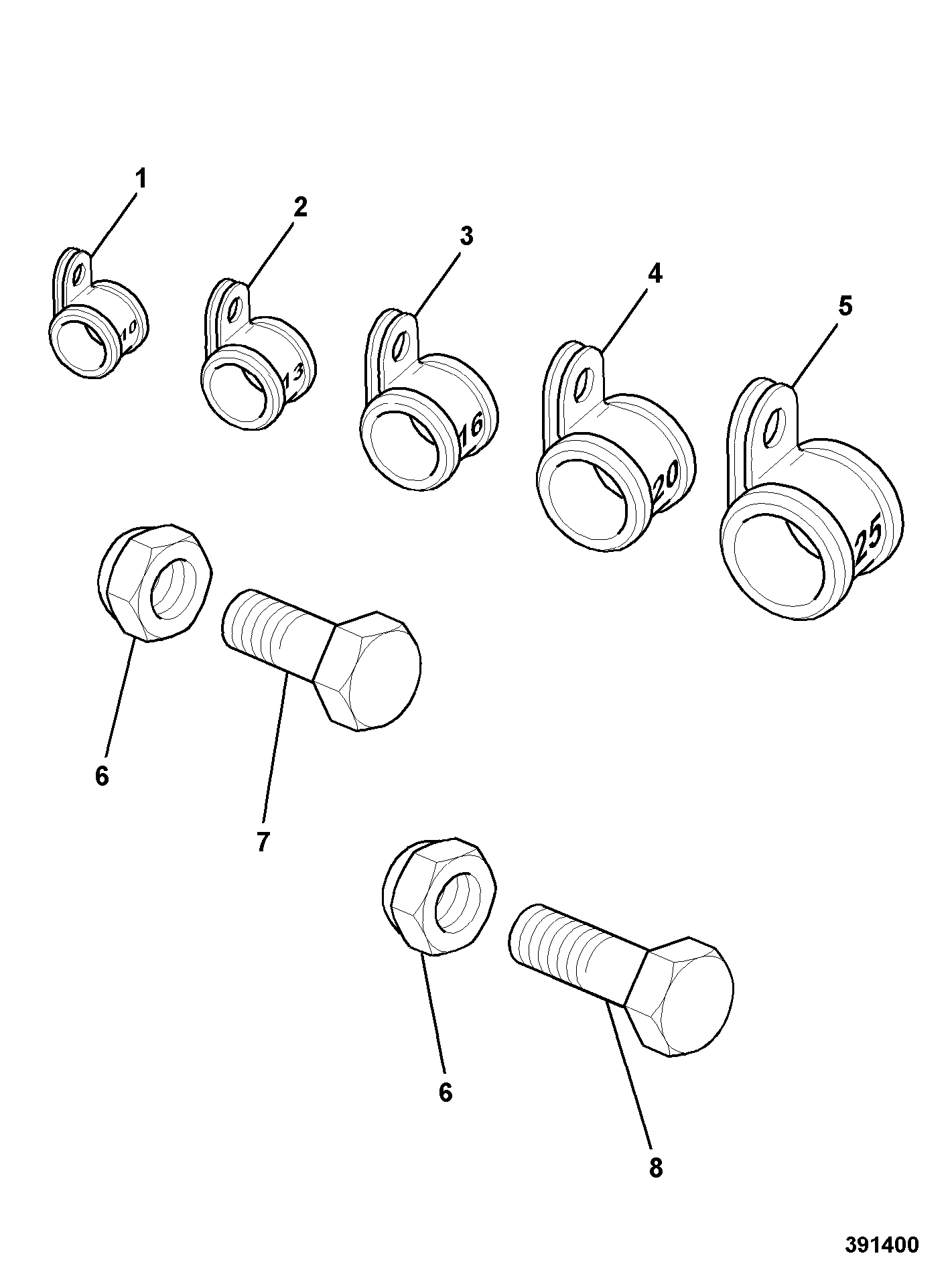

DIAG-C1-8-1-404564 C1-8-1 "P" CLIPS
View Diagram -

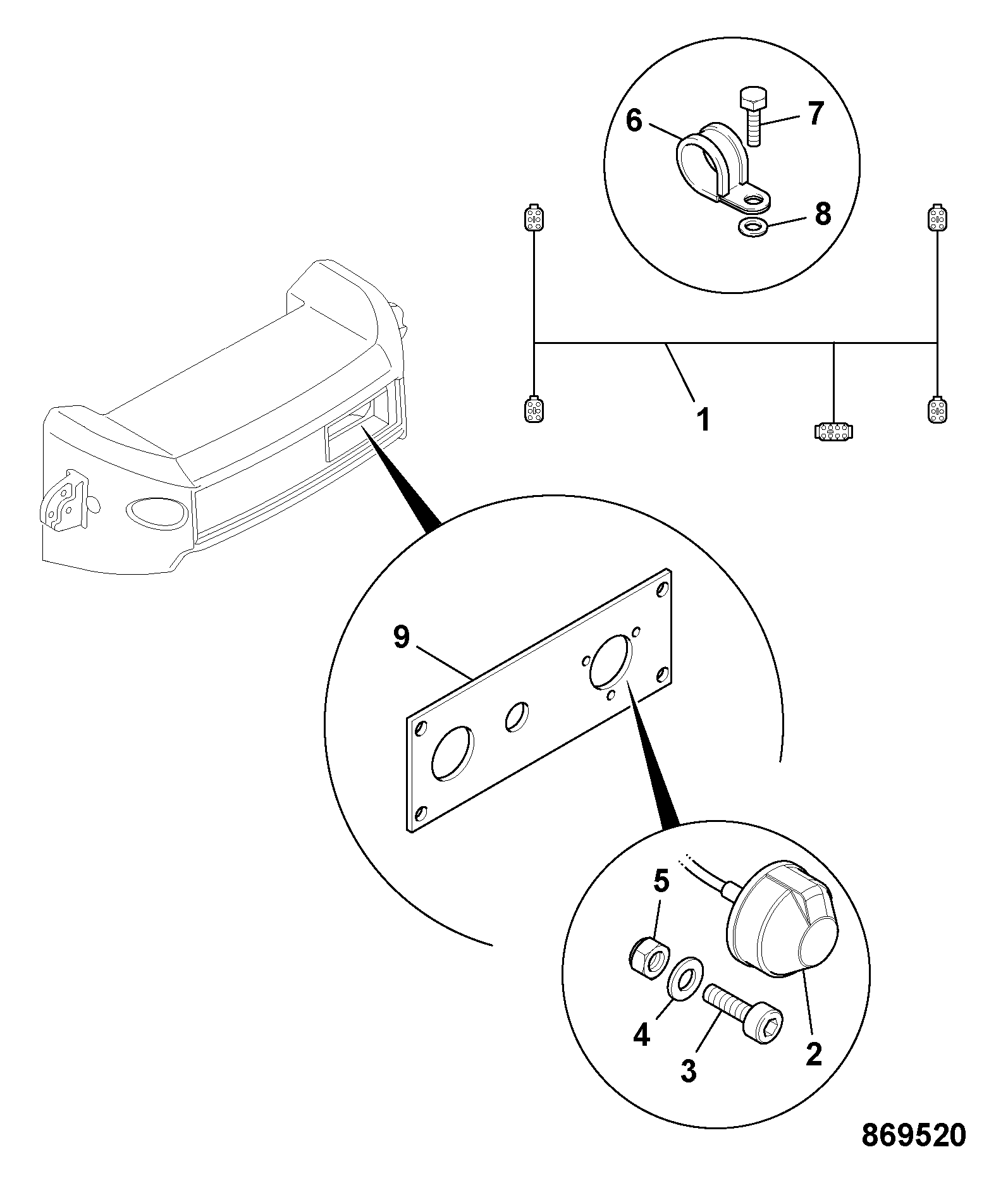

DIAG-C1-4-5-404564 C1-4-5 ELECTRICS, TRAILER 24 VOLT STANDARD COUNTERWEIGHT
View Diagram -

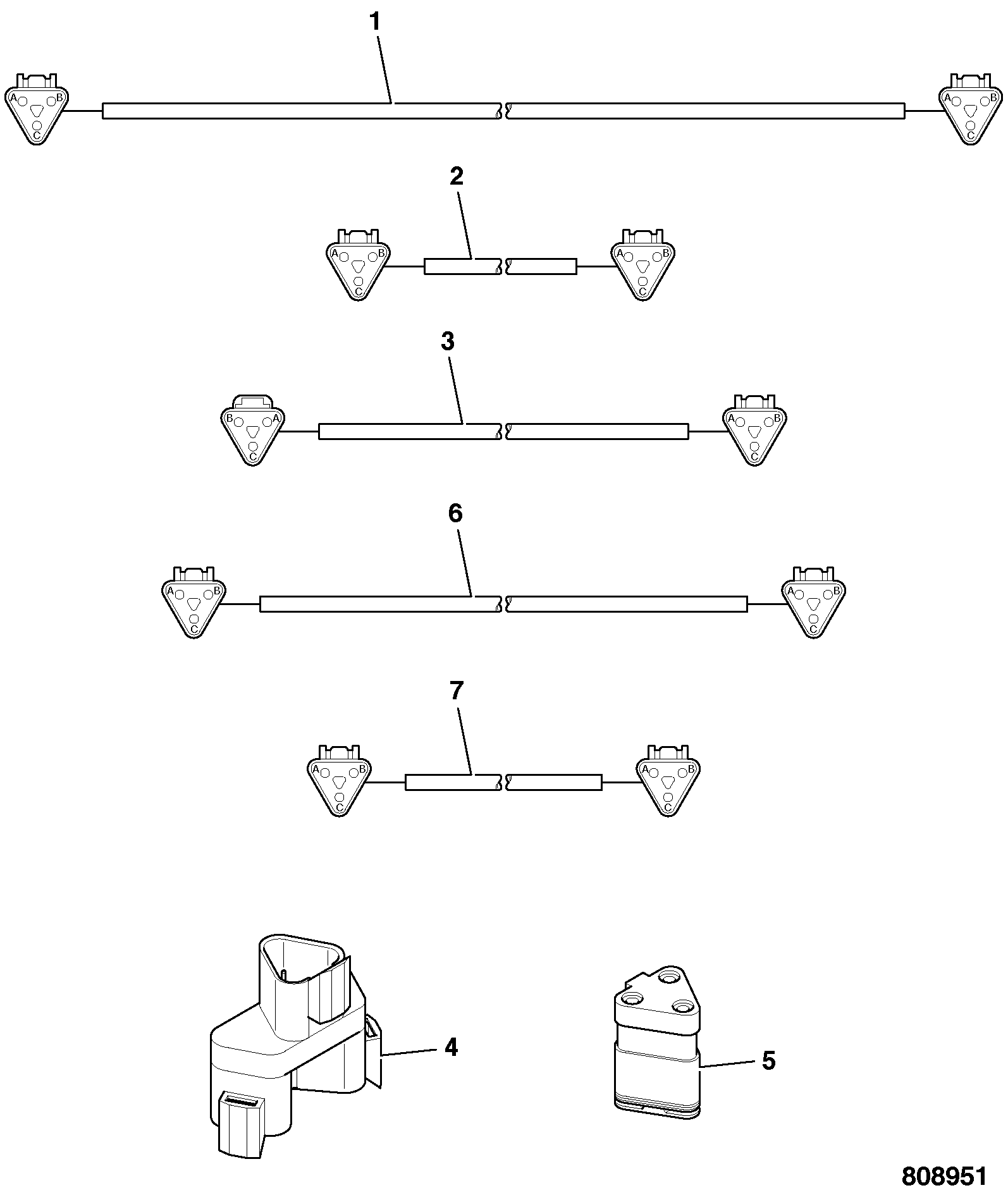

DIAG-C1-1-5-404564 C1-1-5 HARNESSES CONTROL AREA NETWORK (CAN)
View Diagram
