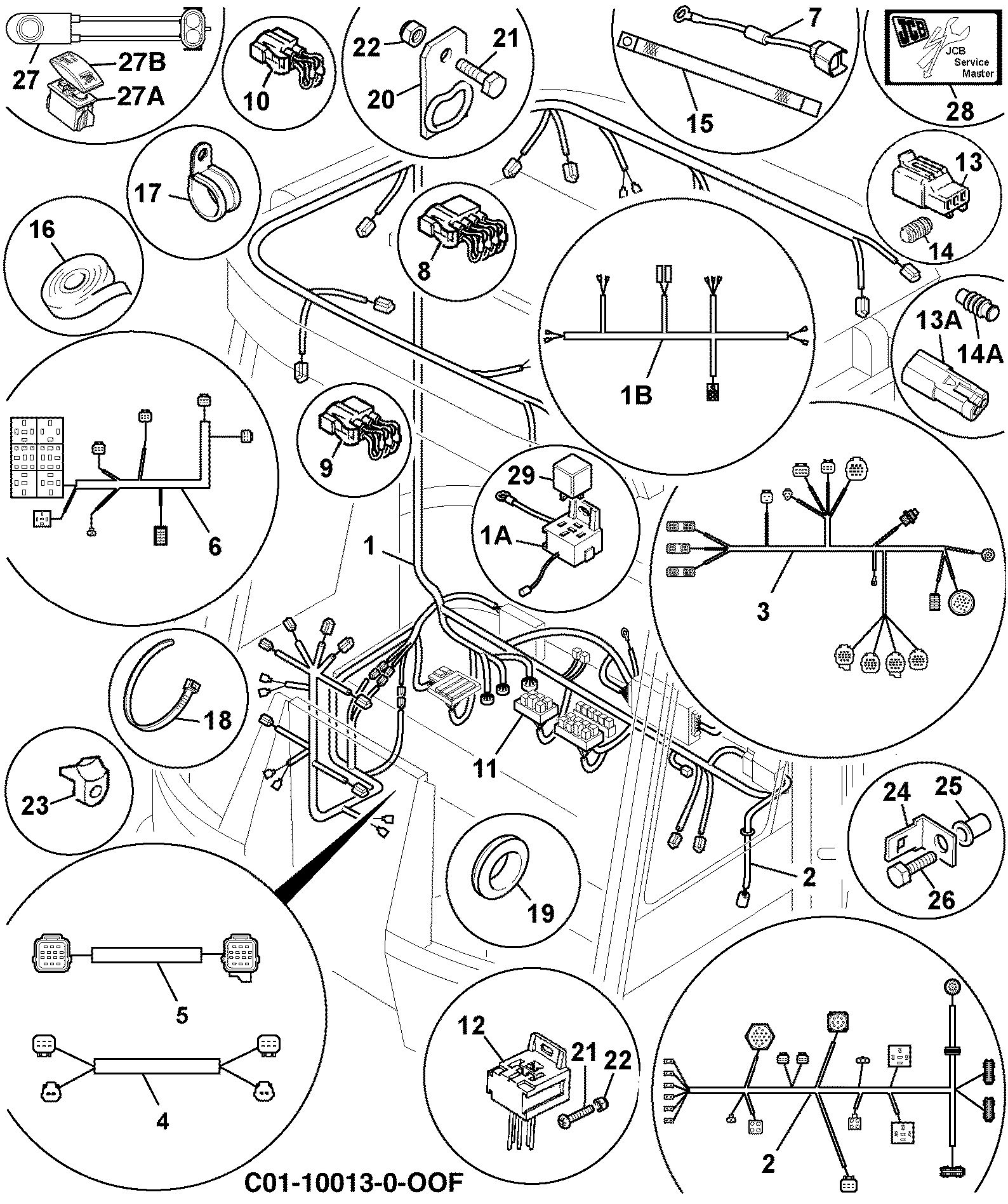

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 250 AMP MEGAVAL 716/30226 | 1 | $70.93 | ||||
| 1 | CAB HARNESS 332/V3609 | 1 | $2,273.24 | |||
| 1 | CAB HARNESS 721/12328 | 1 | $8,453.90 | |||
| 1 | Harness cab 721/12134 | 1 | $9,053.56 | |||
| 1B | HARNESS - ROOF LINER (P137) 721/11453 | 1 | $41.29 | |||
| 2 | ABS HARNESS: CAB 3000 SER 332/V1259 | 1 | $414.40 | |||
| 2 | ABS HARNESS: CAB 3000 SER 721/11984 | 1 | $983.84 | |||
| 3 | CONNECTOR-POWER SWITCHING 721/11561 | 1 | $53.68 | |||
| 4 | Harness extension 721/11183 | 1 | $164.70 | |||
| 5 | Harness extension 721/11184 | 1 | $261.19 | |||
| 6 | Harness auxiliary 721/11241 | 1 | $191.72 | |||
| 7 | CONNECTOR 716/17100 | 1 | $47.30 | |||
| 8 | 3 WAY DT MALE HSG RESISTO 7213/0036 | 1 | $62.60 | |||
| 9 | BLOCK 6WAY RELAY 7231/0003 | 1 | $26.30 | |||
| 10 | SINGLE RELAY BASE | 1 | Price on request | |||
| 11 | 2 WAY HW090 MALE HSG 7212/0002 | 1 | $8.99 | |||
| 12 | CAVITY BLANKING SEAL SUMO (P68) 7210/0001 | 1 | $0.50 | |||
| 13 | EARTH BRAID (300) 718/49600 | 1 | $10.85 | |||
| 14 | Tape adhesive 476/48602 | 1 | $290.58 | |||
| 15 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 16 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 17 | GROMMET 2410/0103 | 1 | $10.02 | |||
| 18 | HARNESS MOUNTING BRACKET - CAB 476/62010 | 1 | $32.57 | |||
| 19 | SCREW M4 X 20 PAN HD. 826/00852 | 1 | $0.30 | |||
| 20 | M4 HEX.NUT 826/00461 | 1 | $2.00 | |||
| 21 | MOUNTING-CABLE TIE 826/01244 | 1 | $2.93 | |||
| 22 | CLIP-90 DEGREE SUMITOMO 264/35003 | 1 | $1.88 | |||
| 23 | RIVET NUT 826/01260 | 1 | $9.01 | |||
| 24 | (W) SCREW 826/01346 | 1 | $0.21 | |||
| 25A | SWITCH 332/R1278 | 1 | $24.67 | |||
| 25B | Actuator switch AB 332/R1265 | 1 | $2.41 | |||
| 26 | DECAL:SERVICE TOOL SOCKET 817/17540 | 1 | $1.43 | |||
| 27 | RELAY - SOLENOID PROTECTION (BR3) 716/09500 | 1 | $8.52 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-C1-3-2-393595 C1-3-2 HARNESSES CHASSIS PLUS BUILD
View Diagram -
DIAG-C1-3-4-393595 C1-3-4 HARNESSES CAB PLUS BUILD
View Diagram -
DIAG-C1-3-1-393595 C1-3-1 HARNESSES CHASSIS STANDARD BUILD
View Diagram
