Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 6 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 7 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | BATTERY ISOLATOR 701/47400 | 1 | $104.42 | |||
| 10 | KEY 701/47401 | 1 | $36.81 | |||
| 19 | BATTERY CLAMP 260/28401 | 1 | $125.69 | |||
| 20 | BOLT SWING 265/00680 | 1 | $25.74 | |||
| 21 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 22 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 23 | EARTH STRAP 707/01000 | 1 | $89.46 | |||
| 24 | BATTERY LEAD -ve 400mm 70 332/D7911 | 1 | $111.69 | |||
| 25 | LEAD BATTERY +VE 718/02700 | 1 | $138.38 | |||
| 29 | 21/00487 16mm (P545) 826/00864 | 1 | $12.44 | |||
| 30 | SET SCREW M5x20 1315/0105Z | 1 | $0.95 | |||
| 31 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 32 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 55 | ANTILUCE FASTENER 259/80601 | 1 | $59.00 | |||
| 56 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 57 | RETAINING WASHER 826/01242 | 1 | $0.26 | |||
| 58 | GROMMET 2410/0111 | 1 | $7.31 | |||
| 59 | STRIP EDGE 30M (ROLL) 926/04800 | 1 | $6.43 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-C1-3-1-404476 C1-3-1 BATTERY & FITTINGS
View Diagram -

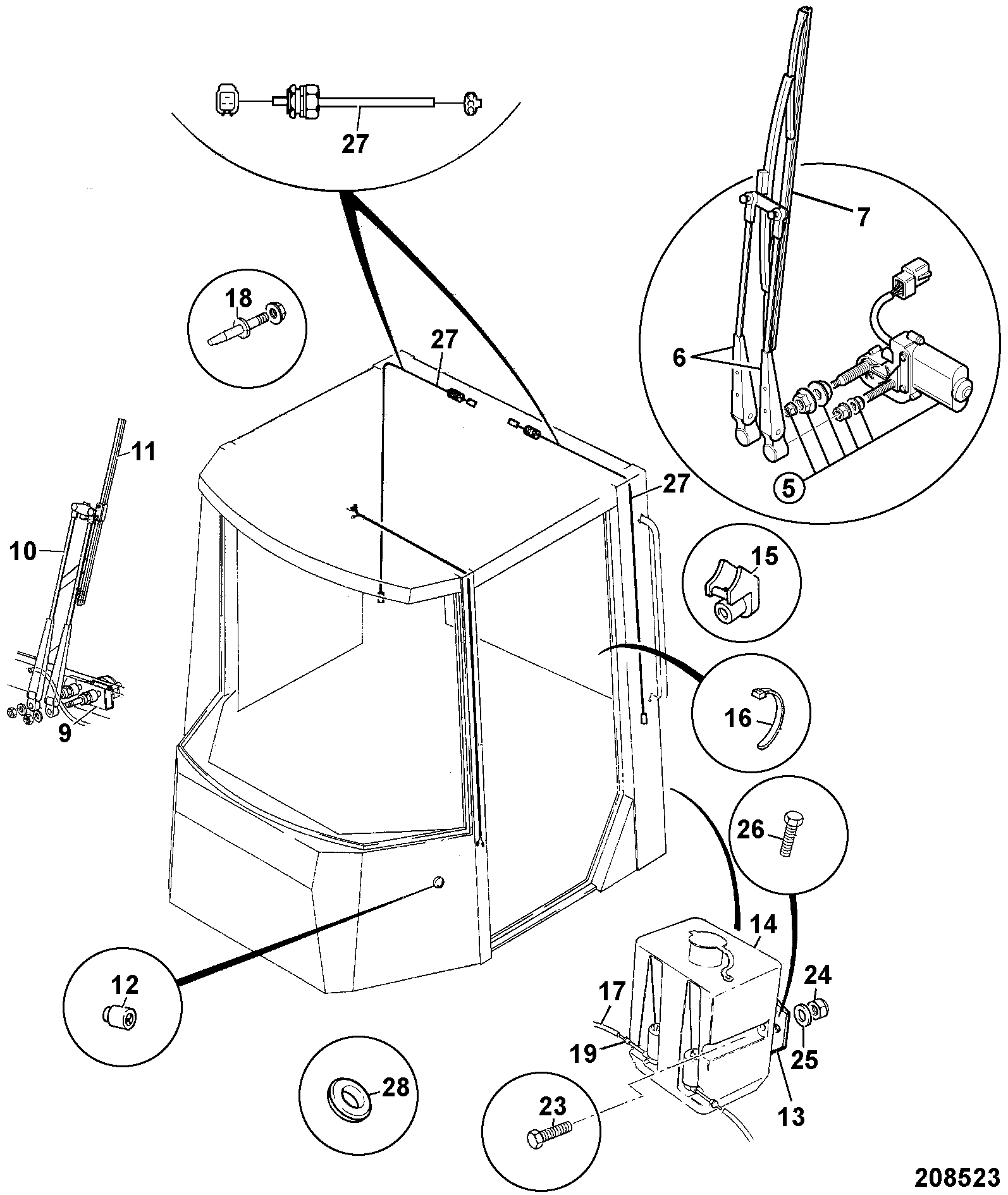

DIAG-C1-4-1-404476 C1-4-1 ELECTRICS CAB
View Diagram -
DIAG-C1-2-3-404476 C1-2-3 INSTRUMENT CLUSTER
View Diagram
