Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COVER BATTERY ISOLATOR 4 265/00893 402/U0386 | 1 | $144.55 | |||
| 6 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | BATTERY ISOLATOR 701/47400 | 1 | $104.42 | |||
| 10 | KEY 701/47401 | 1 | $36.81 | |||
| 16 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 23 | LEAD BATTERY, NEGA 718/56109 | 1 | $71.76 | |||
| 24 | CABLE BATTERY 718/20123 | 1 | $56.71 | |||
| 25 | LEAD 718/20122 | 1 | $106.09 | |||
| 26 | GROMMET 2410/0211 | 1 | $3.46 | |||
| 29 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 30 | SET M5 X 30 HT (P564) 1315/0108Z | 1 | $0.41 | |||
| 31 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 32 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 37 | BATTERY LINK 718/56111 | 1 | $180.73 | |||
| 56 | BATTERY CLAMP 260/28401 | 1 | $125.69 | |||
| 57 | BOLT "L" 826/10704 | 1 | $77.83 | |||
| 58 | RETAINING WASHER 826/01242 | 1 | $0.26 | |||
| 59 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-C1-5-1-404931 C1-5-1 ELECTRICS TRAILER 12 VOLT
View Diagram -

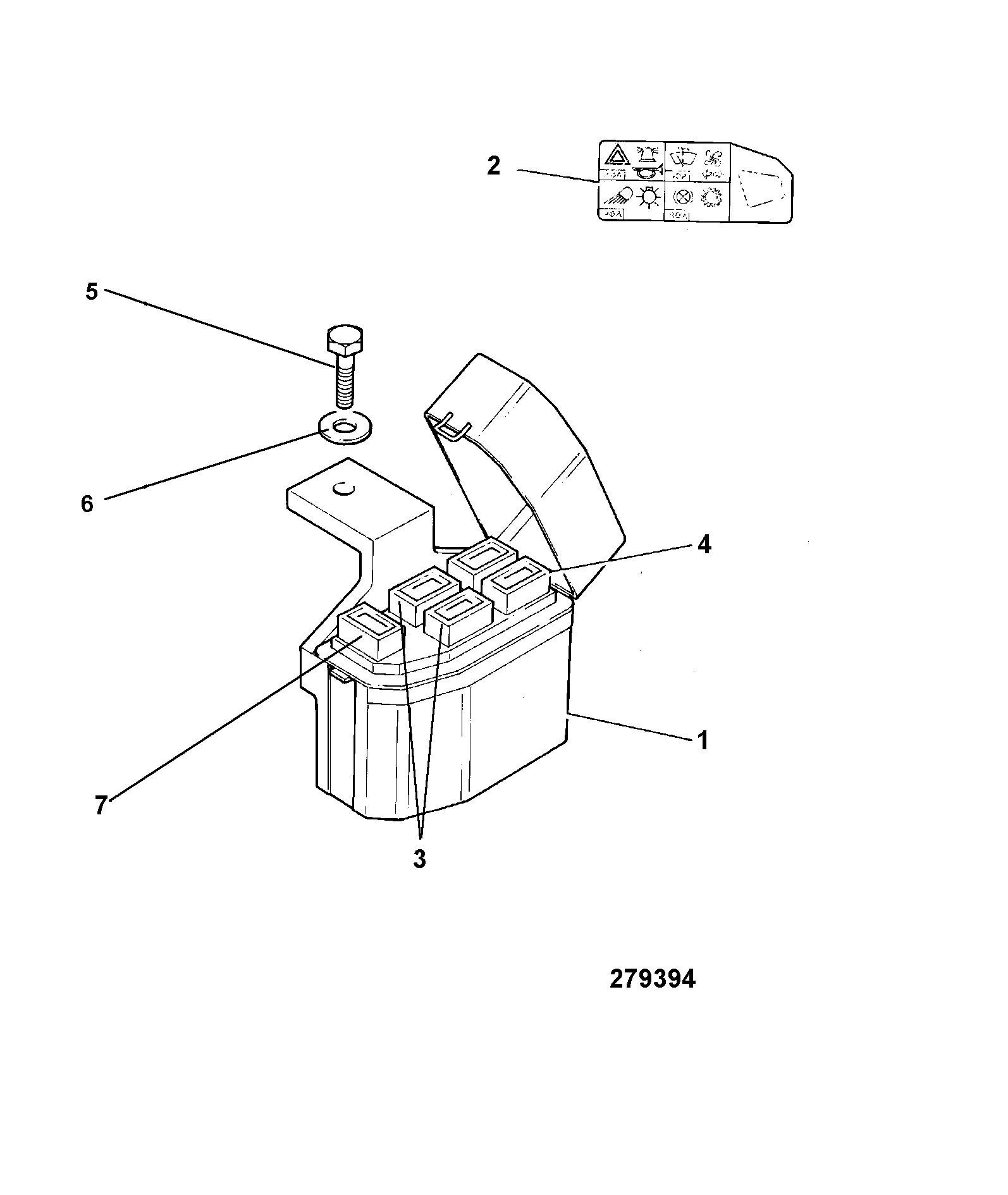

DIAG-C1-6-1-404931-15831069 C1-6-1 FUSES AND RELAYS BATTERY MOUNTED
View Diagram -

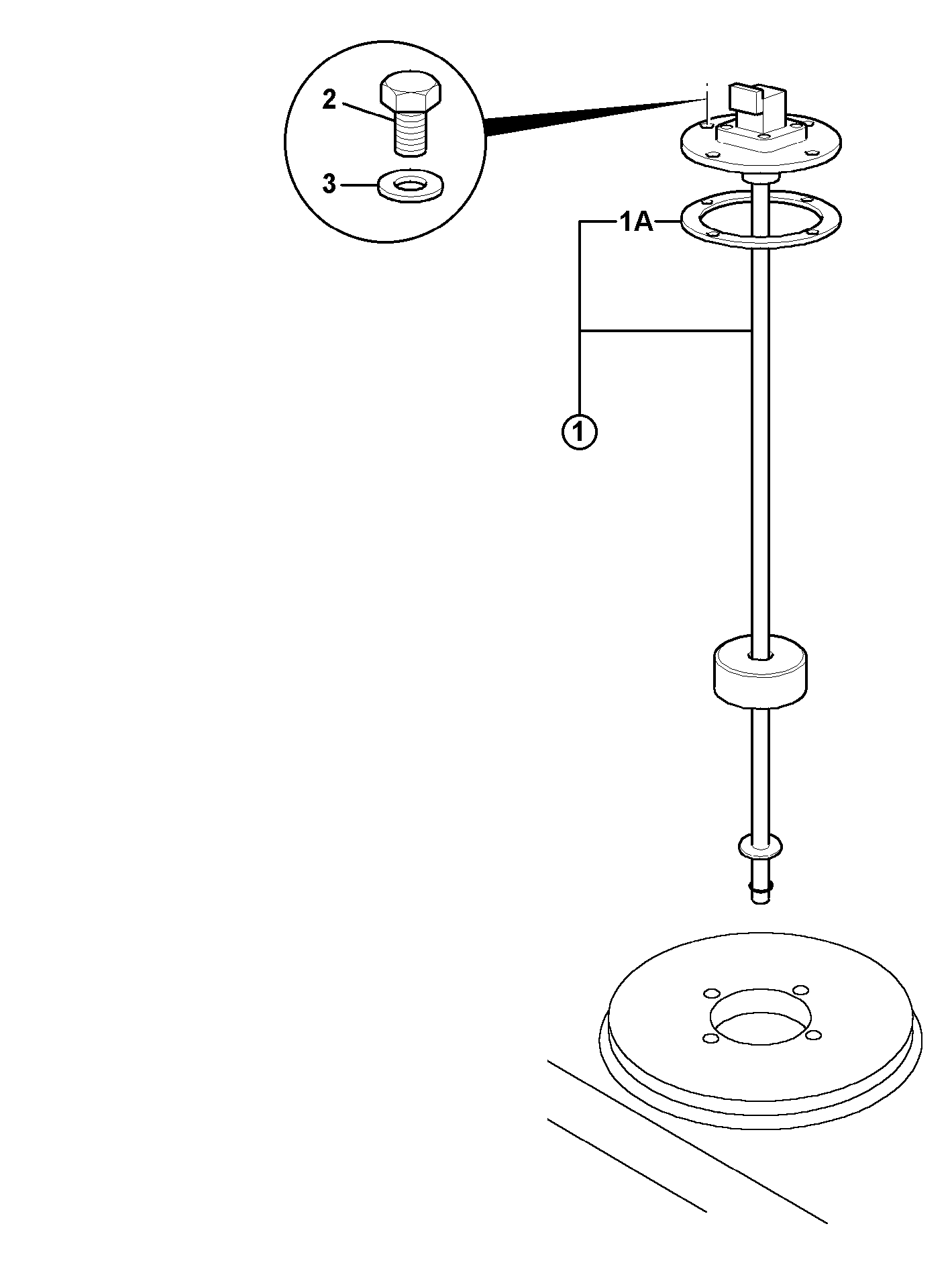

DIAG-C1-7-1-404931 C1-7-1 FUEL SENDER
View Diagram
