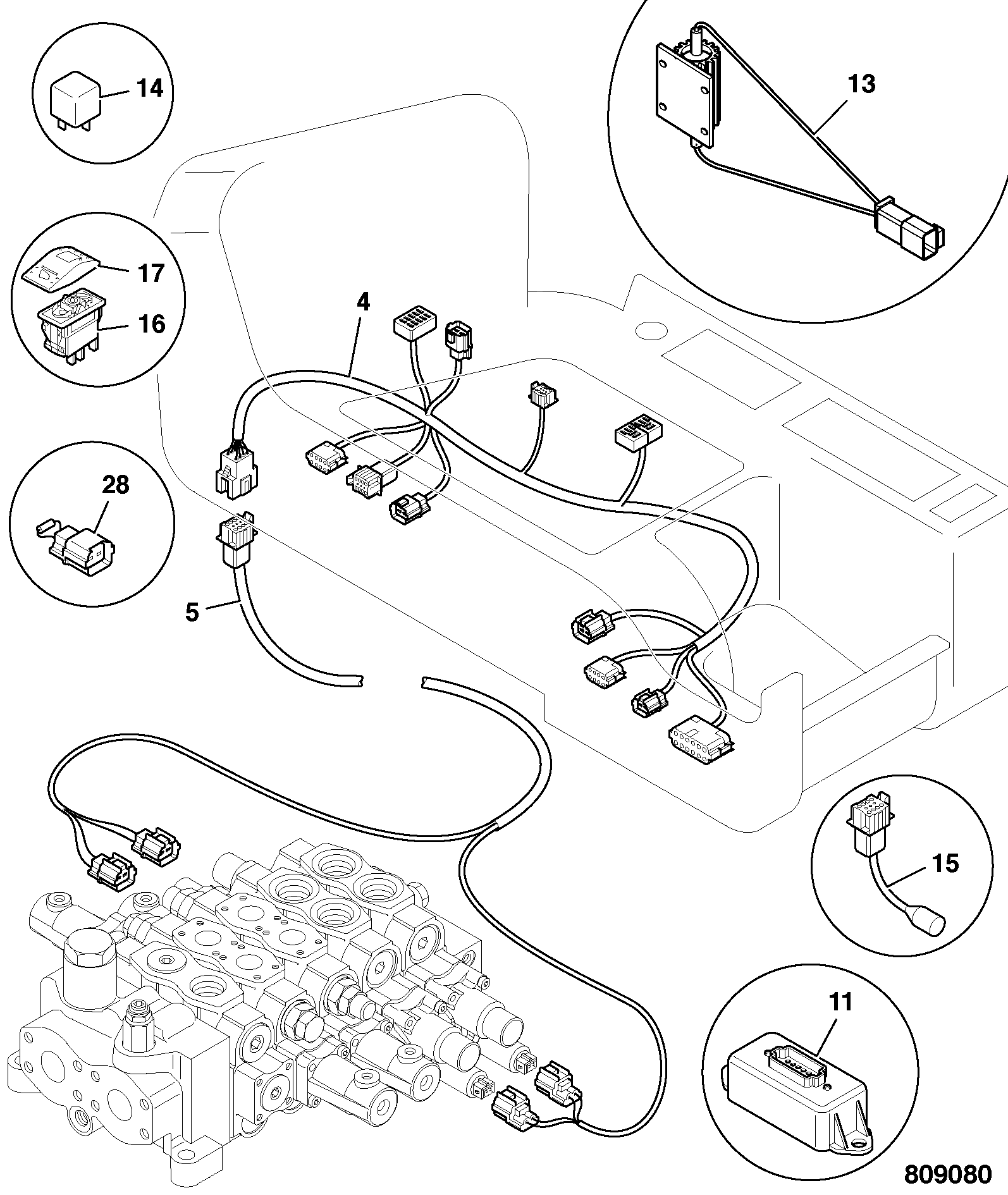

C1-25-1 ELECTRICS AUXILLIARY SOLENOIDS BANG-BANG Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
HARNESS 456 MULTILEVER 721/11967	1	AVAILABLE TO ORDER	$39.19	Quantity
MICRO RELAY 24V 716/30133 333/S5959	1	AVAILABLE TO ORDER	$6.18	Quantity
SWITCH FNR PADDLE 3 POS 701/80530	1	AVAILABLE TO ORDER	$55.60	Quantity

Showing 1 to 3 of 3 parts
