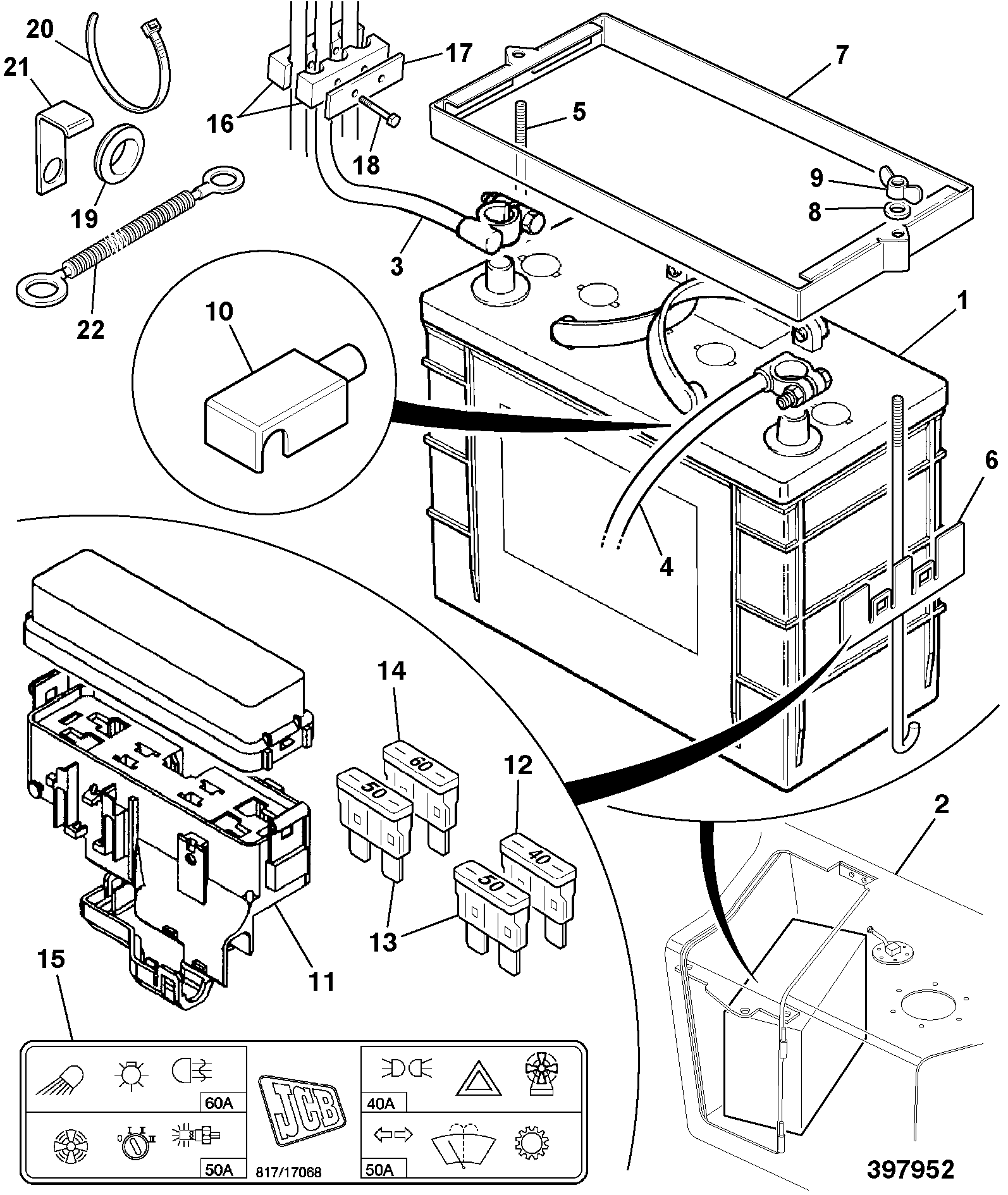

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BATTERY CLAMP 331/35543 | 1 | $34.30 | ||||
| BATTERY CLAMP WA 332/G3398 | 1 | $91.35 | ||||
| BOLT ASSY 998/10912 | 1 | $10.71 | ||||
| CONNECTOR 717/20205 998/10911 | 1 | $66.11 | ||||
| 3 | BATTERY CABLE NEG 1610mm 718/20118 | 1 | $176.88 | |||
| 4 | BATTERY LEAD +ve 1670mm 718/20276 | 1 | $246.42 | |||
| 5 | J-BOLT M6x200mm 826/01798 | 1 | $12.64 | |||
| 6 | BOLT SWING CLAMP 826/10774 | 1 | $70.16 | |||
| 6 | BOLT SWING LINK MOUNT 128/17397 | 1 | $70.28 | |||
| 8 | WASHER 1/4 MEDIUM PLAIN 1411/0001Z | 1 | $0.14 | |||
| 9 | WING-NUT M6 826/01115 | 1 | $1.52 | |||
| 10 | BATTERY TERMINAL COVER 708/10040 | 1 | $60.41 | |||
| 11 | BOX 4 WAY ( 4 peice kit) 716/30077 | 1 | $48.51 | |||
| 12 | (W) MAXIFUSE - 40A 716/15900 | 1 | $18.73 | |||
| 13 | FUSE 50 AMP 716/30081 | 1 | $12.61 | |||
| 14 | FUSE.60 AMP. 716/16400 | 1 | $12.32 | |||
| 15 | LABEL fuselink box 817/17068 | 1 | $34.16 | |||
| 16 | TRIPLE PIPE CLAMP (PAIRS) 821/00487 | 1 | $19.12 | |||
| 17 | PIPE CLAMP COVER 821/00488 | 1 | $20.30 | |||
| 18 | BOLT M6x60 (P785) 1315/3214Z | 1 | $2.00 | |||
| 19 | GROMMET 9.5IDx19OD 2410/0205 | 1 | $4.53 | |||
| 20 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 21 | HARNESS CLIP 123/06759 | 1 | $1.91 | |||
| 22 | FUSE LINK LEAD 375MM 718/20120 | 1 | $24.40 | |||
| 23 | BATTERY ISOLATOR 701/47400 | 1 | $104.42 | |||
| 23 | ISOLATER SWITCH 701/80552 | 1 | $316.00 | |||
| 24 | KEY 701/47401 | 1 | $36.81 | |||
| 24 | KEY isolator switch 701/80553 | 1 | $67.19 | |||
| 25 | MOUNT battery isolator 331/30658 | 1 | $190.05 | |||
| 26 | COVER BATTERY ISOLATOR 4 265/00893 402/U0386 | 1 | $144.55 | |||
| 27 | CAP SCREW M8 x 25 G12.9 1391/3307Z | 1 | $1.73 | |||
| 28 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 29 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 30 | LEAD, BATTERY NEGATIVE 718/20140 | 1 | $113.79 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-
DIAG-C1-2-1-395098 C1-2-1 BATTERY
View Diagram -

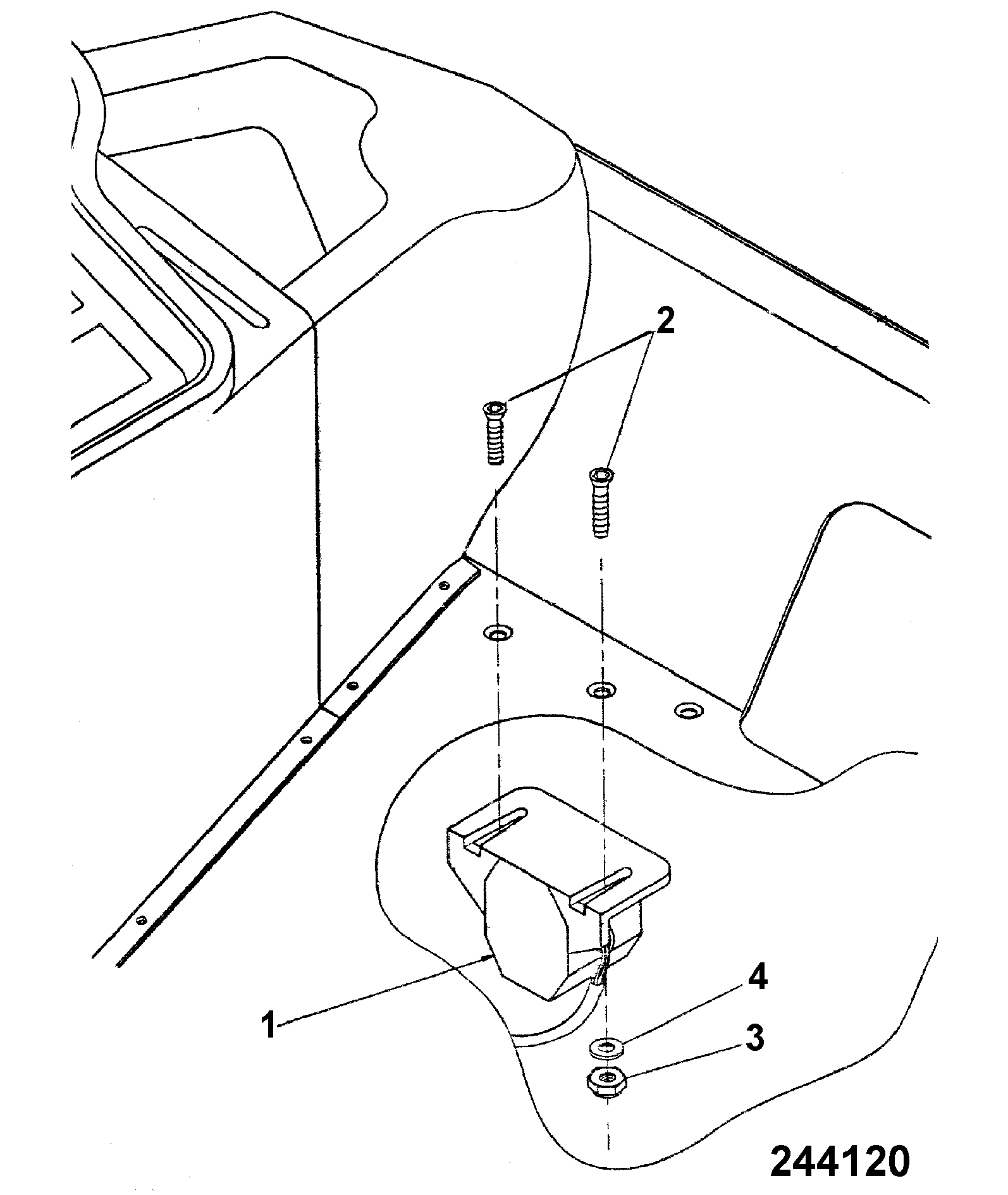

DIAG-C1-1-1-395098 C1-1-1 ALARM, REVERSE EXCAVATORS
View Diagram -
DIAG-B5-6-21-395098 B5-6-21 LABEL, SAFETY
View Diagram
